Cargo security screen: (if equipped)

Use the cargo security screen to hide items stored in the cargo area.

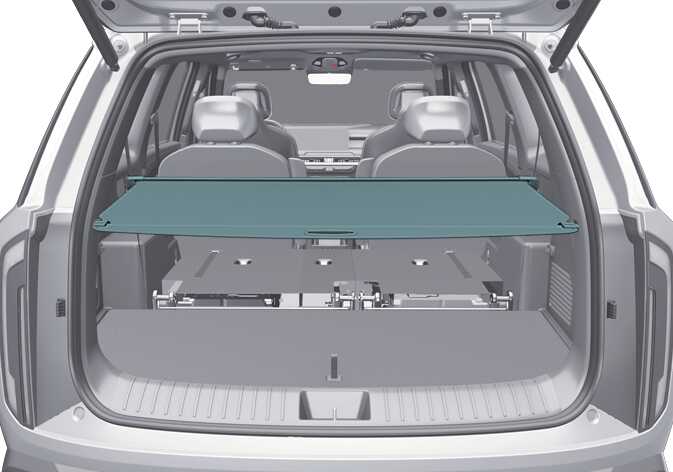

OLQ2A085078
WARNING

  • Never allow anyone to ride in the luggage compartment. It is only for luggage.

  • Maintain the vehicle ’s balance, and adjust the weight of luggage as far forward as possible.

NOTE

Do not put luggage on the cargo security screen, as this may damage the screen. Luggage may also move around inside the vehicle and injure occupants during an accident or when braking.

Using the cargo security screen

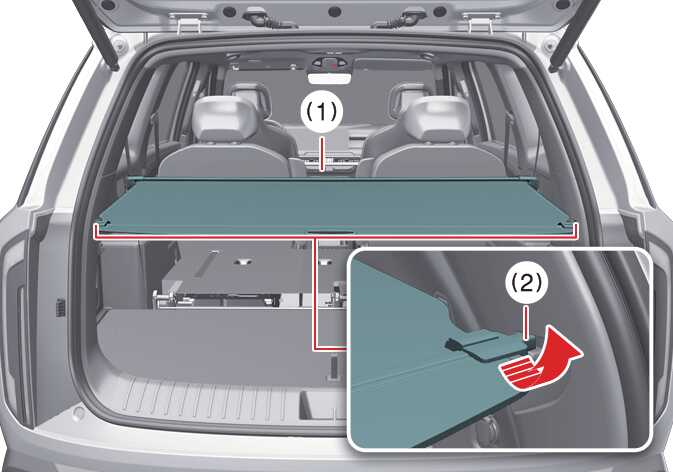

OLQ2A085079

  1. Pull the cargo security screen towards the rear of the vehicle by the handle (1).

  2. Insert the guide pin into the guide (2).

  3. When the cargo security screen is not in use, pull the cargo security screen backward and up to release it from the guides.

  4. The cargo security screen will automatically slide back in.

NOTE

To prevent the guide pin from falling out of the guide, pull out the cargo security screen using the handle in the center.

TIP

The cargo security screen may not automatically slide back in if the cargo security screen is not fully pulled out. Fully pull it out and then let go.
