Removing and storing the spare tire
The spare tire is stored underneath your vehicle directly below the cargo area.
Removing the spare tire
To remove the spare tire from storage, follow these steps:
-
Open the liftgate.
-

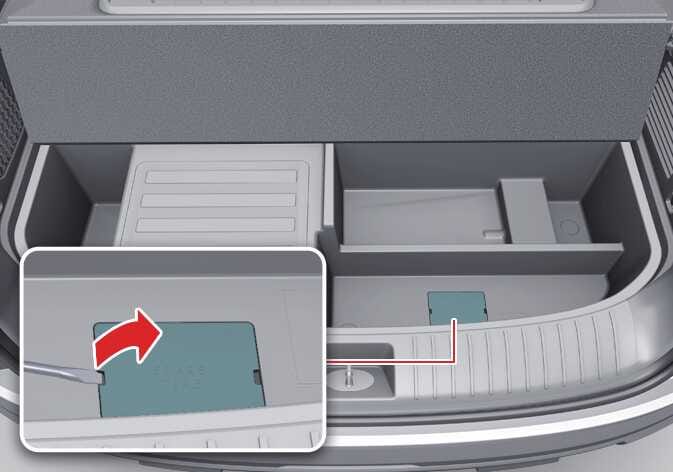

Find the spare tire fixing bolt cover and remove the cover.
If necessary, separate the tool case only after removing the clamp.
OLQ2AH115002 -

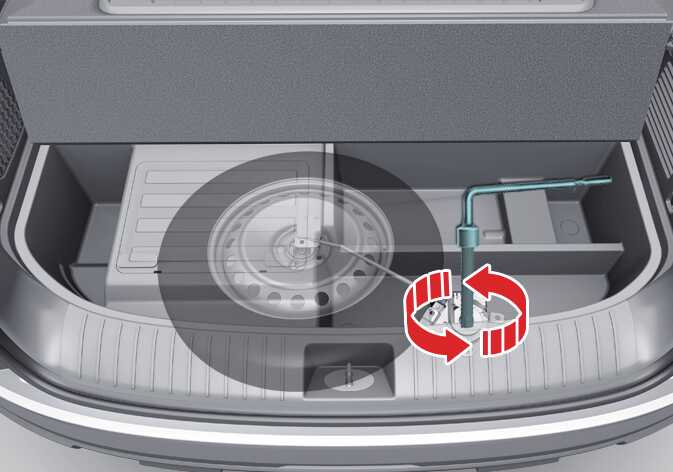

Connect the socket and wheel lug nut wrench.
OLQ2AH115003 -
Use the wheel lug nut wrench to loosen the bolt enough to lower the spare tire.
-

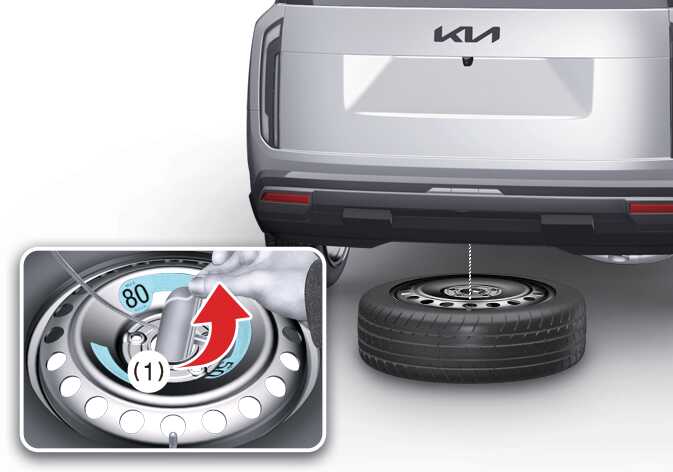

Turn the wrench counterclockwise until the spare tire reaches the ground.
OLQ2A115007 -
After the spare tire reaches the ground, continue to turn the wrench counterclockwise and draw the spare tire out. Never rotate the wrench excessively, as this may damage the spare tire carrier.
-

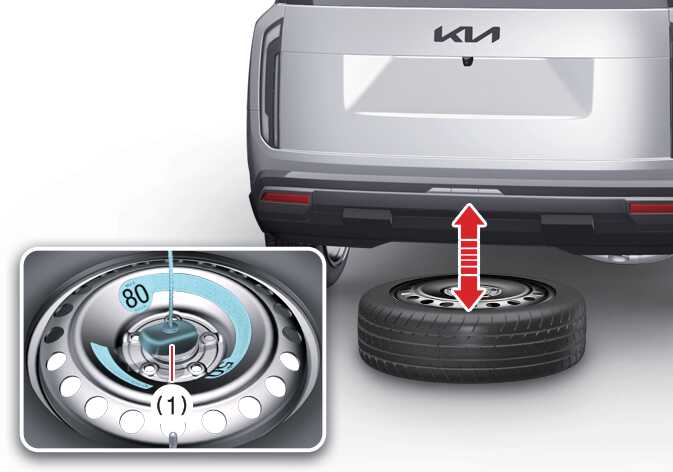

Remove the retainer (1) from the center of the spare tire. During tire removal and installation, try to keep the retainer cable tight to prevent backlashing or binding.
OLQ2A115008
Storing the spare tire
To store the spare tire, follow these steps:
-
Lay the tire on the ground with the valve stem facing up.
-
Place the wheel under the vehicle and install the retainer (1) through the wheel center.
-
Turn the wrench clockwise until it clicks.
Touching surface of the cargo area
Do not touch the metal surface of the cargo area while the engine is running or hot, as this could result in serious bodily injury.
Turn the engine off and wait until it cools down, or wear gloves to remove the spare tire from the luggage compartment.
