Jack label

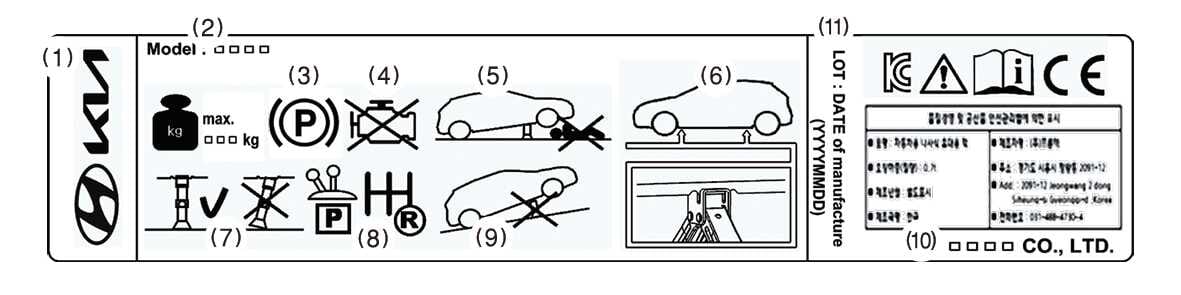

Figure 1. Type A
OLQ2A115016

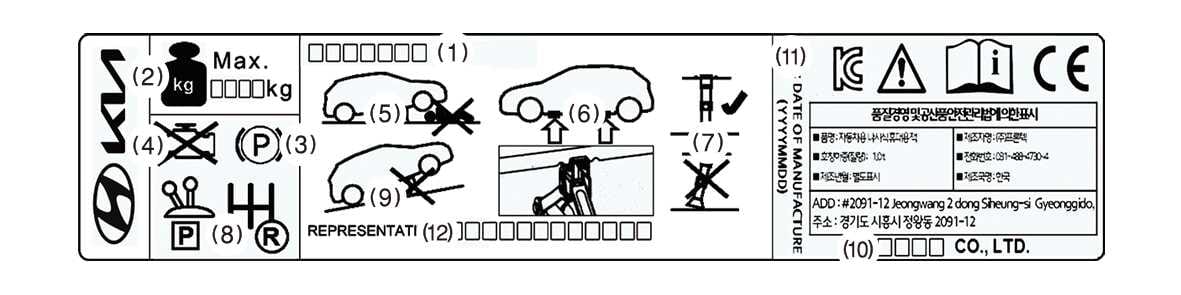

Figure 2. Type B
OLQ2A115017

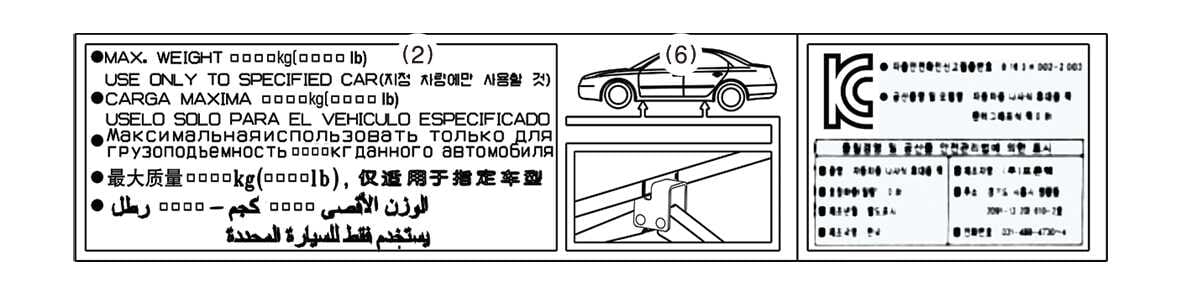

Figure 3. Type C
OLQ2A115018

The actual jack label in your vehicle may differ from the illustration above. Refer to the jack label in your vehicle for these specifications:

  1. Model Name

  2. Maximum allowable load

  3. When using the jack, apply your parking brake

  4. When using the jack, stop the engine

  5. Do not get under a vehicle that is supported by a jack

  6. Use the designated jack locations under the frame

  7. When supporting the vehicle, the base plate of the jack must be vertical under the lifting point

  8. Shift to P (Park)

  9. The jack should be used on firm, level ground

  10. Jack manufacturer

  11. Production date

  12. Representative company and address
