Charging status

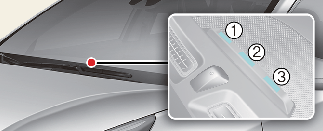

When charging the high voltage battery, the charge level can be checked from outside the vehicle.
|
Details |
Operation of charging indicator lamp |
||
|---|---|---|---|
|
(1) |
(2) |
(3) |
|
|
Not charged |
OFF |
OFF |
OFF |
|
Charging (0~33%) |
Blinking |
OFF |
OFF |
|
Charging (34~66%) |
ON |
Blinking |
OFF |
|
Charging (67%~99%) |
ON |
ON |
Blinking |
|
Charging completed (100%) (Turns off in approximately 5 seconds) |
ON |
ON |
ON |
|
Error while charging |
Blinking |
Blinking |
Blinking |
|
Charging 12V auxiliary battery or reserved air conditioner is operating |
OFF |
OFF |
Blinking |
|
Reserved charging is operating or interruptions that temporarily prevent charging (e.g. power failure) (Turns off after approximately 3 minutes) |
OFF |
Blinking |
OFF |
* When charging, the indicator lamp blinks according to each level of the battery.
* When charging fails, the indicator lamp blinks in red.
