LCD display modes

* : if equipped

Mode

Trip Computer

Turn By Turn (TBT)*

Driving Assist

User Settings

Master Warning

Up/Down

Consumption info

Route Guidance

Lane Keeping Assist*

Smart Cruise Control*

Driver Assistance*

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Drive Info

Destination Info

Driver Attention Warning*

Door

Accumulated Info

Intelligent Speed Limit Warning*

Lights

Driving Style

TPMS

Sound

Energy Flow

Convenience

Service Interval

Other

Language

Reset

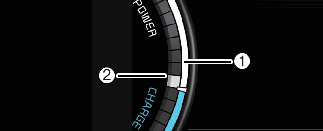

SMART/ECO pedal guide

  1. ECO driving guide

  2. Accelerator pedal percentage

Press drive mode button to ECO/ECO+ mode. The SMART/ECO pedal guide will appear on the instrument cluster.

Trip computer mode

* You may change through items in the following order.

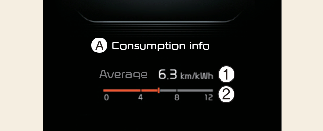

Consumption info display

A: Consumption Info

  1. Average

  2. Instant

1. Average energy consumption

The average energy consumption is calculated by the total driving distance and the high voltage battery consumption since the last average energy consumption reset.

  • At vehicle start: The average energy consumption will reset automatically whenever it has passed 4 hours after turning OFF the vehicle.

  • After recharging: The average energy consumption will reset automatically when driving speed exceeds 1 km/h (1 mph), after recharging more than 10%.

  • Off: Press and hold the OK button on the steering wheel when the average energy consumption is displayed.

2. Instant energy consumption

Displays the instant energy consumption during the last few seconds when the vehicle speed is more than approximately 10 km/h (6 mph).

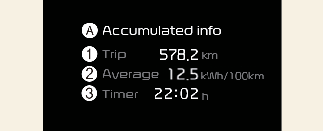

Accumulated info

A: Accumulated info

  1. Accumulated trip distance

  2. Average energy consumption

  3. Total driving time

The information is accumulated starting from the last reset.

To manually reset the information, press and hold the OK button on the steering wheel when viewing the Accumulated Info.

NOTICE

  • The average energy consumption is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or approximately 50 m (0.03 miles) since the vehicle is in ON position.

  • Energy consumption is calculated after the vehicle has run for more than 300 meters.

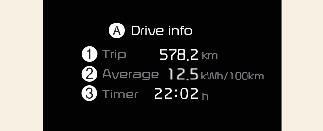

Drive info

A: Drive info

  1. Accumulated trip distance

  2. Average fuel efficiency

  3. Total driving time

The information after one ignition cycle.

Drive Info screen will reset when the driver's door is opened after turning off the vehicle, or the vehicle is turned on after 3 minutes have passed.

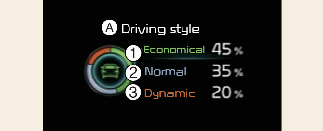

Driving style

A: Driving style

  1. Economical

  2. Normal

  3. Aggressive

This display shows whether the driver's driving style is Economical, Normal or Aggressive.

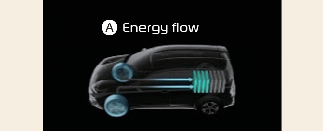

Energy flow

A: Energy flow

The hybrid system informs the driver about its energy flow in various operating modes. While driving, the current energy flow is specified in 11 modes.

Turn By Turn (TBT) mode

This mode displays the Navigation status.

Driving Assist mode

A: Lane Keep Assist

This mode displays the state of:

  • Lane Keeping Assist

    Intelligent Speed Limit Warning

    Smart Cruise Control

    Lane Following Assist

    Driver Attention Warning

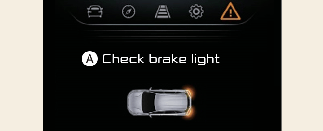

Master warning mode

A: Check brake light

This mode informs you of the following situations:

  • Driver assistance system malfunction, limitation or radar/camera blockage

  • LED headlamp malfunction

  • Lamp malfunction

  • TPMS failure, low tire pressure, etc.

At this time, the Master warning light () will appear. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

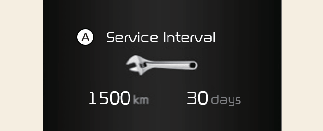

Service Interval

A: Service In

  1. Service interval schedule

It calculates and displays when you need a scheduled maintenance service (mileage or days).

To reset the service interval, select Convenience → Service Interval → Reset from the Settings menu.

NOTICE

  • If the remaining mileage or time reaches 1,500 km (900 miles) or 30 days, the message Service in is displayed for several seconds each time you set the vehicle to the ON position.

  • If you do not have your vehicle serviced according to the already inputted service interval, Service required message is displayed for several seconds each time you set the vehicle to the ON position.

  • If any of the following conditions occurs, the mileage and days may be incorrect.

    • The battery cable is disconnected.

    • The battery is discharged.

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lights, etc.

* The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance (if equipped)

Items

Explanation

Lane Safety

  • Lane Departure Warning/Lane Keeping Assist

Driver Attention Warning

  • High Sensitivity/Normal Sensitivity/Off

SCC Reaction

  • Fast/Normal/Slow

Leading Vehicle Departure Alert

Activate/Deactivate

Forward Collision-Avoidance Assist

Activate/Deactivate

Forward Collision Warning

  • Early/Normal/Late

Blind-Spot Collision Warning Sound

Activate/Deactivate

Rear Cross-Traffic Collision Warning

Activate/Deactivate

Speed Limit Warning

Activate/Deactivate

2. Door (if equipped)

Items

Explanation

Automatically Lock

  • Enable on shift/Enable on speed/Off

Automatically Unlock

  • On shift to P/Vehicle Off/On key out (if equipped)/Off
NOTICE

  • Automatically Lock

    • Enable On Shift: All doors will be automatically unlocked when the vehicle is shifted to P (Park) to R (Reverse), N (Neutral), or D (Drive). (With the Engine ON, it is activated.)

    • Enable On Speed: All doors will be automatically locked when the vehicle speed is over 15 km/h (9 mph).

  • Automatically Unlock

    • On Shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.)

    • Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.

3. Lights (if equipped)

Items

Explanation

One Touch Turn Signal

  • Off/3/5/7 Flashes

Ambient Brightness

  • Off/1/2/3/4

Ambient Light Color

  • 8 colors

Headlight Delay

Activate/Deactivate

4. Sound (if equipped)

Items

Explanation

Parking Distance Warning Volume

  • High/Low

5. Convenience (if equipped)

Items

Explanation

Utility Mode

Yes/No

Welcome Mirror/Light

  • On door unlock/On door unlock

Wiper/Lights Display

Activate/Deactivate

Auto Rear Wiper (in R)

Activate/Deactivate

Icy Road Warning

Activate/Deactivate

Smart Regeneration

Activate/Deactivate

Rear Occupant Alert

Activate/Deactivate

6. Service Interval (if equipped)

Items

Explanation

Enable Service Interval

Activate/Deactivate

Adjust Interval

  • Time/Distance

Reset

  • Yes/No

7. Other (if equipped)

Items

Explanation

Energy Consumption Reset

  • After Refueling/After Ignition

Speed Unit

  • km/h, MPH

Temperature Unit

  • °C, °F

Tire Pressure Unit

  • psi/kPa/bar

8. Language

Items

Explanation

Language

Activate

9. Reset

Items

Explanation

Reset

  • Yes/No
