Replacing front wiper blade
Operation
Type A (if equipped)
-

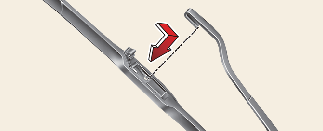

Raise the wiper arm and turn the wiper blade assembly to expose the plastic locking clip.
-

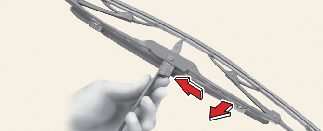

Compress the clip and slide the blade assembly downward.
-

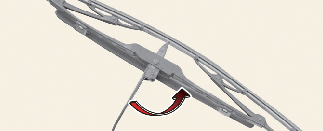

Lift it off the arm.
-
Install the blade assembly in the reverse order of removal.
-
Install the new blade assembly.
-
Return the wiper arm on the windshield.
-
Turn the vehicle on and wiper arms will return to the normal operating position.
Type B (if equipped)
-

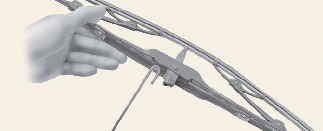

Raise the wiper arm.
-

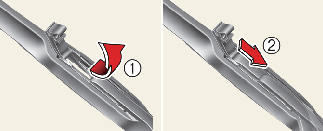

Lift the wiper blade clip up (1). Pull down the blade assembly and remove it (2).
-
Install the new blade assembly.
-
Upon starting the vehicle, the wiper arms will return to their normal operating position.
