Operation

1. Turn off vehicle and disconnect the negative terminal from the battery.

2. Open the hood.

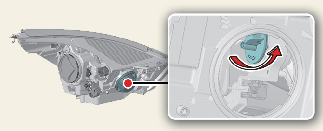

3. Remove the dust cover (A) from the headlamp assembly then bulb socket by turning the counterclockwise until the tabs on the bulb socket align with the slots on the headlamp assembly.

4. Remove the bulb from the bulb socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the bulb socket. Pull the bulb out of the bulb socket.

5. Insert a new bulb by inserting it into the bulb socket and rotating it until it locks into place.

6. Install the socket in the headlamp assembly by aligning the tabs on the bulb socket with the slots in the assembly. Push the bulb socket into the headlamp assembly and turn the socket clockwise.

7. Connect the negative terminal from the battery.
