Replacing headlamp (Low beam/High beam) (Bulb type)
Operation
-
Turn off vehicle and disconnect the negative terminal from the battery.
-
Open the hood.
-

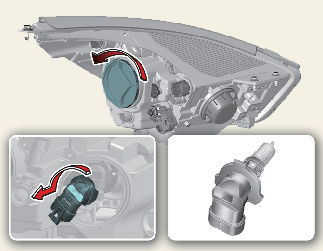

Remove the headlamp bulb cover by turning it counterclockwise.

-
Disconnect the headlamp bulb socket connector.
-
Remove the bulb socket from the headlamp assembly by turning the bulb socket counterclockwise until the tabs on the bulb socket align with the slots on the headlamp assembly.
-
Install a new bulb socket assembly in the headlamp assembly by aligning the tabs on the bulb socket with the slots in the headlamp assembly. Push the bulb socket into the headlamp assembly and turn the bulb socket clockwise.
-
Install the headlamp bulb cover by turning it clockwise.
-
Connect the negative terminal from the battery.

-
Halogen bulbs contain pressurized gas that will produce flying pieces of glass if broken.
-

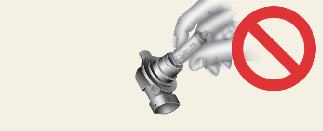

Always handle them carefully, and avoid scratches and abrasions. If the bulbs are lit, avoid contact with liquids. Never touch the glass with bare hands. Residual oil may cause the bulb to overheat and burst when lit.
A bulb should be operated only when installed in a headlight.

-
If a bulb becomes damaged or cracked, replace it immediately and carefully dispose of it.
-
Wear eye protection when changing a bulb. Allow the bulb to cool down before handling it.
