Operation of Forward/Reverse Parking Distance Warning

Operating condition

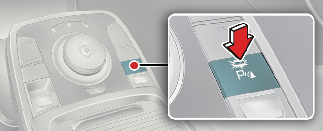

  • This function activates when the Parking Safety button is pressed with the vehicle is ON position.

  • The indicator of the Parking Safety button turns on automatically and activates Forward/Reverse Parking Distance Warning when you shift the gear to the R (Reverse) position.

  • The sensing distance while backing up is approximately 120 cm (48 inches) when you are driving less than 10 km/h (6 mph).

  • The sensing distance while moving forward is approximately 100 cm (40 inches) when you are driving less than 10 km/h (6 mph).

  • When more than two objects are sensed at the same time, the closest one will be recognized first.

  • The side sensors are activated when you shift the gear to the R (Reverse) position.

  • If the vehicle speed is above 20 km/h (12 mph), the function automatically turns off. To activate again, push the button.

    NOTICE

    It may not operate if it's distance from the object is already less than approximately 25 cm (10 inches) when the function is ON.

Type of warning indicator and sound

Distancefrom object

Warning indicator

Warning sound

When drivingforward

When drivingrearward

60~100 cm

(24~40 inches)

Front

-

Buzzer beeps intermittently

60~120 cm

(24~48 inches)

Rear

-

Buzzer beeps intermittently

30~60 cm

(12~24 inches)

Front

Buzzer beeps frequently

Rear

-

Buzzer beeps frequently

Within 30 cm (12 inches)

Front

Buzzer sounds continuously

Rear

-

Buzzer sounds continuously
NOTICE

  • The actual warning sound and indicator may differ from the illustration according to objects or sensor status.

  • Do not wash the vehicle's sensor with high pressure water.

CAUTION

  • This function can only sense objects within the range and location of the sensors;

    It can not detect objects in other areas where sensors are not installed. Also, small or slim objects, such as poles or objects located between sensors may not be detected by the sensors.

    Always visually check behind the vehicle when backing up.

  • Be sure to inform any drivers of the vehicle that may be unfamiliar with the function regarding the functions capabilities and limitations.
