Shift-lock system

Shift-lock system prevents shifting the gear from P (Park) into N (Neutral)/R (Reverse)/D (Drive) or N (Neutral) into R (Reverse)/D (Drive) unless the brake pedal is depressed.

Overriding shift-lock system

Operation

  1. When vehicle is in ON position, make sure the parking brake is disengaged.

  2. Press AUTO HOLD button to deactivate AUTO HOLD function.

  3. Shift to P (Park) and turn OFF the vehicle.

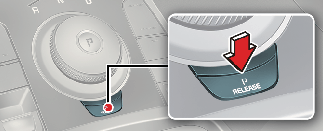

  4. Depress the brake pedal and press P RELEASE button to shift to N (Neutral).

WARNING

  • ALWAYS check the surrounding areas near your vehicle for people, especially children, before shifting a vehicle into D (Drive) or R (Reverse).

  • Before leaving the driver's seat, always make sure the gear is in the P (Park) position, then set the parking brake, and place the Power button in the OFF position. Unexpected and sudden vehicle movement can occur if these precautions are not followed.

  • Shifting into P (Park) while the vehicle is in motion may cause you to lose control of the vehicle.

  • After the vehicle has stopped, always make sure P (Park) gear position is selected, apply the parking brake, and turn the vehicle off.

  • Do not use the P (Park) position in place of the parking brake.

  • When you park the vehicle, make sure Electronic Parking Brake is applied even though the gear is in the P (Park) position.

  • If equipped with Electronic Parking Brake, parking brake is applied automatically when the gear is shifted to P (Park).

CAUTION

  • Always come to a complete stop before shifting into or out of R (Reverse); you may damage the reduction gear if you shift into R (Reverse) while the vehicle is in motion, except on "Rocking the vehicle" (refer to More Details).

  • With the exception of parking in neutral gear, always park the vehicle in P (Park) for safety and engage the parking brake.

  • Before parking in N (Neutral) gear, first make sure the parking ground is level and flat. Do not park in N (Neutral) gear on any slopes or gradients. If parked and left in N (Neutral), the vehicle may move and cause serious damage and injury.

NOTICE

  • Always depress the brake pedal while shifting to another gear.

  • You cannot shift the gear while the charging cable is connected.
