Suitability of each seating position for belted & ISOFIX Child Restraint Systems (CRS) according to UN regulations (Information for use by vehicle users and CRS manufacturers)
-
Yes: Suitable for fitment of the designated category of CRS
-
No: Not suitable for fitment of the designated category of CRS
-
"-": Not applicable
-
The table is based on LHD vehicle. Except for the front passenger seat, the table is valid for RHD vehicle.
For RHD vehicle front passenger seat, please use information for the seating position number 3.
-
All type vehicle is allowed.
F: Forward facing
R: Rearward facing
|
CRS categories |
Seating positions (Rear center 3-point belt type) |
||||||
|---|---|---|---|---|---|---|---|
|
1 |
2 |
3 |
4 |
5 |
6 |
||
|
Universal belted CRS |
All mass groups |
- |
- |
Yes*1 (F, R) |
Yes (F, R) |
Yes (F, R) |
Yes (F, R) |
|
i-size CRS |
ISOFIX CRF: F2, F2X, R1, R2 |
- |
- |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
Carry-cot (ISOFIX lateral facing CRS) |
ISOFIX CRF: L1, L2 |
- |
- |
No |
No |
No |
No |
|
ISOFIX infant* CRS (*: ISOFIX baby CRS) |
ISOFIX CRF: R1 |
- |
- |
No |
Yes (R) |
No |
Yes (R) |
|
ISOFIX toddler CRS – small |
ISOFIX CRF: F2, F2X, R2, R2X |
- |
- |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
ISOFIX toddler CRS – large* (*: not booster seats) |
ISOFIX CRF: F3, R3 |
- |
- |
No |
Yes (F, R) |
No |
Yes (F, R) |
|
Booster Seat – reduced width |
ISO CRF: B2 |
- |
- |
No |
Yes |
No |
Yes |
|
Booster Seat – full width |
ISO CRF: B3 |
- |
- |
No |
Yes |
No |
Yes |
* 1. For fitment of universal belted Child Restraint Systems on the seat number 3, Seat back angle should be at its fully forward position.
|

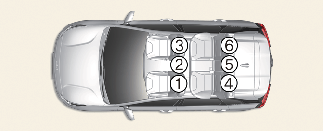

Seat Number |
Position in the vehicle |
Seating positions |
|---|---|---|
|
1 |
Front left |
 |
|
2 |
Front center |
|
|
3 |
Front right |
|
|
4 |
2nd row left |
|
|
5 |
2nd row center |
|
|
6 |
2nd row right |
* Never place a rearward facing Child Restraint System on the front passenger seat, unless the air bag is deactivated.
* For semi-universal or vehicle specific CRS (ISOFIX or belted CRS), please see the vehicle list provided in the manual of CRS.
