Replacing climate control air filter

Operation

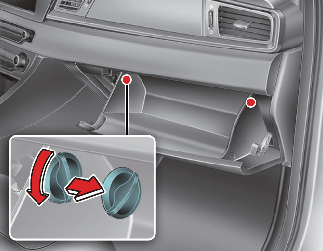

  1. Open the glove box and remove the stoppers on both sides.

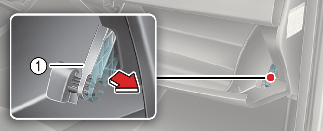

  2. Open the glove box and pull the support strap (1).

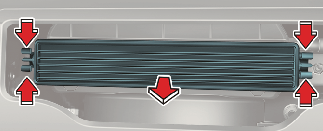

  3. Remove the climate control air filter cover by pulling out both sides of the cover.

  4. Replace the climate control air filter. Assemble in reverse order.

NOTICE
  • When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.

  • If the vehicle is operated in extremely dusty or sandy areas, replace the element more often than the usual recommended intervals.
