LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

	Mode
	Driving Assist	Trip Computer	Turn By Turn (TBT)*	User Settings*	Master warning
Up/Down	Forward Collision-Avoidance Assist* Lane Keeping Assist* Blind-Spot Collision Warning* Blind-Spot Collision-Avoidance Assist* Smart Cruise Control* Lane Following Assist* Highway Driving Assist*	Drive Info	Route Guidance	Driver Assistance	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
		Since Refueling	Destination Info	Cluster
		Accumulated Info		Lights
		Digital Speedometer*		Door
				Convenience
				Units
				Language
				Reset
	Driver Attention Warning*
	Tire Pressure Monitoring System*

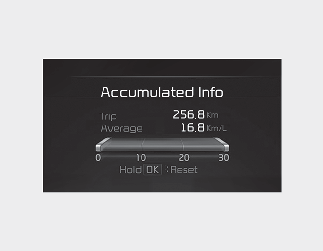

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

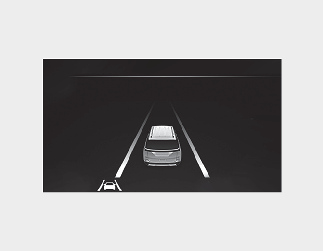

Driving Assist mode

This mode displays the state of:

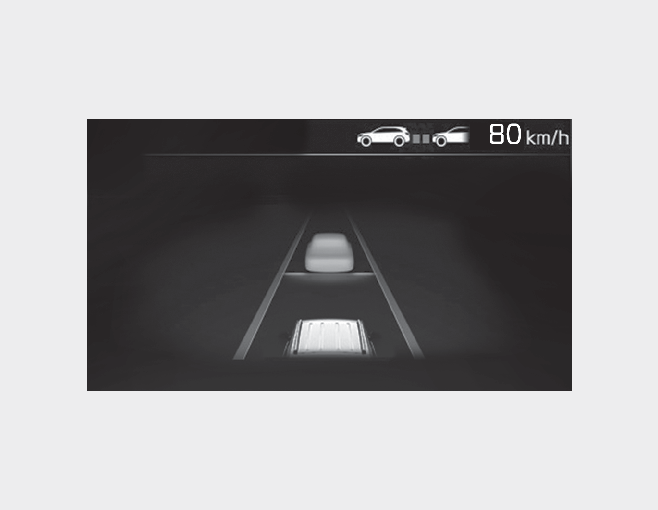

Smart Cruise Control (if equipped)
Lane Safety (if equipped)

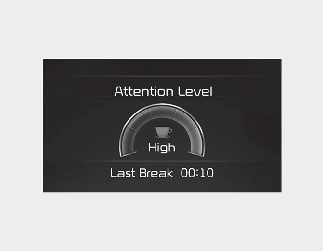

Driver Attention Warning (if equipped)
Tire pressure (if equipped)

* For more details, refer to each system information in More Details.

Tire pressure status

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

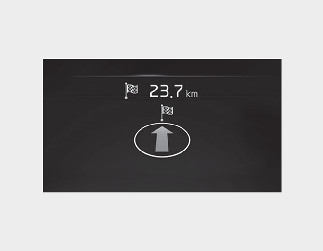

Turn By Turn (TBT) mode (if equipped)

This mode displays the state of the navigation.

Master warning mode

This warning light informs the driver the following situations.

LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

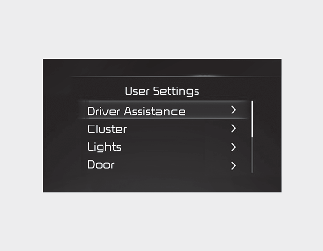

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance
Cluster
Lights
Door
Convenience
Units
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Speed Limit	To adjust Speed Limit * For more details, refer to More Details.
Warning Timing	Normal/Late To select the Warning timing
Warning Volume	High/Medium/Low To select the Warning volume
Driver Attention Warning	Leading Vehicle Departure Alert Inattentive Driving Warning To select the function. * For more details, refer to More Details.
Forward Safety	To adjust Forward Collision-Avoidance Assist. Active Assist/Warning Only/Off To select the functions. * For more details, refer to More Details or More Details.
Lane Safety	To adjust Lane Keeping Assist. Lane Keeping Assist/Lane Departure Warning/Off To select the functions. * For more details, refer to More Details.
Blind-Spot Safety	Safe Exit Assist To activate or deactivate Safe Exit Assist. For more details, refer to More Details or More Details. Active Assist/Warning Only/Off For more details, refer to More Details or More Details.
Parking Safety	To Activate or deactivate Parking Distance Warning. Parking Distance Warning Auto Activation For more details, refer to More Details. To Activate or deactivate Rear Cross-Traffic Safety. Rear Active Assist/Rear Warning Only/Off For more details, refer to More Details. Rear Cross-Traffic Safety For more details, refer to More Details or More Details.

2. Cluster

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Wiper/Lights Display	If this item is checked, the wiper/lights display will be activated.
Icy Road Warning	If this item is checked, the icy road warning will be activated.
Welcome Sound	If this item is checked, the welcome sound function will be activated.
Theme Selection	Theme A/Theme B/Theme C If this item is checked, the cluster theme will change accordingly.

3. Lights

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Illumination	To adjust the instrument cluster illumination.
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

4. Door

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Automatically Lock	Enable on shift (for Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position. (With the Engine ON, it is activated.) Enable on speed (for Automatic transmission): All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Off: The auto door unlock operation will be canceled. * If the setting is changed while the vehicle is in motion, the changed setting may not immediately operate.
Automatically Unlock	On shift to P (for Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the Engine ON, it is activated.) Vehicle Off/ On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. Off: The auto door unlock operation will be canceled.
Power Tailgate Opening Speed	Fast: The power tailgate will be closed faster than normal speed. Normal: The power tailgate will be closed in normal speed.
Power Tailgate Opening Height	Full Open/Level 3/Level 2/Level 1/User Height Setting The power tailgate will be opened in a certain angle.
Tailgate Auto Close	To activate or deactivate Tailgate Auto Close. For more details, refer to More Details.
Smart Tailgate	To activate or deactivate the Smart Tailgate with Auto Open. For more details, refer to More Details.
Smart Sliding Door	To activate or deactivate the Smart Sliding Door with Auto Open. For more details, refer to More Details.

5. Convenience

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Seat Easy Access	Off/Move Seat/Extended To select the seat movement.
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Welcome Mirror/Light	To select the welcome mirror/light function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Auto Rear Wiper (in R)	If this item is checked, the auto rear wiper will be activated.
Service Interval	Enable Service Interval If this item is checked, the Service Interval function will be activated. Adjust Interval If the service interval menu is activated, you may adjust the time and distance. Reset To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

6. Units

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Speedometer Unit	km/h or mph To select the Speedometer unit.
Fuel Economy Unit	Km/L, L/100Km To select the Fuel economy unit. For more details, refer to More Details.
Temperature Unit	°C/°F To select the Temperature unit.
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

7. Language

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Language	To select language.

8. Reset

* The information provided may differ depending on which systems are applicable to your vehicle.

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
