Shift lock system

For your safety, the automatic transmission has a shift lock system which prevents shifting the transmission from P (Park) into R (Reverse) unless the brake pedal is depressed.

To shift the gear from P (Park) into R (Reverse):

  1. Depress and hold the brake pedal.

  2. Start the engine or turn the ignition switch or ENGINE START/STOP button to the ON position.

  3. Move the shift lever.

If the brake pedal is repeatedly depressed and released with the shift lever in the P (Park) position, a chattering noise near the shift lever may be heard. This is a normal condition.

WARNING

Always fully depress the brake pedal before and while shifting out of the P (Park) position into another position to avoid inadvertent motion of the vehicle which could injure persons in or around the vehicle.

Shift-lock override

If the shift lever cannot be moved from the P (Park) position into R (Reverse) position with the brake pedal depressed, continue depressing the brake, then do the following:

  1. Place the ignition switch or ENGINE START/STOP button in the LOCK/OFF position.

  2. Apply the parking brake.

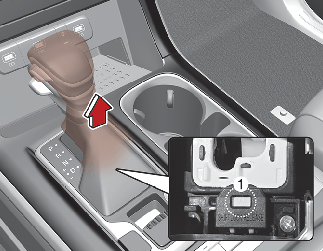

  3. Carefully remove the knob boots covering the shift-lock release access hole (1).

  4. Insert a tool (e.g., flathead screwdriver) into the access hole and press down on the tool.

  5. Move the shift lever.

  6. Remove the tool from the shift-lock override access hole then install the knob boots.

  7. If the shift lever does not move even after performing this procedure, have the system checked by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
