Rear climate control

From the front seat

  1. Set the rear climate control selection (REAR ON) button in the front climate control panel to the ON position.

  2. Set the rear fan speed control knob in the front climate control panel to the desired position.

  3. Set the rear temperature control knob in the front climate control panel to the desired position.

From the rear seat

  1. Set the rear climate control selection (REAR ON) button in the front climate control panel to the ON position.

  2. Set the rear climate control selection (REAR LOCK) button in the front climate control panel to the OFF position.

  3. Set the rear fan speed control button on the rear climate control panel to the desired position.

Rear mode selection

  • Front climate control is MAX A/C, : Rear air blows from the upper vents on the rear ceiling.

  • Front climate control is : Rear air blows from the upper vents on the rear ceiling and the lower vents on the right rear trim together.

  • Front climate control is , : Rear air blows from the lower vents on the right rear trim.

When the rear climate control selection (REAR ON) button in the front climate control panel is in the ON position and set the rear climate control selection (REAR LOCK) button in the front climate control panel to the OFF position and the rear mode is selected by pushing the rear mode selection button on the rear control panel as follows:

  • : Rear air blows from the upper vents on the rear ceiling.

  • : Rear air blows from the upper vents on the rear ceiling and the lower vents on the right rear trim together.

  • : Rear air blows from the lower vents on the right rear trim.

Rear temperature control

From the front seat

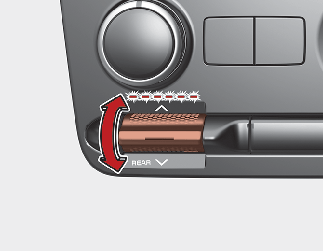

Set the rear climate control selection (REAR ON) button to the ON position and turn the rear temperature control (REAR TEMP) knob in the front climate control panel to the desired position. To change the rear air temperature, press the switch to the upper position for warm and hot air or lower position for cooler air.

From the rear seat

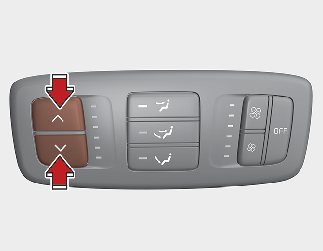

Set the rear climate control selection (REAR ON) button in the front climate control panel to the ON position and set the rear climate control selection (REAR LOCK) button in the front climate control panel to the OFF position. To change the rear air temperature, press the button () for warmer air or press the button () for cooler air.

Rear fan speed control

From the front seat

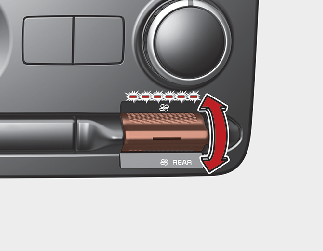

Set the rear climate control selection (REAR ON) button to the ON position and turn the rear fan speed control (REAR) switch in the front climate control panel to the desired position.

To change the rear fan speed, press the switch to the upper position for higher speed or lower position for lower speed. Setting the switch to the 0 position turns the rear fan off.

From the rear seat

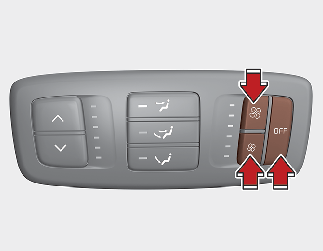

Set the rear climate control selection (REAR ON) button in the front climate control panel to the ON position and set the rear climate control selection (REAR LOCK) button in the front climate control panel to the OFF position and press the rear fan speed control button on the rear control panel to the desired position.

To turn off the rear air conditioning system press the off button in the rear climate control panel.
