Surround View Monitor (SVM) (if equipped)
Surround View Monitor will assist in parking using the cameras installed on the vehicle and displays images around the vehicle through the infotainment system screen.
-

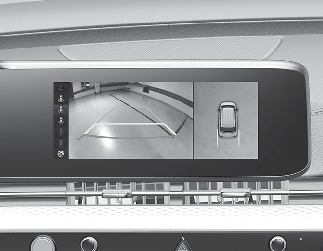

Parking Assist View function helps the driver to see the surroundings of the vehicle in a parking situation in various view modes.
Detecting sensor

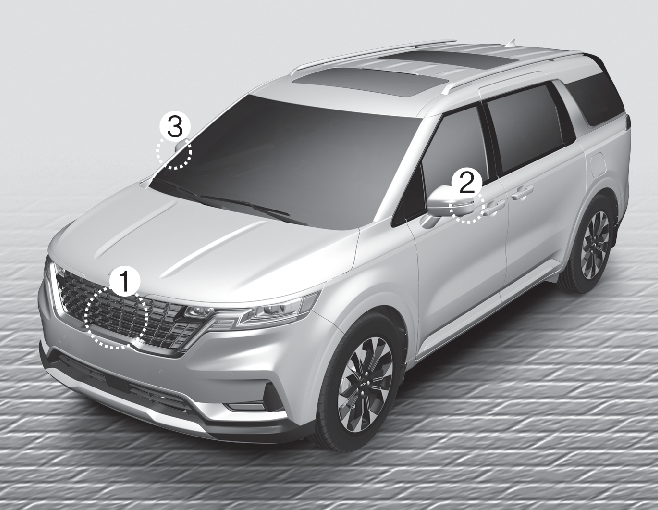

(1) Wide-front view camera, (2, 3) Wide-side view camera (under the outside rearview mirror)

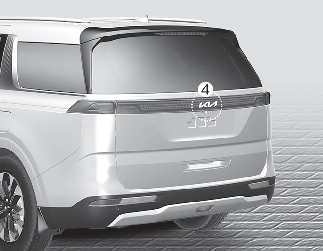

(4) Wide-rear view camera
Refer to the picture above for the detailed location of the detecting sensors.
