Rear Cross-Traffic Collision-Avoidance Warning operation

Warning

Rear Cross-Traffic Collision-Avoidance Warning will warn and control the vehicle depending on collision level

  • Collision Warning

Collision warning

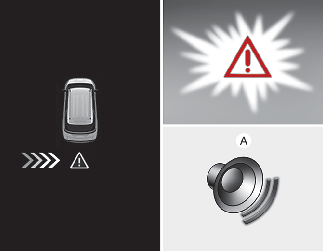

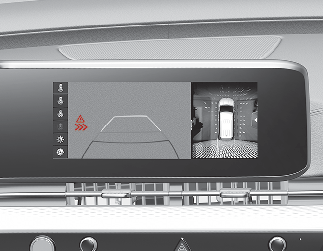

  • To warn the driver of an approaching vehicle from the rear left/right side of your vehicle, the warning light on the outside rearview mirror will blink and a warning will appear on the cluster. At the same time, an audible warning will sound. If the Rear View Monitor is operating, a warning will also appear on the infotainment system screen. (if equipped)

  • Rear Cross-Traffic Collision-Avoidance Warning will operate when all the following conditions are satisfied:

    • The gear is shifted to R (Reverse) and the vehicle speed is below 8 km/h (5 mph)

    • The approaching vehicle is within approximately 25 m (82 ft.) from the blind spot area of your vehicle

    • The speed of the vehicle approaching from the blind spot area is above 5 km/h (3 mph)

NOTICE

  • If the operating conditions are satisfied, there will be a warning whenever the vehicle approaches from the blind spot area.

  • Depending on the instrument cluster specifications or theme, images or colors may be displayed differently.

WARNING

  • For your safety, set the Settings after parking the vehicle at a safe location.

  • If any other function's warning message is displayed or audible warning is generated, Rear Cross-Traffic Collision-Avoidance Warning's warning message may not be displayed and audible warning may not be generated.

  • You may not hear the warning sound of Rear Cross-Traffic Collision-Avoidance Warning if the surrounding is noisy. Adjust the volume inside the vehicle appropriately be aware of the surroundings and drive safely.

  • Rear Cross-Traffic Collision-Avoidance Warning does not operate in all situations or cannot avoid all collisions.

  • The driver should hold the responsibility to control the vehicle. Do not solely depend on Rear Cross-Traffic Collision-Avoidance Warning. Rather, maintain a safe braking distance, and if necessary, depress the brake pedal to reduce driving speed or to stop the vehicle.

  • Never deliberately operate Rear Cross-Traffic Collision-Avoidance Warning on people, animal, objects, etc. It may cause serious injury or death.
