Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.

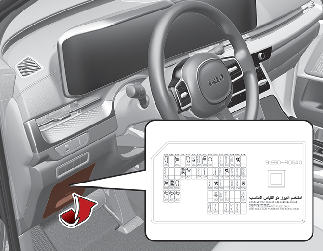

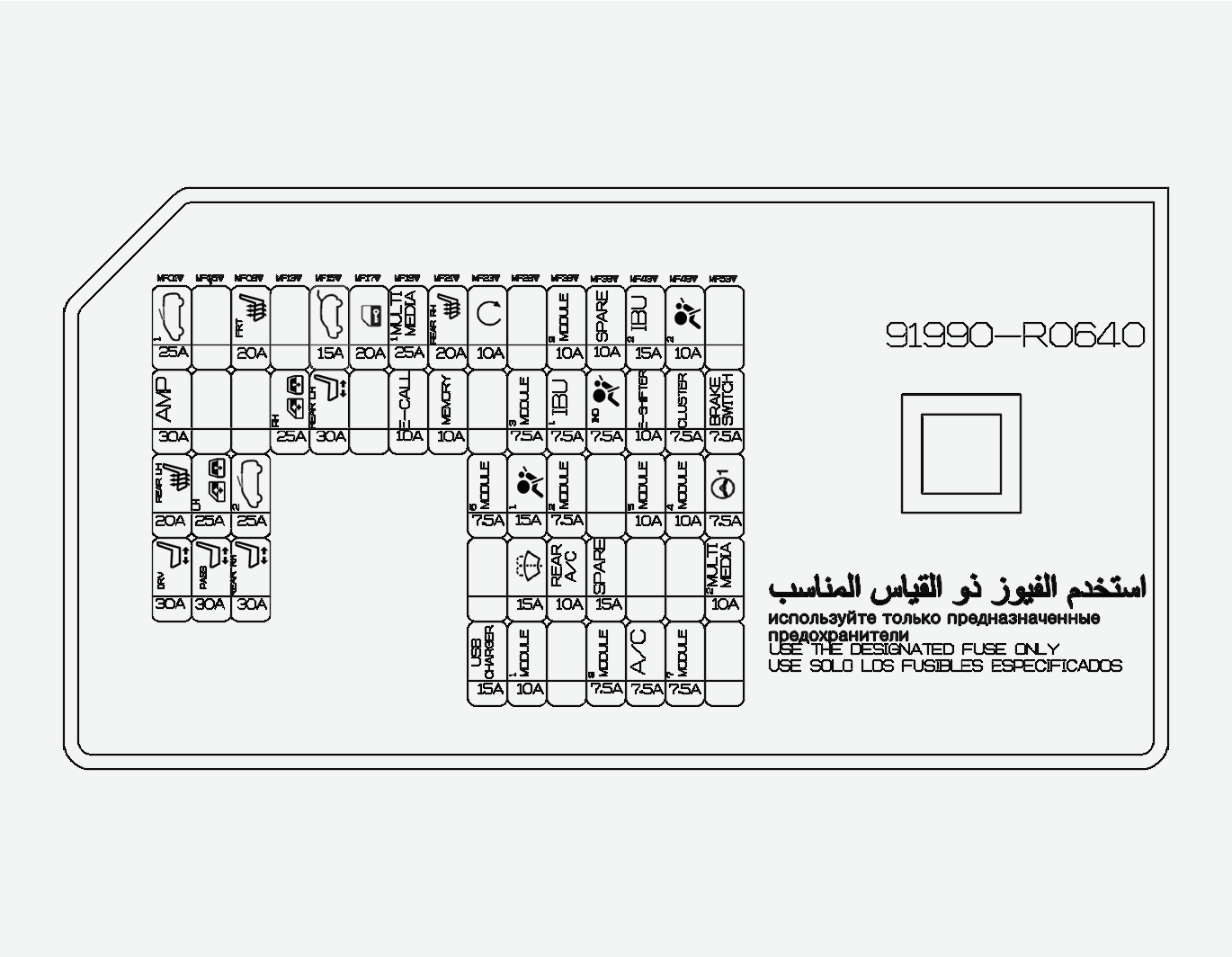

Driver's side fuse panel
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
SUNROOF1 |
 |
25A |
Front Sunroof Motor |
|
AMP |
 |
30A |
AMP (Amplifier) (BOSE) |
|
REAR LH S/HEAT |
 |
20A |
2nd Seat LH Air Ventilation Control Module, 2nd Seat Warmer Control Module |
|
DRIVER P/SEAT |
 |
30A |
Driver IMS (Integrated memory system) Control Module, Driver Power Seat Switch |
|
DRIVER P/WINDOW |
 |
25A |
Rear Power Window Switch LH, Rear Safety Power Window Module LH [LHD] Driver Safety Power Window Module [RHD] Passenger Power Window Switch, Passenger Safety Power Window Module |
|
PASSENGER P/SEAT |
 |
30A |
Passenger Walk-In Module, Passenger Power Seat Switch |
|
FRONT S/HEAT |
 |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
|
SUNROOF2 |
 |
25A |
Rear Sunroof Motor |
|
REAR RH P/SEAT |
 |
30A |
2nd Seat RH Relax Module |
|
PASSENGER P/WINDOW |
 |
25A |
Rear Power Window Switch RH, Rear Safety Power Window Module RH [LHD] Passenger Power Window Switch, Passenger Safety Power Window Module [RHD] Driver Safety Power Window Module |
|
TAIL GATE |
 |
15A |
Tail Gate Open Relay |
|
REAR LH P/SEAT |
 |
30A |
2nd Seat LH Relax Module |
|
DOOR LOCK |
 |
20A |
Door Lock Relay, Door Unlock Relay, FUEL FILLER OPENER |
|
MULTI MEDIA1 |
 |
25A |
Audio, A/V & Navigation Head Unit, Fuse - MULTI MEDIA2 |
|
E-CALL |
 |
10A |
Emergency Call (E-Call) Module |
|
REAR RH S/HEAT |
 |
20A |
2nd Seat Warmer Control Module, 2nd Seat RH Air Ventilation Control Module |
|
MEMORY |
 |
10A |
Front/Rear A/C Control Module, Front A/C Control Panel, Instrument Cluster, Rear Seat Multimedia Monitor LH/RH, Driver/Passenger Power Outside Mirror, Driver IMS (Integrated memory system) Control Module, Power Tail Gate Module, Rear Occupant Alert (ROA) Sensor #1/#2, Surround View Monitor |
|
START |
 |
10A |
[Without Smart Key] Ignition Switch |
|
MODULE6 |
 |
7.5A |
[Smart stream D2.2] Diesel Filter Heater |
|
USB CHARGER |
 |
15A |
Luggage USB Charger LH, Luggage USB Charger Unit, Driver Seat USB Jack, Passenger Seat USB Jack |
|
MODULE3 |
 |
7.5A |
IBU (Integrated Body Control Unit), Surround View Monitor, Front View Camera, Crash Pad Switch, Electric Parking Brake Switch, Front Upper Console Switch, ATM (Automatic Transmission) Shift Lever Indicator, Rear Corner Radar LH/RH, Dosing Control Module |
|
AIR BAG1 |
 |
15A |
SRS (Supplemental Restraint System) Control Module (IG1), OCCUPANT DETECTION SENSOR |
|
WASHER |
 |
15A |
Multifunction Switch |
|
MODULE1 |
 |
10A |
IBU (Integrated Body Control Unit), Audio, A/V & Navigation Head Unit, Keyboard, Surround View Monitor, Emergency Call (E-Call) Module, FRONT TRAY USB CHARGER, AMP (Amplifier) (BOSE), Rear Seat Multimedia Monitor LH/RH |
|
MODULE9 |
 |
10A |
Data Link Connector, Hazard Switch, 2nd Seat LH/RH Relax Module, ATM (Automatic Transmission) Shift Lever, Crash Pad Switch, Crash Pad Switch (Lower), Driver Door Module, Driver/Passenger Door Outside Handle, Driver/Passenger Door Outside Handle Antenna, Rain Sensor |
|
IBU1 |
 |
7.5A |
IBU (Integrated Body Control Unit) (IG1) |
|
MODULE2 |
 |
7.5A |
Stop Lamp Switch |
|
REAR A/C |
 |
10A |
Rear A/C Control Module, Engine Room Junction Block (Rear Blower Relay) |
|
AIR BAG IND. |
 |
7.5A |
Instrument Cluster, AIR BAG(TELLTALE LAMP) |
|
MODULE8 |
 |
7.5A |
AC Inverter Module, 2nd Seat LH/RH Air Ventilation Control Module, AC Inverter (Rear), Front Air Ventilation Seat Control Module, Engine Room Junction Block (Windshield Heated Glass 1/2 Relay), 2nd Seat Warmer Control Module, 2nd Seat LH/RH Relax Module |
|
IBU2 |
 |
15A |
IBU (Integrated Body Control Unit) (B+) |
|
E-SHIFTER |
 |
10A |
[With SBW (Shift By Wire)] Electronic ATM (Automatic Transmission) Shift Lever Switch |
|
MODULE5 |
 |
10A |
Overhead Console Indicator |
|
A/C |
 |
7.5A |
Front A/C Control Module, Front A/C Control Panel, Engine Room Junction Block (Front Blower Relay, PTC Heater2 Relay) |
|
AIR BAG2 |
 |
10A |
SRS Control Module (B+) |
|
CLUSTER |
 |
7.5A |
Instrument Cluster (IG1) |
|
MODULE4 |
 |
10A |
Data Link Connector, Audio, A/V & Navigation Head Unit, Keyboard, Head Lamp LH/RH, Wireless Charger, Emergency Call (E-Call) Module, Front/Rear A/C Control Module, Rear Power Window Switch LH/RH, Front A/C Control Panel, Rear Safety Power Window Switch LH/RH, Driver IMS (Integrated memory system) Control Module, Front Seat Warmer Control Module, Electro Chromic Mirror, Front Air Ventilation Seat Control Module, 2nd Seat Warmer Control Module, 2nd Seat LH/RH Relax Module, Overhead Console, 2nd Seat LH/RH Air Ventilation Control Module |
|
MODULE7 |
 |
7.5A |
IBU (Integrated Body Control Unit) (IG2) |
|
BRAKE SWITCH |
 |
7.5A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
|
EPS |
 |
7.5A |
EPS (Electric Power Steering) Unit |
|
MULTI MEDIA2 |
 |
10A |
[Without BOSE AMP (Amplifier)] A/V & Navigation Head Unit |

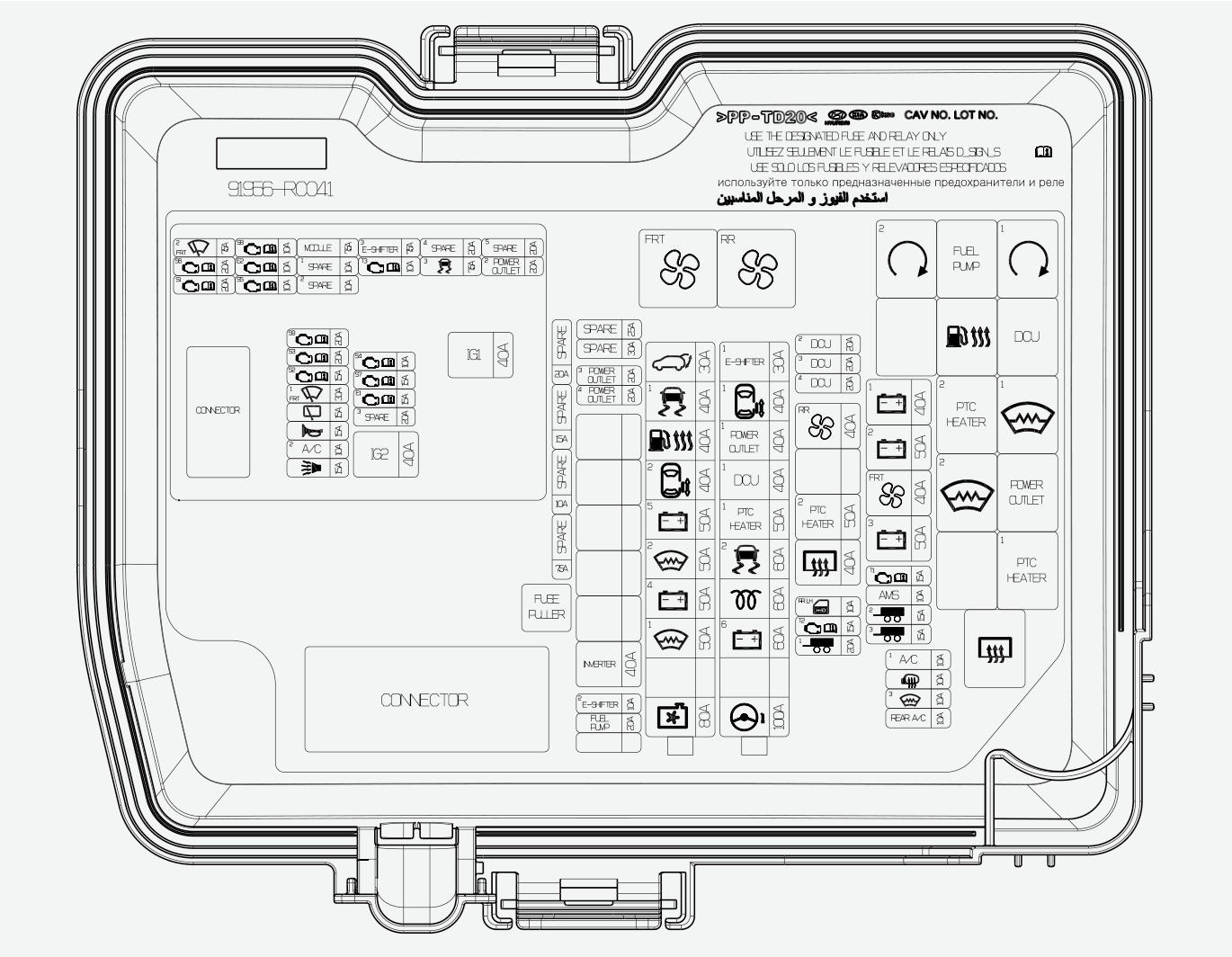

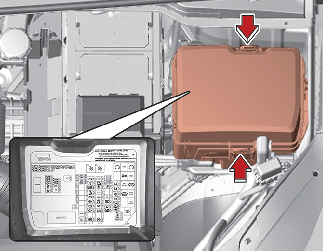

Engine compartment fuse panel
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
MULTI FUSE (TYPE A) |
|||
|
COOLING FAN |
 |
80A |
Cooling Fan Motor |
|
W/S HEATED GLASS1 |
 |
50A |
Windshield Heated Glass1 Relay |
|
B+4 |
 |
50A |
ICU Junction Block (Fuse - SUNROOF1, AMP, FRONT S/HEAT, PASSENGER P/WINDOW, REAR LH P/SEAT) |
|
W/S HEATED GLASS2 |
 |
50A |
Windshield Heated Glass2 Relay |
|
B+5 |
 |
50A |
ICU Junction Block (Fuse - REAR LH S/HEAT, DRIVER P/SEAT, DRIVER P/WINDOW, PASSENGER P/SEAT, SUNROOF2, REAR RH P/SEAT) |
|
PSD2 |
 |
40A |
Power Sliding Door Module |
|
FUEL HEATER |
 |
40A |
[Smartstream D2.2] Fuel Heater Relay |
|
ESP1 |
 |
40A |
ESP (Electronic Stability Program Control Module |
|
POWER TAILGATE |
 |
30A |
Power Tail Gate Module |
|
MULTI FUSE (TYPE B) |
|||
|
EPS |
 |
100A |
EPS (Electric Power Steering) Unit |
|
B+6 |
 |
60A |
PCB Block (Engine Control Relay, Wiper On Relay, Fuse - HORN, A/C2, B/ALARM, ECU1, IG2, IG1) |
|
GLOW |
 |
60A |
[Smartstream D2.2] Glow Control Unit |
|
ESP2 |
 |
60A |
ESP (Electronic Stability Program Control Module |
|
PTC HEATER1 |
 |
50A |
[Smartstream D2.2] PTC Heater1 Relay |
|
DCU1 |
 |
40A |
[Smartstream D2.2] DCU Relay |
|
POWER OUTLET1 |
 |
40A |
Power Outlet Relay |
|
PSD1 |
 |
40A |
Power Sliding Door Module |
|
E-SHIFTER1 |
 |
30A |
[With SBW (Shift By Wire)] SCU (System Control Unit) |
|
FUSE |
|||
|
DCU2 |
 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
DCU3 |
 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
DCU4 |
 |
20A |
[Smartstream D2.2] Dosing Control Module |
|
REAR BLOWER |
 |
40A |
Rear Blower Relay |
|
PTC HEATER2 |
 |
50A |
[Smartstream D2.2] PTC Heater2 Relay |
|
REAR HEATED |
 |
40A |
Rear Heated Relay |
|
DOOR LOCK RR LH |
 |
10A |
PCB Block (Rear Door LH Lock/Unlock Relay) |
|
TCU2 |
 |
15A |
TCM (Transmission Control Module) |
|
TRAILER1 |
 |
20A |
Trailer Connector |
|
B+1 |
 |
40A |
ICU Junction Block (Long Term Load Latch Relay, Fuse - TAIL GATE, DOOR LOCK, REAR RH S/HEAT, START, MODULE9, IBU2, AIR BAG2, BRAKE SWITCH) |
|
B+2 |
 |
50A |
ICU Junction Block (IPS1/IPS2/IPS5/IPS9/IPS10) |
|
FRONT BLOWER |
 |
40A |
Front Blower Relay |
|
B+3 |
 |
50A |
ICU Junction Block (IPS3/IPS4/IPS6/IPS7/IPS8) |
|
TCU1 |
 |
15A |
[Smartstream D2.2] TCM (Transmission Control Module) [Smartstream G3.5] TCM (Transmission Control Module), PCM (Power train Control Module) |
|
AMS |
 |
10A |
Battery Sensor |
|
TRAILER2 |
 |
15A |
Trailer Connector |
|
TRAILER3 |
 |
15A |
Trailer Connector |
|
A/C1 |
 |
10A |
[Auto A/C] Front A/C Control Module |
|
HEATED MIRROR |
 |
10A |
Driver/Passenger Power Outside Mirror, Front A/C Control Module, Front A/C Control Panel |
|
W/S HEATED GLASS3 |
 |
10A |
Front A/C Control Module, Front A/C Control Panel |
|
REAR A/C |
 |
10A |
Rear A/C Control Module |
|
POWER OUTLET3 |
 |
20A |
Front Power Outlet |
|
POWER OUTLET4 |
 |
20A |
Rear Power Outlet |
|
INVERTER |
 |
40A |
AC Inverter Module |
|
E-SHIFTER2 |
 |
10A |
[With SBW (Shift By Wire)] SCU (System Control Unit), Electronic ATM (Automatic Transmission) Shift Lever Switch |
|
FUEL PUMP |
 |
20A |
Fuel Pump Relay |
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
IG2 |
 |
40A |
IG2 Relay, Engine Room Junction Block (Start1 Relay) |
|
IG1 |
 |
40A |
IG1 Relay, ACC Relay |
|
WIPER FRT2 |
 |
7.5A |
IBU (Integrated Body Control Unit), ECM (Engine Control Module)/PCM (Power train Control Module) |
|
SENSOR6 |
 |
20A |
[Smartstream D2.2] PM (Particulate Matter) Sensor, Front Nox Sensor, Rear Nox Sensor [Smartstream G3.5] ECM (Engine Control Module)/PCM (Power train Control Module) |
|
SENSOR1 |
 |
20A |
[Smartstream D2.2] Rail Pressure Control Valve [Smartstream G3.5] Ignition Coil #1/#2/#3/#4/#5/#6 |
|
SENSOR8 |
 |
10A |
[Smartstream D2.2] Glow Control Unit |
|
ECU2 |
 |
10A |
ECM (Engine Control Module)/PCM (Power train Control Module) |
|
SENSOR5 |
 |
10A |
Engine Room Junction Block (Fuel Pump Relay) [Smartstream D2.2] Engine Room Junction Block (Fuel Heater Relay) |
|
MODULE |
 |
7.5A |
Front Radar |
|
SENSOR9 |
 |
20A |
[Smartstream D2.2] Fuel Metering Valve [Smartstream G3.5] ECM (Engine Control Module)/PCM (Power train Control Module) |
|
SENSOR3 |
 |
20A |
ECM (Engine Control Module)/PCM (Power train Control Module) |
|
SENSOR2 |
 |
15A |
[Smartstream D2.2] Lambda Sensor #1/#2 [Smartstream G3.5] Oxygen Sensor #3 |
|
WIPER FRT1 |
 |
30A |
Front Wiper Motor |
|
WIPER RR |
 |
15A |
Rear Wiper Relay, Rear Wiper Motor |
|
HORN |
 |
15A |
Horn Relay |
|
A/C2 |
 |
10A |
A/C Compressor Relay |
|
B/ALARM |
 |
15A |
Burglar Alarm Horn Relay |
|
E-SHIFTER3 |
 |
7.5A |
[With SBW (Shift By Wire)] SCU (System Control Unit) |
|
TCU3 |
 |
10A |
TCM (Transmission Control Module) |
|
SENSOR4 |
 |
10A |
[Smartstream D2.2] A/C Compressor Relay, Cooling Fan Motor, Stop Lamp Switch, Electronic Thermostat, Oil Level Sensor [Smartstream G3.5] A/C Compressor Relay, Cooling Fan Motor, Oxygen Sensor #1/#2/#4, Purge Control Solenoid Valve, Variable Oil Pump Solenoid, Variable Intake Solenoid Valve, Oil Control Valve #1/#2/#3/#4 |
|
SENSOR7 |
 |
15A |
[Smartstream D2.2] Electronic VGT Actuator, PTC Breather, Oil Pump Solenoid Valve, EGR Cooling Bypass Solenoid Valve, Engine Room Junction Block (PTC Heater1 Relay) [Smartstream G3.5] Injector #1/#2/#3/#4/#5/#6 (MPI) |
|
ECU1 |
 |
15A |
ECM (Engine Control Module)/PCM (Power train Control Module) |
|
ESP3 |
 |
7.5A |
ESP (Electronic Stability Program Control Module |
|
POWER OUTLET2 |
 |
20A |
Luggage Power Outlet |
Refer to the following table for the relay type.
|
Relay Name |
Symbol |
TYPE |
|---|---|---|
|
DCU |
 |
MICRO |
|
START #1 |
 |
MICRO |
|
FUEL PUMP |
 |
MICRO |
|
FUEL FILTER HEATING |
 |
MICRO |
|
PTC HEATER #1 |
 |
MICRO |
|
PTC HEATER #2 |
 |
MICRO |
|
FRT BLOWER |
 |
MINI |
|
REAR HEATED |
 |
MICRO |
|
RR BLOWER |
 |
MINI |
|
START #2 |
 |
MICRO |
|
W/S HEATED GLASS #1 |
 |
MICRO |
|
W/S HEATED GLASS #2 |
 |
MICRO |
|
POWER OUTLET |
 |
MICRO |

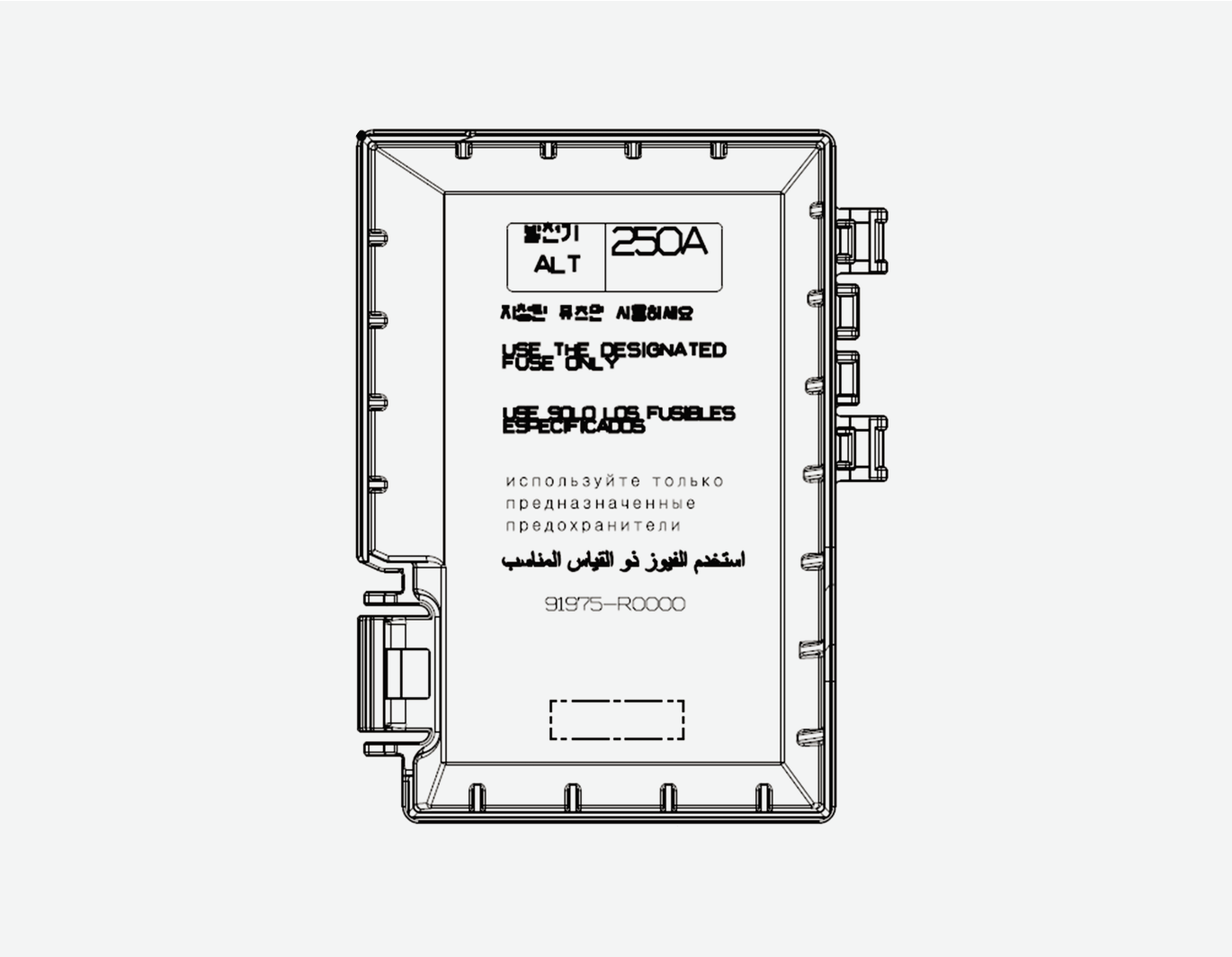

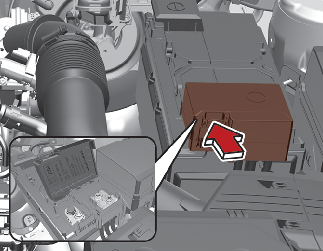

Engine compartment fuse panel (Battery terminal cover)
