Rear View Monitor operation

Operating conditions

Shift the gear to R (Reverse), the image will appear on the screen.

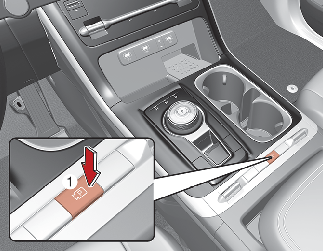

Press the Parking/View button (1) while the gear is in P (Park), the image will appear on the screen.

Off conditions

Press the Parking/View button (1) again while the gear is in P (Park) with the rear view on the screen, the rear view will turn off.
Shift the gear from R (Reverse) to P (Park), the rear view will turn off.

NOTICE

The rear view cannot be turned off when the gear is in R (Reverse).

Extended Rear View Monitor

The rear view will maintain showing on the screen to help you when parking.

Operating conditions

Shift the gear from R (Reverse) to N (Neutral) or D (Drive), the rear view will appear on the screen.

Off conditions

When vehicle speed is above 10 km/h (6 mph), the rear view will turn off.
Shift the gear to P (Park), the rear view will turn off.
If the view is being displayed in P (Park), press Parking/View button (1) to turn the view off.

Rear View while driving

The driver is able to check the rear view on the screen while driving, it is to assist with safe driving.

Operating conditions

Parking/View button (1) is pressed with the gear in D (Drive) or N (Neutral).

Off conditions

Parking/View button (1) is repressed.

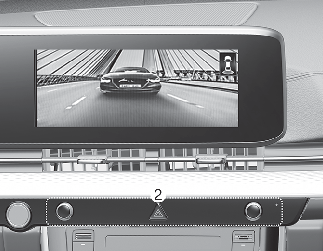

One of the infotainment system button (2) is pressed.

Rear top view

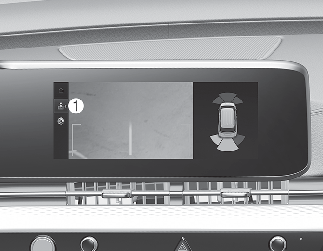

When you touch the icon (1), the top view is displayed on the screen and shows the distance from the vehicle in the back of your vehicle while parking.
