Blind-Spot Collision Warning operation
Warning
Blind-Spot Collision Warning will warn and control as following operation.
-
Vehicle detection
-
Collision warning
Vehicle detection
-

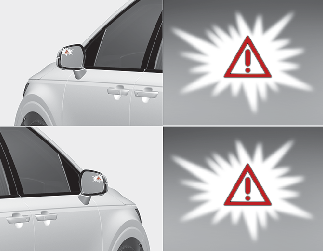

Warning light will appear in the outside rearview mirror.
Blind-Spot Collision Warning will operate as following circumstances.
-
Vehicle speed: Above 20 km/h (12 mph)
-
The speed of the vehicle in the blind spot area: Above 10 km/h (7 mph)
Collision warning
Collision warning will operate when the turn signal to change the lane in the direction of the vehicle in the blind spot area.
-
To warn the driver of a collision, the warning light on the side view mirror will blink. At the same time, an audible warning will sound.
-
When the turn signal is turned off or you move away from the lane, the collision warning will be canceled and the function will return to vehicle detection state.
If collision warning is selected in the Blind-Spot Safety setting, collision warning will be activated even if you approach the lane in the direction of the vehicle in the blind spot side.
-
The detecting range of the rear corner radar is determined by a standard road width, therefore, on a narrow road, the function may detect other vehicles in the next lane and warn you. In contrast, on a wide road, the function may not be able to detect a vehicle driving in the next lane and may not warn you.
-
When the hazard warning flasher is on, the collision warning by the turn signal will not operate.
-
If the driver's seat is on the left side, the collision warning may occur when you turn left. If the driver's seat is on the right side, the collision warning may occur when you turn right. Maintain a proper distance with the vehicles in the lane.
-
Images or colors may be displayed differently depends on the instrument cluster specifications or theme.
