Rear-view

OLQ2A005077
OLQ2A105058

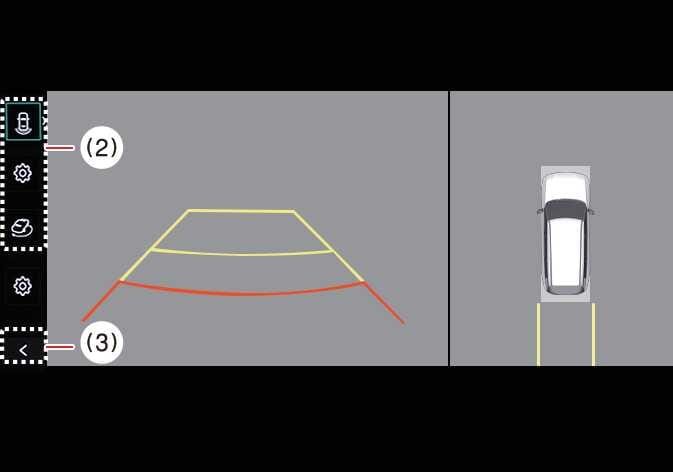

(2) View switching button

(3) back button

(4) infotainment system operation button

The Surround View Monitor’s Rear-view function assists you with safe parking by displaying activity behind the vehicle on the navigation system, according to your selected settings.

Parking

The Surround View Monitor’s Rear-view function activates when you are parking under the following conditions:

  • You press the Parking/View button (1), then select Rear View with the view switching button (2) while the gear is set to P (Park), N (Neutral), or D (Drive) with a speed below 6 mph (10 km/h).

  • You shift the gear to R (Reverse).

Press the view switching button (2) on the Surround View Monitor to select Top View, Front View, Side View, or Wide View.

The Surround View Monitor’s Rear-view function turns OFF when you are parking under the following conditions and the gear is set to P (Park), N (Neutral), or D (Drive):

  • You shift the gear from N (Neutral) or D (Drive) to P (Park).

  • You press the Parking/View button (1).

  • You press the back button (3) on the Surround View Monitor screen.

  • You press the infotainment system power button (4).

  • You drive above 6 mph (10 km/h).

The Surround View Monitor’s Rear-view function turns OFF when you shift the gear from R (Reverse) to P (Park).

TIP

  • The Rear View always displays when you shift the gear to R (Reverse).

  • When you shift the gear to R (Reverse), the video does not turn OFF if you press the infotainment system power button (4).
