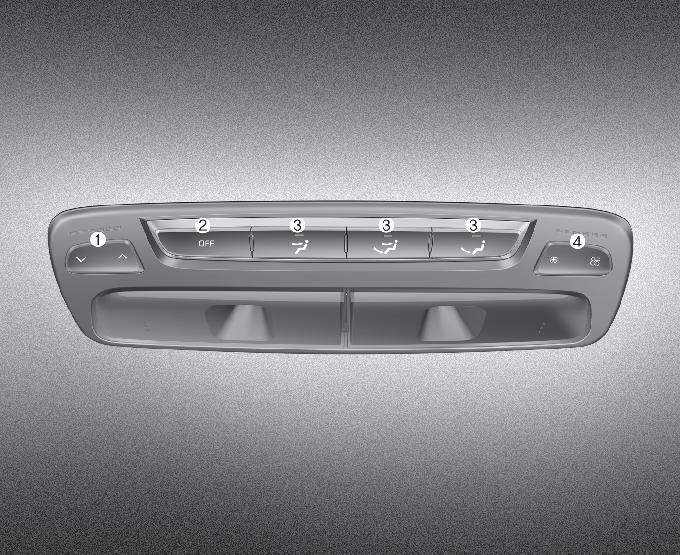

Rear

1. Rear temperature control button

2. Rear air conditioning OFF button

3. Rear mode selection button

4. Rear fan speed control button

If you operate the rear temperature, rear fan speed or rear mode on the rear climate control panel, the corresponding rear temperature, rear fan speed or rear mode will operate independently regardless of the front climate control system operation.

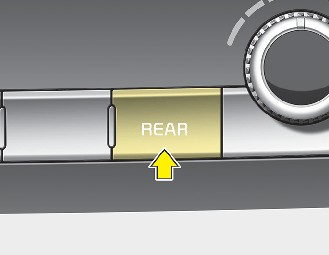

Press the REAR button and press the rear fan speed control button on the audio or multimedia screen. To change the fan speed, press () the button for higher speed, or press the () the button for lower speed.

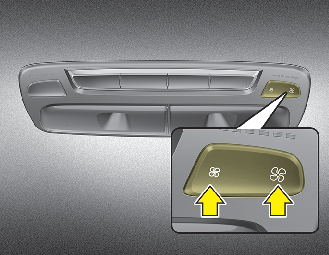

To change the rear fan speed, press the button () for higher speed, or press the button () for lower speed.

Press the REAR button and adjust the temperature on the audio or multimedia screen. Press the button (+) for warmer air or press the button (-) for cooler air.

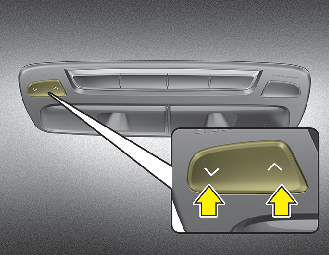

To change the rear air temperature, press the button () for warmer air or press the button () for cooler air.

To turn off the rear climate control system, press the REAR button located on the front climate control panel and OFF button on the audio or multimedia screen.

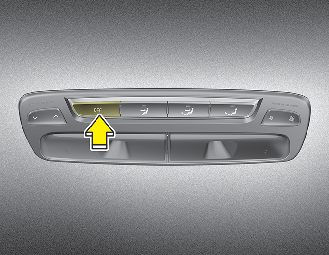

To turn off the rear climate control system, press the rear blower OFF button.

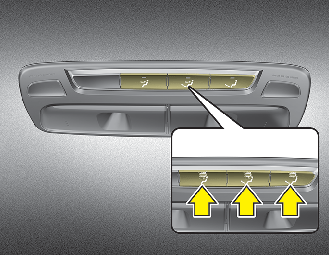

The rear mode is selected by pressing the rear mode selection button on the rear control panel as follows

• : Rear air blows from the upper vents.

• : Rear air blows from the upper vents on the rear ceiling and the lower vents.

• : Rear air blows from the right side lower vents.

• : Air discharged from [A] spreads over a wider area.

• : Air discharged from [B] has a centered and direct flow.

You can set the direction of air by adjusting the knob of air vents located above the 2nd-row and 3rd-row seats. Adjust the outer and central parts of the air vent to the desired positions.

NOTICE

If all the vents are closed, it may cause some noise. Always open 2 vents or more.
