Warning message and system control
Blind-Spot Collision Warning (BCW) system

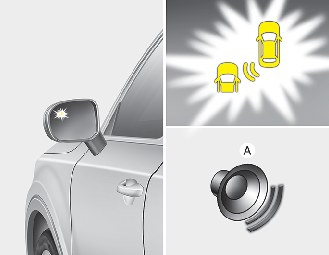

If a vehicle is detected within the boundary of the system, a warning light will illuminate on the outside rearview mirror and the head up display (if equipped).
Once the detected vehicle is no longer within the blind spot area, the warning will turn off according to the driving conditions of the vehicle.
Second stage alert
[A]: Warning sound
-
A vehicle has been detected in the blind spot area by the radar system AND.
-
The turn signal is applied (same side as where the vehicle is being detected).
When this alert is activated, the warning light on the outside rearview mirror and the head up display (if equipped) will also blink. And a warning chime will sound.
If you turn off the turn signal indicator, the second stage alert will be deactivated.
Once the detected vehicle is no longer within the blind spot area, the warning will turn off according to the driving conditions of the vehicle.
-
The warning light on the outside rearview mirror will illuminate whenever a vehicle is detected at the rear side by the system.
To avoid accidents, do not focus only on the warning light and neglect to see the surrounding of the vehicle.
-
Drive safely even though the vehicle is equipped with a Blind-Spot Collision Warning System (BCW). Do not solely rely on the system but check your surrounding before changing lanes or backing the vehicle up.
-
The system may not alert the driver in some conditions so always check your surroundings while driving.
-
The driver should always exercise extreme caution while operating the vehicle, whether or not the warning light on the outside rearview mirror illuminates or there is a warning alarm.
-
Playing the vehicle audio system at high volume may prevent you from hearing the Blind-Spot Collision Warning System warning sounds.
-
The warning of the Blind-Spot Collision Warning System may not sound while other system's warning sounds.
Blind-Spot Collision-Avoidance Assist (BCA) system
The Blind-Spot Collision-Avoidance Assist System (BCA) may apply braking power, when an approaching vehicle is detected within a certain distance next to/behind your vehicle.

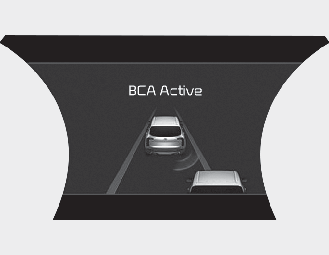

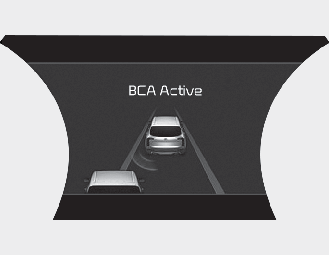

It gently applies braking power on the tire, which is located in the opposite side of the possibly-colliding point. The instrument cluster will inform the driver of the system activation.
Blind-Spot Collision-Avoidance Assist System (BCA) is automatically deactivated when:
-
The vehicle drives a certain distance away
-
The vehicle direction is changed against the possible-colliding point
-
The steering wheel is abruptly moved
-
The brake pedal is depressed
-
After a certain period of time
The driver should drive the vehicle in the middle of the vehicle lanes to keep the system in the ready status.
When the vehicle drives too close to one side of the vehicle lanes, the system may not properly operate.
In addition, the system may not properly control your vehicle in accordance with driving situations. Thus, always pay close attention to road situations.
-
The driver is responsible for accurate steering.
-
Do not unnecessarily operate the steering wheel, when the Blind-Spot Collision-Avoidance Assist System is in operation.
-
Always exercise extreme caution while driving. The Blind- Spot Collision-Avoidance Assist System may not operate or unnecessarily operate in accordance with your driving situations.
-
The Blind-Spot Collision- Avoidance Assist System is not a substitute for safe driving practices, but a convenience function only. It is the responsibility of the driver to always drive cautiously to prevent unexpected and sudden situations from occurring. Pay attention to the road conditions at all times.
Detecting Sensor (Camera and Radar)
Front camera
The front camera is a sensor detecting the lane. If the sensor is covered with snow, rain or foreign substance, the system may temporarily be cancelled and not work properly until the cancellation due to the degradation of the sensor's detection performance. Always keep the sensor clean.
* Refer to Lane Keeping Assist (LKA) System for cautions for the front camera sensor.

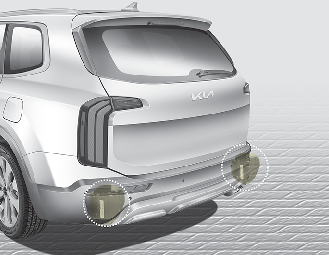

Rear radar
The rear radars are the sensors inside the rear bumper for detecting the side/rear areas. Always keep the rear bumper clean for proper operation of the system.
-
The system may not work properly when the bumper has been damaged, or if the rear bumper has been replaced or repaired.
-
The sensing range differs somewhat according to the width of the road. When the road is narrow, the system may detect other vehicles in the next lane.
-
The system may turn off due to strong electromagnetic waves.
-
Always keep the sensors clean.
-
NEVER arbitrarily disassemble the sensor component nor apply any impact on the sensor component.
-
Be careful not to apply unnecessary force on the radar sensor or sensor cover. If the sensor is forcibly moved out of proper alignment, the system may not operate correctly. In this case, a warning message may not be displayed.
Have the vehicle inspected by a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
-
Do not apply foreign objects such as a bumper sticker or a bumper guard near the radar sensor or apply paint to the sensor area. Doing so may adversely affect the performance of the sensor.
-
NEVER install any accessories or stickers on the front windshield, nor tint the front windshield.
-
Pay special attention to keep the camera sensor out of water.
-
NEVER locate any reflective objects (i.e. white paper, mirror) over the crash pad. Any light reflection may cause a malfunction of the system.

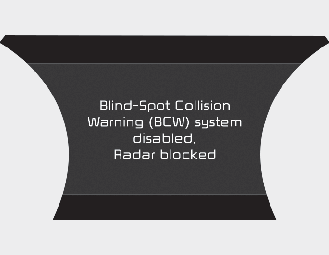

Blind-Spot Collision Warning (BCW) system disabled.
-
This warning message may appear when :
-
One or both of the sensors on the rear bumper is blocked by dirt or snow or a foreign object.
-
Driving in rural areas where the sensor does not detect another vehicle for an extended period of time.
-
When there is inclement weather such as heavy snow or rain.
-
If any of these conditions occur, the light on the BCW switch and the system will turn off automatically.
When the BCW canceled warning message is displayed in the cluster, check to make sure that the rear bumper is free from any dirt or snow in the areas where the sensor is located. Remove any dirt, snow, or foreign material that could interfere with the radar sensors.
After any dirt or debris is removed, the BCA should operate normally after about 10 minutes of driving the vehicle.
If the system still does not operate normally, have your vehicle inspected by a professional workshop. Kia recommends to contact an authorized Kia dealer/service partner.
Turn off the BCW and BCA system (if equipped) when a trailer or carrier is installed.
-
Press the BCW/BCA button (the indicator on the button extinguish)
-
Deactivate the RCCW system by deselecting
"User Settings → Driver Assistance → Parking Safety → Rear Cross-Traffic Safety" (if equipped) If you use BCW and BCA system, remove a trailer or carrier.

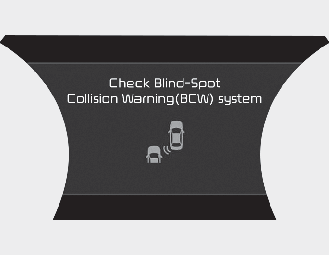

Check Blind-Spot Collision Warning (BCW) system
If there is a problem with the BCW system, a warning message will appear and the light on the switch will turn off. The system will turn off automatically. BCA will not operate also if the BCW system turns off due to malfunction. In this case, have your vehicle inspected by a professional workshop. Kia recommends to contact an authorized Kia dealer/service partner.

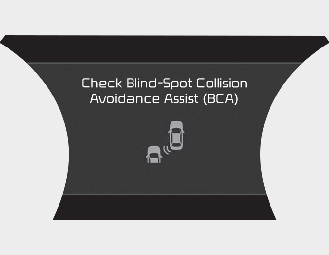

Check Blind-Spot Collision-Avoidance Assist (BCA) system
If there is a problem with the BCA system, a warning message will appear. The system will turn off automatically. BCW will still operate even if the BCA system turns off due to malfunction. In this case, have your vehicle inspected by a professional workshop. Kia recommends to contact an authorized Kia dealer/service partner.
