System setting and activation

System setting

  • To turn ON the Driver Attention Warning (DAW) system, turn on the engine, and then select "User Settings → Driver Assistance → Driver Attention Warning" on the LCD display.

  • The set-up of the Driver Attention Warning (DAW) system will be maintained, as selected, when the engine is re-started.

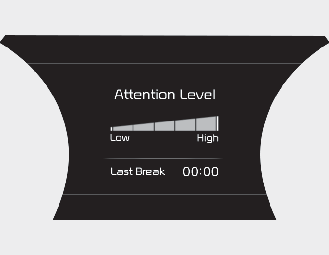

Display of the driver's attentionlevel

  • The driver can monitor their driving conditions on the LCD display.

    The DAW screen will appear when you select the ASSIST mode tab ()on the LCD display if the system is activated. (For more details, refer to "LCD Display" in chapter4.)

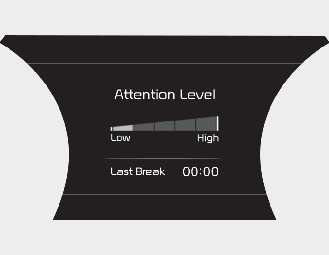

  • The driver's attention level is displayed on the scale of 1 to 5. The lower the level is, the more inattentive the driver is.

  • The level decreases when the driver does not take a break for a certain period of time.

  • The level increases when the driver attentively drives for a certain period of time.

  • When the driver turns on the system while driving, it displays 'Last Break time' and level reflected that.
