Filter replacement

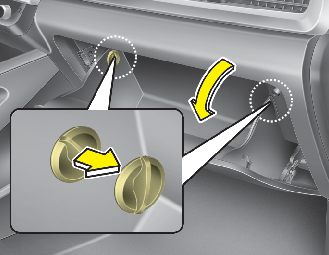

  1. Open the glove box and remove the stoppers on both sides.

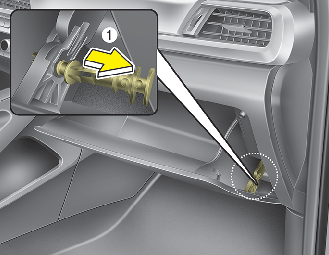

  1. With the glove box open, pull the pin and the support strap (1).

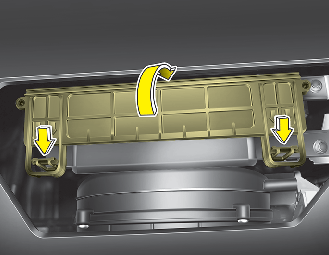

  1. Remove the climate control air filter cover while pressing the lock on the upper side of the cover

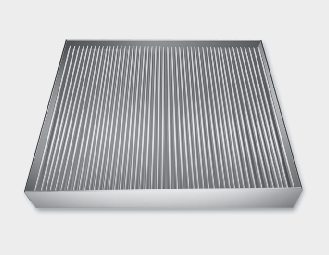

  1. Replace the climate control air filter.

  2. Reassemble in the reverse order of disassembly.

NOTICE

When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
