Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.
Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

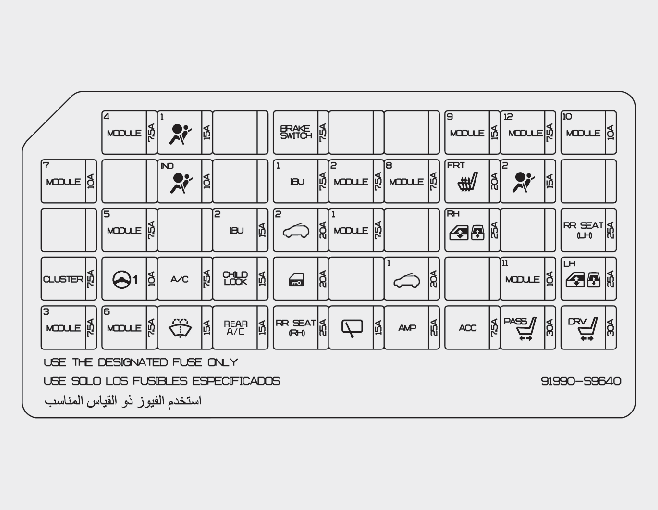

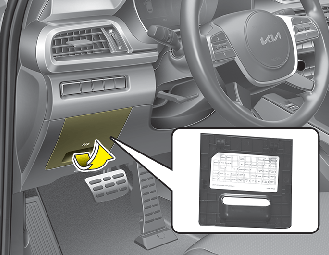

Driver’s side fuse panel
|
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|
 |
7.5A |
Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch |
 |
15A |
SRS (Supplemental Restraint System) Control Module |
 |
10A |
IBU (Integrated Body Control Unit), Stop Lamp Switch |
 |
15A |
Instrument Cluster, A/V & Navigation Head Unit, Audio,Front A/C Control Module, Driver IMS (Integrated memory system) Control Module,Driver Door Module, Driver/Passenger Power Outside Mirror |
 |
7.5A |
Head-Up DISPLAY |
 |
10A |
Data Link Connector, Blind-Spot Collision Warning Unit LH/RH, Rear A/C Control Module, Electro Chromic Mirror, Front Wireless Charger, Front Console Switch |
 |
10A |
Head Lamp LH/RH, Crash Pad Switch |
 |
10A |
Instrument Cluster |
 |
7.5A |
IBU (Integrated Body Control Unit) (Mirror B+) |
 |
7.5A |
Surround View Monitor Unit, AC Inverter Unit, AC Inverter Outlet, Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module, 2nd Air Ventilation Seat Control Module LH/RH, 2nd Seat Warmer Control Module LH/RH |
 |
7.5A |
Rain Sensor, Hazard Switch, Mood Lamp Control Unit,Driver/Passenger Smart Key Outside Handle, Driver/Passenger Mood Lamp, Rear Door Mood Lamp LH/RH,Driver/Passenger Door Mood Lamp |
 |
20A |
Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module |
 |
15A |
SRS (Supplemental Restraint System) Control Module |
 |
7.5A |
IBU (Integrated Body Control Unit), Crash Pad Switch, Multifunction Camera Unit,Smart Cruise Control Radar, Auto Transmission Shift Lever Indicator,4WD ECM, Electronic Parking Brake Switch, Front Console Switch |
 |
15A |
IBU (Integrated Body Control Unit) (B+) |
 |
20A |
Rear Sunroof Controller |
 |
7.5A |
IBU (Integrated Body Control Unit) (IG2) |
 |
25A |
Passenger Safety Power Window Module,Rear Safety Power Window Module RH,Rear Power Window Switch RH |
 |
25A |
2nd Air Ventilation Seat Control Module LH,2nd Seat Warmer Control Module LH,2nd Seat LH Reclining Folding Actuator |
 |
7.5A |
Instrument Cluster, Head-Up Display |
 |
10A |
MDPS (Motor Driven Power Steering) Unit (C-MDPS (Motor Driven Power Steering)) |
 |
7.5A |
Front A/C Control Module, Rear A/C Control Module,E/R Junction Block (RLY. 1 (Front Blower Relay),RLY. 11 (Rear Blower Relay)) |
 |
15A |
ICM Relay Box (Child Lock Relay, Child Unlock Relay) |
 |
20A |
Door Lock Relay, Door Unlock Relay, Tail Gate Relay |
 |
20A |
Front Sunroof Controller |
 |
10A |
Rear Occupant Detection Sensor |
 |
25A |
Driver Safety Power Window Module,Rear Safety Power Window Module LH,Rear Power Window Switch LH |
 |
7.5A |
IBU (Integrated Body Control Unit) (IG1) |
 |
7.5A |
A/V & Navigation Head Unit, Audio, Center Facia Keyboard,Front A/C Control Module, Driver/Passenger Warmer Switch,Driver/Passenger Warmer LIN Switch, Electro Chromic Mirror,Front Air Ventilation Seat Control Module,Front Seat Warmer Control Module, Driver IMS (Integrated memory system) Control Module,2nd Air Ventilation Seat Control Module LH/RH,2nd Seat Warmer Control Module LH/RH,Rear Power Window Switch LH/RH |
 |
15A |
Multifunction Switch |
 |
25A |
2nd Air Ventilation Seat Control Module RH,2nd Seat Warmer Control Module RH,2nd Seat RH Reclining Folding Actuator |
 |
25A |
AMP (Amplifier) |
 |
15A |
Rear Wiper Relay, Rear Wiper Motor |
 |
7.5A |
IBU (Integrated Body Control Unit), AMP, Surround View Monitor Unit, Center Facia Keyboard,A/V & Navigation Head Unit, Audio, Front Wireless Charger |
 |
30A |
Passenger Seat Manual Switch |
 |
30A |
Driver IMS (Integrated memory system) Control Module, Driver Seat Manual Switch |

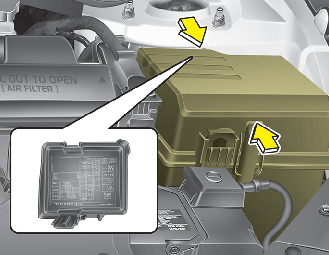

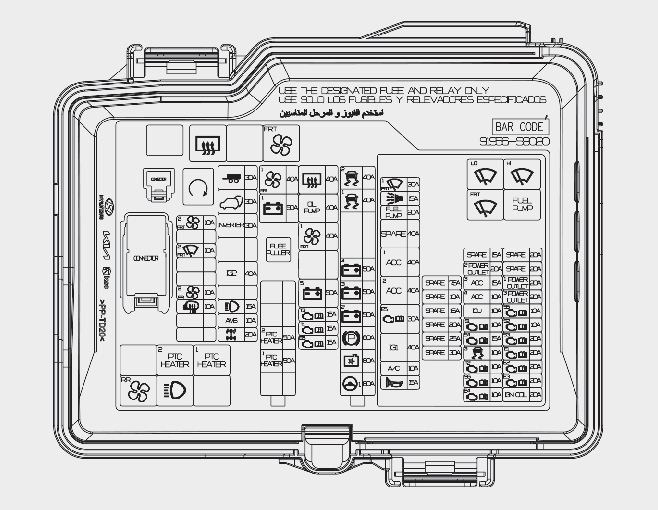

Engine compartment fuse panel

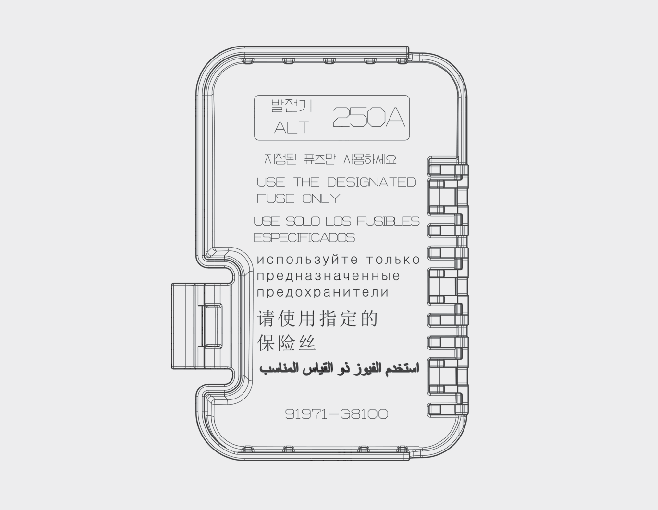

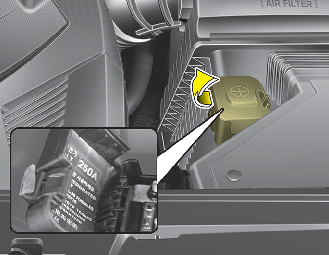

Engine compartment fuse panel (Battery terminal cover)
|
Fuse Name |
Symbol |
Fuse rating |
Circuit Protected |
|---|---|---|---|
|
MULTI FUSE |
 |
40A |
ESP (Electronic Stability Program Control Module |
 |
40A |
ESP (Electronic Stability Program Control Module |
|
 |
50A |
ICU Junction Block (Fuse - Rain Sensor, Hazard Switch, Mood Lamp Control Unit,Driver/Passenger Smart Key Outside Handle, Driver/Passenger Mood Lamp, Rear Door Mood Lamp LH/RH,Driver/Passenger Door Mood Lamp/Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module/Passenger Safety Power Window Module,Rear Safety Power Window Module RH,Rear Power Window Switch RH/Front Sunroof Controller/AMP (Amplifier)) |
|
 |
50A |
ICU Junction Block (Fuse - 2nd Air Ventilation Seat Control Module LH,2nd Seat Warmer Control Module LH,2nd Seat LH Reclining Folding Actuator/Rear Occupant Detection Sensor/Driver Safety Power Window Module,Rear Safety Power Window Module LH,Rear Power Window Switch LH/Passenger Seat Manual Switch/Driver IMS (Integrated memory system) Control Module, Driver Seat Manual Switch) |
|
 |
50A |
ICU Junction Block (IPS8/IPS10/IPS11/IPS13/IPS14/IPS15) |
|
 |
60A |
ESP (Electronic Stability Program Control Module |
|
 |
80A |
Cooling Fan Controller |
|
 |
80A |
MDPS (Motor Driven Power Steering) Unit (Column Type) |
|
|
FUSE |
 |
40A |
Rear Heated Relay |
 |
40A |
Front Blower Relay |
|
 |
50A |
ICU Junction Block (Fuse - IBU, Stop Lamp Switch/IBU (Mirror B+)/IBU (B+)/Rear Sunroof Controller/ICM Relay Box (Child Lock Relay, Child Unlock Relay)/Door Lock Relay, Door Unlock Relay, Tail Gate Relay/IBU, Stop Lamp Switch3/IBU, Stop Lamp Switch4) |
|
 |
15A |
TCM (Transmission Control Module) |
|
 |
15A |
TCM (Transmission Control Module) |
|
 |
15A |
ECM (Engine Control Module) |
|
 |
40A |
Rear Blower Relay |
|
 |
50A |
ICU Junction Block (Long Term Load Latch Relay (Fuse - Instrument Cluster, A/V & Navigation Head Unit, Audio,Front A/C Control Module, Driver IMS (Integrated memory system) Control Module,Driver Door Module, Driver/Passenger Power Outside Mirror/F/8), Short Term Load Latch Relay (Fuse - Data Link Connector, Blind-Spot Collision Warning Unit LH/RH, Rear A/C Control Module, Electro Chromic Mirror, Front Wireless Charger, Front Console Switch/SRS Control Module),IPS1/IPS2/IPS3/IPS4/IPS5/IPS6/IPS7,) |
|
 |
30A |
Power Tail Gate Module |
|
 |
30A |
AC Inverter Unit |
|
 |
40A |
Start Relay, PCB (Printed Circuit Board) Block (IG2 Relay) |
|
 |
15A |
Head Lamp HI Relay |
|
 |
10A |
Battery Sensor |
|
 |
20A |
4WD ECM (Engine Control Module) |
|
 |
10A |
Front A/C Control Module (Auto A/C) |
|
 |
10A |
IBU, Front Wiper Motor, PCB (Printed Circuit Board) Block (Wiper Low Relay) |
|
 |
10A |
Rear A/C Control Module |
|
 |
10A |
Front A/C Control Module, Driver/Passenger Power Outside Mirror (Defogger) |
|
 |
30A |
Wiper Front Relay |
|
 |
15A |
B/Alarm Horn Relay |
|
 |
20A |
Fuel Pump Relay |
|
 |
20A |
Front Power Outlet |
|
 |
15A |
Rear USB Charger, Luggage USB Charger, Driver/Passenger Seat Cushion USB Charger |
|
 |
20A |
Luggage Power Outlet |
|
 |
10A |
Front USB Charger, Rear USB Charger RH |
|
 |
20A |
Rear Power Outlet |
|
 |
10A |
ICU Junction Block (Fuse - IBU, Stop Lamp Switch7) |
|
 |
10A |
Oil Pump Solenoid |
|
 |
10A |
Fuel Pump Relay |
|
 |
10A |
A/C Relay, Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Variable |
|
 |
15A |
Oxygen Sensor #1/#2/#3/#4 |
|
 |
20A |
Cooling Fan Controller |
|
 |
10A |
ESP (Electronic Stability Program Control Module, Data Link Connector |
|
 |
20A |
ECM (Engine Control Module) |
|
 |
10A |
A/C Relay |
|
 |
10A |
TCM (Transmission Control Module), Transaxle Range Switch |
|
 |
20A |
ECM (Engine Control Module) |
|
 |
15A |
Horn Relay |
|
 |
20A |
ECM (Engine Control Module) |
|
 |
10A |
ECM (Engine Control Module) |
|
 |
20A |
Ignition Coil #1/#2/#3/#4/#5/#6 |
|
 |
40A |
ACC1 Relay |
|
 |
40A |
ACC2 Relay |
|
 |
30A |
Engine Control Relay |
|
 |
40A |
IG1 Relay |
|
Symbol |
Relay Name |
Type |
|---|---|---|
 |
Front Blower Relay |
MINI |
 |
Rear Heated Relay |
MINI |
 |
Start Relay |
MICRO |
 |
Head Lamp HI Relay |
MICRO |
 |
Rear Blower Relay |
MICRO |
