LKA operation

To activate/deactivate the LKA (For Middle East) :

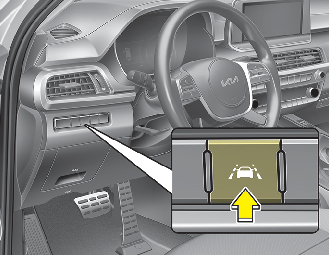

With the ENGINE START/STOP button in the ON position, press the LKA button located on the instrument panel on the lower left hand side of the driver.

The indicator () in the cluster display will initially illuminate white. When the indicator (white) activated in the previous ignition cycle, the system turns on without any control. If you press the LKA button again, the indicator on the cluster display will go off.

To activate/deactivate the LKA (Except Middle East) :

With the ENGINE START/STOP button in the ON position, LKA turns on automatically. The indicator ()in the cluster display will initially illuminate white. If you press the LKA button located on the instrument panel on the lower left hand side of the driver, LKA will be turned off and the indicator on the cluster display will go off.

The color of indicator will change depend on the condition of LKA.

  • White: Sensor does not detect the lane marker or vehicle speed is less than 60 km/h (37 mph).

  • Green: Sensor detects the lane marker and system is able to control the steering.

LKA activation

  • To see the LKA system screen onthe LCD display in the cluster,select ASSIST mode (). Formore details, refer to "LCDDisplay" in chapter 4.

  • After LKA is activated, if both lanemarkers are detected, vehiclespeed is over 60 km/h (37 mph)and all the activation conditions aresatisfied, a green steering wheelindicator will illuminate and the steering wheel will be controlled.

WARNING

The Lane Keeping AssistSystem is a system to help preventthe driver from leaving thelane. However, the driver shouldnot solely rely on the systembut always check the road conditions when driving.

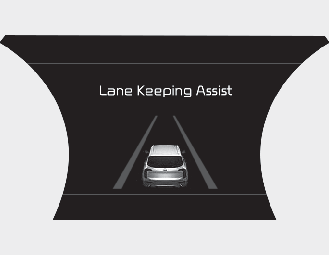

Lane marker undetected

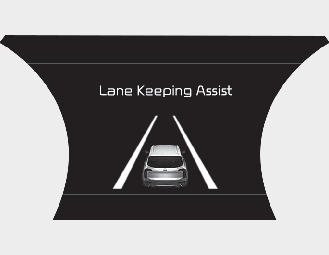

Lane marker detected

If the speed of the vehicle is over 60km/h (37 mph) and the systemdetects lane markers, the colorchanges from gray to white.

Warning

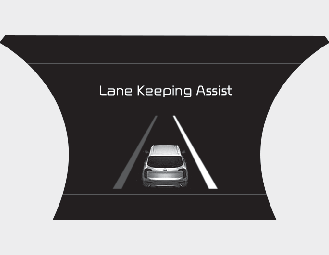

Left lane marker

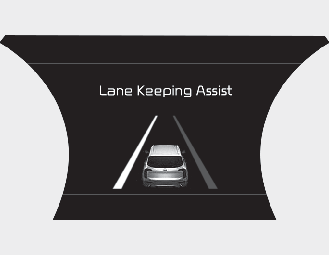

Right lane marker

If the vehicle leaves a lane, the lanemarker you cross will blink on theLCD display and the warning soundis provided.

If all the conditions to activate LKA isnot satisfied, the system will convertto LDW (Lane Departure Warning)and warn the driver only when thedriver crosses the lane lines.

Lane Keeping Assist is enabled

When the conditions below are met, LKA will be enable to assist steering.

  • Vehicle speed is above 60 km/h (37 mph).

  • Both lane markers are detected by LKA.

  • The vehicle is between the lane markers.

If LKA can assist steering, a green steering wheel indicator will illuminate.

If the vehicle moves out its lanebecause steering torque for assistanceis not enough, the line indicatorof deviation direction will blinkand the warning sound is provided.

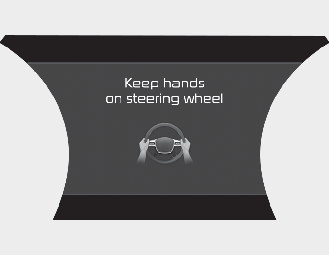

Keep hands on steering wheel (When LKA is activated)

If the driver takes their hands off the steering wheel for several seconds while the LKA system is activated, the system will warn the driver.

WARNING

  • The warning message may appear late according to road conditions. Therefore, always have your hands on the steering wheel while driving.

  • If you hold the steering wheel lightly, the system would generate hands off warning because LKA can treat the situation as you do not grab the wheel.
