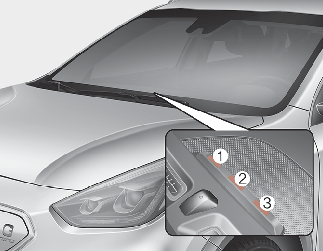

Charge Indicator Lamp for Electric Vehicle
When charging the high voltage battery, the charging & the charge level can be checked from outside the vehicle.
|
Operation of Charging Indicator Lamp |
Details |
|||
|---|---|---|---|---|
|
(1) |
(2) |
(3) |
||
|
○ (OFF) |
○ (OFF) |
○ (OFF) |
Not charging |
|
|
Blinking |
○ (OFF) |
○ (OFF) |
Charging |
0~33% |
|
● (ON) |
Blinking |
○ (OFF) |
34~66% |
|
|
● (ON) |
● (ON) |
Blinking |
67~99% |
|
|
● (ON) |
● (ON) |
● (ON) |
Charging complete (100%) (turns OFF in 5 seconds) |
|
|
Blinking |
Blinking |
Blinking |
Error while charging |
|
|
○ (OFF) |
○ (OFF) |
Blinking |
Charging 12 V auxiliary battery or reserved air conditioner is operating |
|
|
○ (OFF) |
Blinking |
○ (OFF) |
Reserved charging is operating (turns OFF after 3 minutes) or interruptions that temporarily prevent charging (e.g. power failure) |
|
