Replacing tail lamp (inside) (Bulb type) bulb
1
Open the liftgate.
2

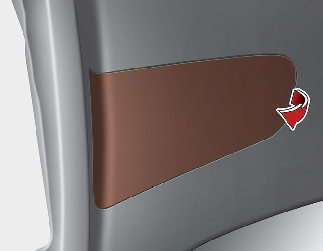

Remove the service cover.
3

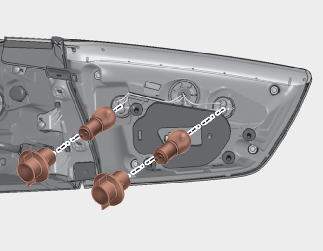

Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots
on the assembly.
4
Remove the bulb from the socket by pressing it in and rotating it counter-clockwise until the tabs on the bulb align with
the slots in the socket. Pull the bulb out of the socket.
5
Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
6
Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly. Push the socket into
the assembly and turn the socket clockwise.
7
Install the service cover by putting it into the service hole.
