Fuse/relay panel description

Inside the fuse/relay panel covers, you can find the fuse/relay label describing fuse/relay name and capacity.

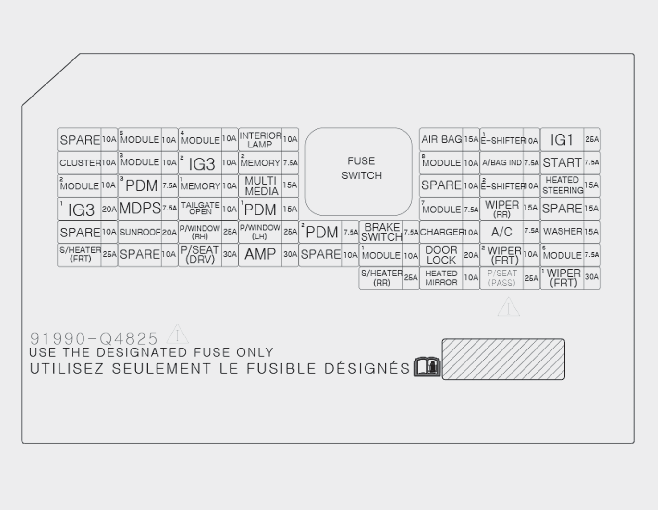

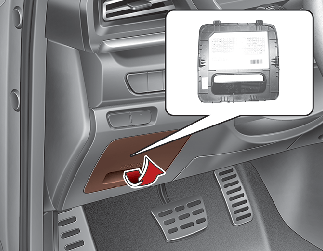

Driver's side fuse panel

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

Fuse Name

Fuse rating

Circuit Protected

MODULE 5

10 A

Crash Pad Switch, ECM (Electro Chromic Mirror), Audio / Video & Navigation Head Unit, Head Lamp Leveling Device Actuator LH/RH, Front Seat Warmer Control Module, Rear Seat Warmer Control Module, Auto Head Lamp Leveling Device Module, Front Air Ventilation Seat Control Module, Amp, KEYBOARD, OBD

MODULE 4

10 A

Crash Pad Switch, MFC Module, AEB module, Blind Spot Detection Radar Left Handle side / Right Handle side, VESS, console upper EXTN (STR'G WHEEL HEATED)

INTERIOR LAMP

10 A

Luggage Lamp, Front Vanity Lamp LH/RH, Room Lamp, Overhead Console Lamp, Rain Sensor, Wireless Charger

A/BAG

15 A

ACU (Airbag Control Unit), ODS

E-SHIFTER 1

10 A

Console Upper EXTN (SBW)

IG 1

25 A

PCB Block (FUSE-IEB2, EPCU2)

CLUSTER

10 A

Cluster

MODULE 3

10 A

BCM (Body Control Module), Driver/Passenger Door Module, Stop Lamp Switch

IG3_2

10 A

Fuel Filler Door & Battery Charge Switch, Cluster, Charger Indicator, Air Conditioner Control Module, Audio / Video & Navigation Head Unit, Audio, IG3, PTC Heater Charger Control Module

MEMORY 2

7.5 A

VESS, BATT_COOL_EXV

A/BAG IND

7.5 A

Cluster, Air Conditioner Control Module

START

7.5 A

EPCU, Smart Key Control Module

MODULE 2

10 A

O/S Mirror, Power Outlet Relay, Amp, BCM (Body Control Module), Wireless Charge Unit, USB/Charge Unit, Smart Key Control Module, Audio Unit, KEYBOARD

BUTTON START 3

7.5 A

Smart Key Control Module

MEMORY 1

10 A

Driver/Passenger Door Module, IMS (Driver Integrated Memory System Module), Cluster, Air Conditioner Control Module, ECM (Electro Chromic Mirror), Auto Light & Photo Sensor, BCM (Body Control Module), Active Air Flap Unit

MULTI MEDIA

15 A

Audio / Video & Navigation Head Unit, Keyboard

E-SHIFTER 2

10 A

SBW Control Unit

HEATED STEERING

15 A

BCM (Body Control Module)

IG3_1

20 A

IG3_1 Relay

MDPS

7.5 A

MDPS Unit

TAIL GATE

10 A

Tail Gate Relay

BUTTON START 1

15 A

Smart Key Control Module

MODULE 7

7.5 A

Front Seat Warmer Control Module / Front Air Ventilation Seat Control Module, Rear Seat Warmer Control Module, AC Inverter Module

WIPER (REAR)

15 A

Engine Room Junction Block (Rear Wiper Relay), Rear Wiper Motor

SUNROOF

20 A

Sunroof Motor

P/WINDOW RH

25 A

Power Window Right Handle Side Relay, Passenger Safety Power Window Module (LHD), Driver Safety Power Window Module (RHD)

P/WINDOW LH

25 A

Power Window Right Handle Side Relay, Passenger Safety Power Window Module (LHD), Passenger Safety Power Window Module (RHD)

BUTTON START 2

7.5 A

Start/Stop Button Switch, Smart Key Control Module

BRAKE SWITCH

7.5 A

Stop Lamp Switch, Smart Key Control Module

CHARGER

10 A

Charge Control Module, Charger Lock/Unlock Relay, C_C_Lamp

A/CON

7.5 A

Air Conditioner Control Module, Ionizer

WASHER

15 A

Multifunction Switch

S/HEATER (FRT)

25 A

Front Seat Warmer Control Module

P/SEAT (DRV)

30 A

Driver Seat Manual Switch, Driver Integrated Memory System Module

AMP

30 A

AMP

MODULE 1

10 A

Hazard Switch, BCM (Body Control Module), OBD, Driver Smart Key Outside Handle, Passenger Smart Key Outside Handle, Driver Door Module, Passenger Door Module, Mood Lamp, O/S MIRR FOLDING/UNFOLDING RLY

DOOR LOCK

20 A

Door Lock/Unlock Relay, ICM Relay Box (T/TURN UNLOCK Relay)

WIPER 2 (FRT)

10 A

BCM (Body Control Module), Wiper Motor, Engine Room Junction Block (Front Wiper (Low) Relay)

MODULE 6

7.5 A

BCM (Body Control Module), Smart Key Control Module

S/HEATER (REAR)

25 A

Rear Seat Warmer Control Module

HEATED MIRROR

10 A

Driver/Passenger Power Outside Mirror, Air conditioner Control Module, RR HTD, RR HTD RLY

WIPER 1 (FRT)

30 A

Wiper Motor, Engine Room Junction Block (Front Wiper (LOW) Relay)

P/SEAT (PASS)

25 A

Passenger Seat Module

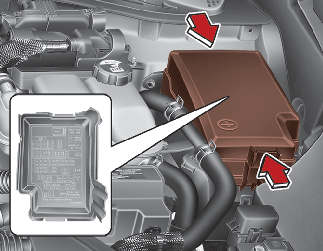

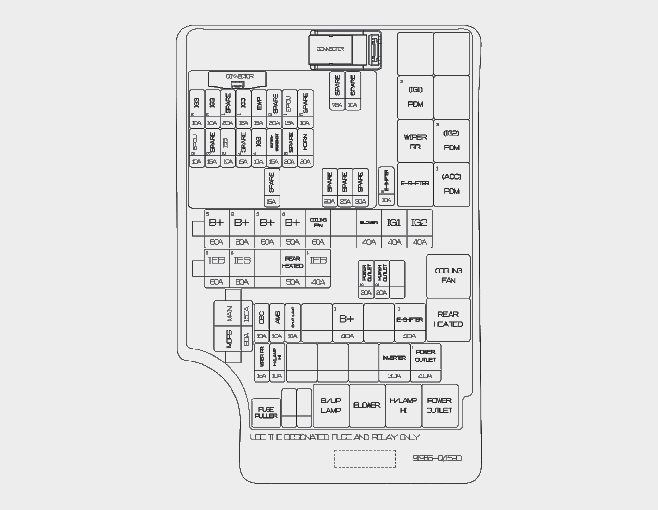

Motor compartment fuse panel

Refer to the following table for a description of the fuse.

Fuse Name

Fuse rating

Circuit Protected

MUTL FUSE

B + 5

60 A

PCB-Block (Fuse -EPCU1, BMS, B/Alarm Horn, Horn Relay - Main)

B + 2

60 A

IGPM (Fuse - S/HEATER (REAR), ARISU (4CH), IPS (2CH), IPS (2CH)

B + 3

60 A

IGPM (ARISU (4CH), IPS (2CH), IPS (2CH), IPS (2CH), IPS (1CH)

B + 4

50 A

IGPM (Fuse - Tail Gate, Sunroof, P/window RH, P/window LH. S/Heater (FRT), P/Seat (DRV), AMP, IG3_1, CHARGER

COOLING FAN 1

60 A

Cooling Fan Relay

BLOWER

40 A

Blower Relay

IG 1

40 A

Button Start #2 (IG1) Relay, Button Start #1 (ACC) Relay

IG 2

40 A

Button Start #3 (IG2) Relay

IEB 3

60 A

IDB_MTR+2

IEB 4

60 A

IDB_MTR+1

REAR HEATED

50 A

Rear Heated Relay

IEB 1

40 A

IDB Unit, OBD

MAIN

150 A

Fuse - Power Outlet 1, AC Inverter Module, Head Lamp (high), Rear Wiper

MDPS

80 A

MDPS Unit

FUSE

E-SHIFTER 2

10 A

E-SHIFTER Relay

POWER OUTLET 3

20 A

P/OUTLET Relay

POWER OUTLET 2

20 A

P/OUTLET Relay

OBC

10 A

OBC Unit

AMS

10 A

Battery SNSR

B/UP LAMP

10 A

B/UP LAMP Relay

B + 1

40 A

IGPM (Fuse - BUTTON START1, BUTTON START 2, BRAKE SWITCH, MODULE 1 DOOR LOCK leak current Autocut Device)

E-SHIFTER 1

40 A

E-SHIFTER 1 Relay

REAR WIPER

15 A

Rear Wiper Relay

HEAD LAMP HI

10 A

H/LAMP HI Relay

INVERTER

30 A

AC Inverter Module

POWER OUTLET 1

40 A

Power Outlet Relay

IG3_2

10 A

OBC Unit

EWP

15 A

Electric Water Pump (Battery), Electric Water Pump (PE)

IG3_3

10 A

Cooling Fan Relay, E-Compressor, Blow Relay, EPCU

IG3_4

10 A

BMS Unit, Active Air Flap Unit, 3 WAY_VALVE (RH/LH), B/UP LP Relay

IG3_1

15 A

IG3_1 Relay

EPCU 1

15 A

EPCU

BMS

15 A

BMS Unit

HORN

20 A

HORN Relay

IEB 2

10 A

IDB Unit, Multipurpose Check Connector

EPCU 2

10 A

EPCU

Refer to the following table for the relay type.

Relay Name

Type

Button Start #2 (IG1) Relay

MICRO

Rear Wiper Relay

MICRO

Button Start #3 (IG2) Relay

MICRO

E-SHIFTER Relay

MICRO

Button Start #1 (ACC) Relay

MICRO

Cooling Fan Relay

MINI

Rear Heated Relay

MINI

B/UP Lamp Relay

MICRO

Blower Relay

MICRO

HEAD LAMP HI Relay

MICRO

Power Outlet Relay

MICRO

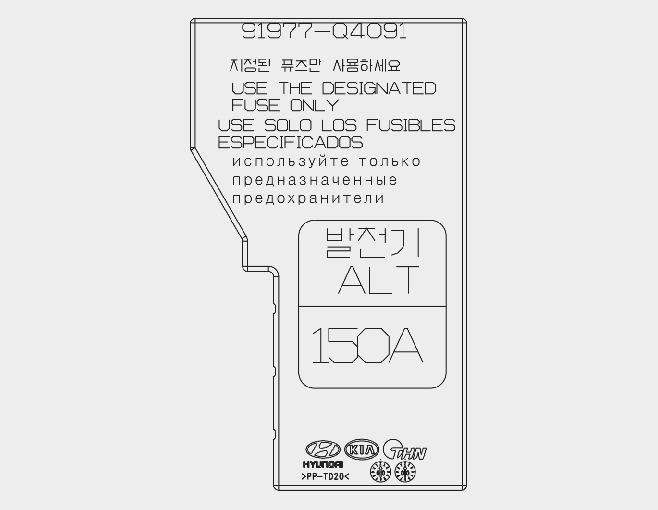

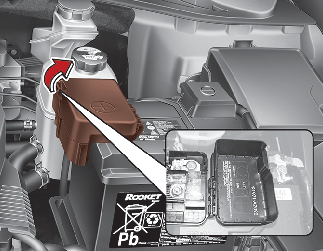

Battery terminal cover

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label.
