LCD Display Modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)	Driving Assist	User Settings	Master warning
Up/Down	Consumption Info	Route Guidance	Lane Departure Warning/Lane Keeping Assist/Smart Cruise Control/Lane Following Assist/Highway Driving Assist	Driver Assistance	The Master Warning mode displays warning messages related to the vehicle when one or more functions is not operating normally.
	Accumulated Info	Destination Info		Door
	Drive Info			Lights
	Driving Style			Sound
	Energy Flow			Convenience
			Driver Attention Warning	Service Interval
			Tire Pressure	Other features
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

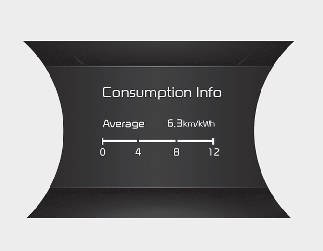

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

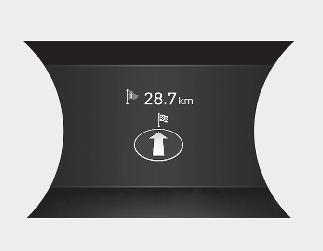

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

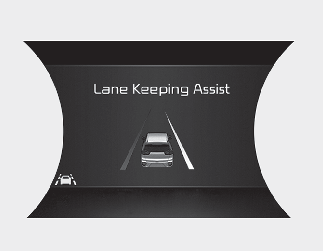

Driving Assist mode

This mode displays the state of:

Lane Departure Warning

Lane Keeping Assist

Smart Cruise Control

Lane Following Assist

Highway Driving Assist (if equipped)
Driver Attention Warning
Tire Pressure

* For more details, refer to each system information in More Details.

Tire pressure status

* For more details, refer to More Details.

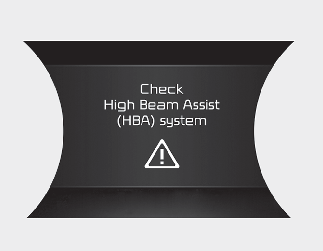

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction (if equipped)
Forward Collision-Avoidance Assist radar blocked (if equipped)
Blind-Spot Collision Warning malfunction (if equipped)
Blind-Spot Collision Warning radar blocked (if equipped)
Lamp malfunction
LED headlamp malfunction (if equipped)
High Beam Assist malfunction (if equipped)
Smart Cruise Control malfunction (if equipped)
Smart Cruise Control radar blocked (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display.

If the warning situation is resolved, the master warning light will be turned off and the Master Warning icon will disappear.

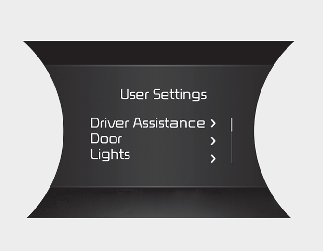

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

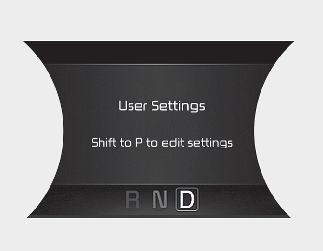

Shift to P to edit settings

This warning message appears if you try to adjust the User Settings while driving.

For your safety, change the User Settings after parking the vehicle, applying the parking brake and shifting to P (Park).

1. Driver Assistance

	Explanation
Lane Safety	The driver is able to choose one of two functions Lane Departure Warning/Lane Keeping Assist/Off * For more details, refer to More Details.
Driver Attention Warning	High sensitivity / Normal sensitivity / Off To adjust the sensitivity of the Driver Attention Warning. * For more details, refer to More Details.
SCC Reaction	Fast / Normal / Slow To adjust the sensitivity of Smart Cruise Control. * For more details, refer to More Details.
Leading Vehicle Departure Alert	To select the function. * For more details, refer to More Details.
Lane Following Assist	To activate or deactivate Lane Following Assist. * For more details, refer to the More Details
Highway Driving Assist	To select the function. * For more details, refer to More Details.
Highway Auto Curve Slowdown	To select the function. * For more details, refer to More Details.
Forward Collision-Avoidance Assist	To activate or deactivate Forward Collision-Avoidance Assist system. * For more details, refer to More Details.
Forward Collision Warning	To adjust the initial warning alert time for Forward Collision-Avoidance Assist. Early / Normal / Late * For more details, refer to More Details.
Blind-Spot Collision Warning Sound	To activate or deactivate the Blind- Spot Collision Warning sound. * For more details, refer to More Details.
Rear Cross-Traffic Collision Warning	To activate or deactivate the Rear Cross-Traffic Collision Warning function * For more details, refer to More Details.

* The information provided may differ depending on which functions are applicable to your vehicle.

2. Door

	Explanation
Automatically Lock	Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph). Enable on shift: All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position.(with the POWER button on, it is activated.)
Automatically Unlock	Disable: The auto door unlock operation will be canceled. Vehicle off: All doors will be automatically unlocked when the POWER button is set to the OFF position. On shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position.(with the POWER button on, it is activated.)
Two Press Unlock	Off: Two Press Unlock function will be deactivated. Therefore, all doors will unlock if the door unlock button is pressed. On: If this item is checked, the two press unlock will be activated. Press the door unlock button once to unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Lights

	Explanation
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Ambient Light Brightness (if equipped)	To select the brightness of the ambient light. (Level 1~4)
Ambient Light Color (if equipped)	To select the color of the ambient light. (White / Grey/ Blue/ Green/ Bronze/ Red)

Explanation

One Touch Turn Signal

Off: The one touch turn signal function will be deactivated.
3, 5, 7 Flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Ambient Light Brightness (if equipped)

To select the brightness of the ambient light. (Level 1~4)

Ambient Light Color (if equipped)

To select the color of the ambient light. (White / Grey/ Blue/ Green/ Bronze/ Red)

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Sound

	Explanation
Parking Distance Warning Volume (if equipped)	Level 1 / Level 2 / Level 3 To adjust the Parking Distance Warning system volume.

Explanation

Parking Distance Warning Volume (if equipped)

Level 1 / Level 2 / Level 3

To adjust the Parking Distance Warning system volume.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience (if equipped)

	Explanation
Seat Easy Access (if equipped)	Off: The seat easy access function will be deactivated. Normal/Extended When you turn off the vehicle, the driver's seat will automatically move rearward short (Normal) or long (Extended) for you to enter or exit the vehicle more comfortably. If you change the POWER button from OFF position to ACC or ON position, the driver's seat will return to the original position. * For more details, refer to More Details.
Rear Occupant Alert	If this item is checked, the Rear Occupant Alert (ROA) display will be activated.
Utility Mode	To activate the utility mode. When activated, electric devices in the vehicle is operated using the high voltage battery. * For more details, refer to More Details.
Welcome Mirror/Light (if equipped)	If this item is checked, the welcome mirror/light function will be activated.
Wireless charging system (if equipped)	If this item is checked, the wireless charging system function will be activated.
Wiper/Lights Display (if equipped)	If this item is checked, the wiper/lights display will be activated.
Auto rear wiper (in R) (if equipped)	If this item is checked, the Auto rear wiper function will be activated.
Smart Regeneration	If this item is checked the Smart Regeneration function will be activated. When activated, the regeneration level is adjusted automatically according to the current driving situation. * For more details, refer to More Details.
Icy Road Warning	If this item is checked, the Icy Road Warning function will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service Interval

	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The fuse switch is turned off.
The battery is discharged.

7. Other features

	Explanation
Aux. Battery Saver+	To activate or deactivate the Aux. Battery Saver+ function. When activated, the high voltage battery is used to keep the 12 V battery charged. * For more information, refer to More Details.
Energy Consumption Reset	Off: The average fuel economy will not reset automatically whenever recharging. After Ignition: The average fuel economy will reset automatically whenever it has passed 4 hours after turning OFF the vehicle. After Recharging: The average fuel economy will reset automatically when recharging. * For more details, refer to More Details.
Temperature Unit	°C / °F To select the temperature unit.
Tire Pressure Unit	psi / kPa / bar To select the tire pressure unit.

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Reset

	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.
