Replacing license plate lamp (Bulb type) bulb

1

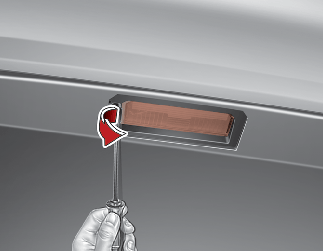

Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
2

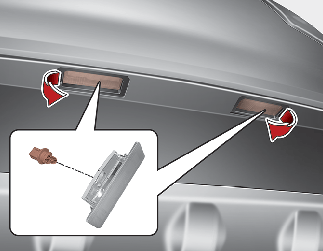

Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
3
Remove the bulb from bulb-socket by pulling it out.
4
Insert a new bulb by inserting it into the bulb-socket.
5
Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly.
6
Push the socket into the assembly and turn the socket clockwise.
7
Align the lens cover tabs with the lamp housing notches and snap the lens into place.
