Forward/Reverse Parking Distance Warning (PDW) (if equipped)

Forward/Reverse Parking Distance Warning assists the driver during movement of the vehicle by chiming if any object is sensed within the distance of 100 cm (40 in) in front and 120 cm (48 in) behind the vehicle.

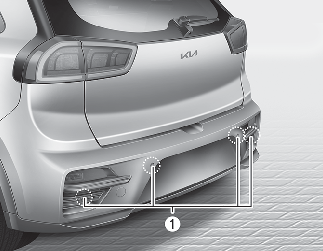

Rear

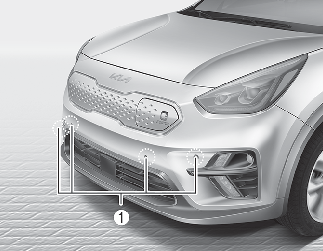

Front

This function is a supplemental function and it is not intended to nor does it replace the need for extreme care and attention of the driver.

The sensing range and objects detectable by the sensors (1) are limited. Whenever moving pay as much attention to what is in front and behind of you as you would in a vehicle without a Parking Distance Warning.

WARNING

Forward/Reverse Parking Distance Warning is a supplemental function only. The operation of Forward/Reverse Parking Distance Warning can be affected by several factors (including environmental conditions). It is the responsibility of the driver to always check the front and rear views before and while parking.

Operation of Forward/Reverse Parking Distance Warning

Operating condition

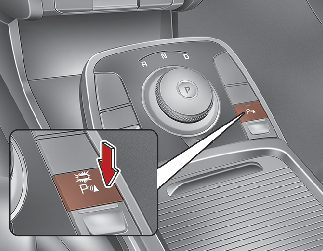

This function activates when the Parking Safety button is pressed with the POWER button ON.
The indicator of the Parking Safety button turns on automatically and activates Forward/Reverse Parking Distance Warning when you shifter dial in to the R (Reverse) position. It will turn off automatically when you drive above 20 km/h (12 mph).
The sensing distance while backing up is approximately 120 cm (48 in) when you are driving less than 10 km/h (6 mph).
The sensing distance while moving forward is approximately 100 cm (40 in) when you are driving less than 10 km/h (6 mph).
When more than two objects are sensed at the same time, the closest one will be recognized first.
The side sensors are activated when you shifter dial in to the R (Reverse) position.
If the vehicle speed is above 20 km/h (12 mph), the function automatically turns off. To activate again, push the button.

NOTICE

It may not operate if the vehicle's distance from the object is already less than approximately 25 cm (10 in) when the function is activated.

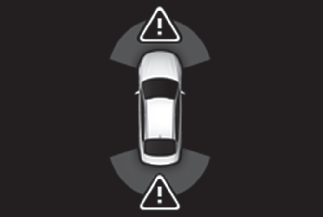

Type of warning indicator and sound

Distance from object		Warning indicator		Warning sound
Distance from object		When driving forward	When driving rearward	Warning sound
60 ~ 100 cm (24 ~ 40 in)	Front		-	Buzzer beeps intermittently
60 ~ 120 cm (24 ~ 48 in)	Rear	-		Buzzer beeps intermittently
30 ~ 60 cm (12 ~ 24 in)	Front			Buzzer beeps frequently
30 ~ 60 cm (12 ~ 24 in)	Rear	-		Buzzer beeps frequently
30 cm (12 in)	Front			Buzzer beeps continuously
30 cm (12 in)	Rear	-		Buzzer beeps continuously

NOTICE

The actual warning sound and indicator may differ from the illustration depending on the objects or sensor status.
Do not wash the vehicle's sensor with high pressure water.

NOTICE

This function can only sense objects within the range and location of the sensors; It cannot detect objects in other areas where sensors are not installed. Also, small or slim objects, such as poles or objects located between sensors may not be detected by the sensors.

Always visually check behind the vehicle when backing up.
Be sure to inform any drivers of the vehicle that may be unfamiliar with the function regarding the functions capabilities and limitations.

Forward/Reverse Parking Distance Warning not operation

Forward/Reverse Parking Distance Warning may not operate normally when:

Moisture is frozen to the sensor. (It will operate normally when moisture melts.)
Sensor is covered with foreign matter, such as snow or water, or the sensor cover is blocked. (It will operate normally when the material is removed or the sensor is no longer blocked.)
Sensor is stained with foreign matter such as snow or water. (Sensing range will return to normal when removed.)
The Parking Safety button is off.

There is a possibility of Forward/Reverse Parking Distance Warning malfunction when:

Driving on uneven road surfaces such as unpaved roads, gravel, bumps, or gradient.
Objects generating excessive noise such as vehicle horns, loud motorcycle engines, or truck air brakes can interfere with the sensor.
Heavy rain or water spray.
Wireless transmitters or mobile phones present near the sensor.
Sensor is covered with snow.

Detecting range may decrease when:

Outside air temperature is extremely hot or cold.
Undetectable objects smaller than 1 m (4 in) in height and narrower than 14 cm (6 in) in diameter.

The following objects may not be recognized by the sensor:

Sharp or slim objects such as ropes, chains or small poles.
Objects, which tend to absorb sensor frequency such as clothes, spongy material or snow.

NOTICE

The warning may not sound consistently depending on the speed and shapes of the objects detected.
Forward/Reverse Parking Distance Warning may malfunction if the vehicle bumper height or sensor installation has been modified. Any non-factory installed equipment or accessories may also interfere with the sensor performance.
Sensor may not recognize objects less than 30 cm (12 in) from the sensor, or it may sense an incorrect distance. Use with caution.
When the sensor is frozen or stained with snow or water, the sensor may be inoperative until the stains are removed using a soft cloth.
Do not push, scratch or strike the sensor with any hard objects that could damage the surface of the sensor. Sensor damage could occur.

NOTICE

This function can only sense objects within the range and location of the sensors, it cannot detect objects in other areas where sensors are not installed. Also, small or slim objects, or objects located between sensors may not be detected.

Always visually check in front and behind the vehicle when driving. Be sure to inform any drivers in the vehicle that may be unfamiliar with the function regarding the functions capabilities and limitations.

NOTICE

Pay close attention when the vehicle is driven close to objects on the road, particularly pedestrians, and especially children. Be aware that some objects may not be detected by the sensors, due to the objects distance, size or material, all of which can limit the effectiveness of the sensor. Always perform a visual inspection to make sure the vehicle is clear of all obstructions before moving the vehicle in any direction.

Self-diagnosis

When you shifter dial in to the R (Reverse) position and if one or more of the below occurs you may have a malfunction in Parking Distance Warning.

You don't hear an audible warning sound or if the buzzer sounds intermittently.
(blinks) is displayed. (if equipped)

If this occurs, we recommend that the system be checked by an authorized Kia dealer.

NOTICE

Your new vehicle warranty does not cover any accidents or damage to the vehicle or injuries to its occupants related to Forward/Reverse Parking Distance Warning. Always drive safely and cautiously.
