Outside rearview mirror

Your vehicle is equipped with both left-hand and right-hand outside rearview mirrors.

Be sure to adjust the mirror angles before driving.

The mirrors can be adjusted remotely with the remote switch. The mirror heads can be folded back to prevent damage during an automatic car wash or when passing through a narrow street.

CAUTION

Rearview mirrors

Do not scrape ice off the mirror face; this may damage the surface of the glass. If ice should restrict the movement of the mirror, do not force the mirror for adjustment. To remove ice, use a de-icer spray, a sponge or soft cloth with very warm water.

If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved spray de-icer (not radiator antifreeze) to release the frozen mechanism or move the vehicle to a warm place and allow the ice to melt.

WARNING

Mirror adjustment

Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control.

Adjusting the outside rearview mirrors

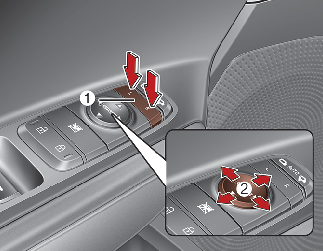

Adjusting the rearview mirrors:

1
Press either the L (Front left side) or R (Front right side) button (1) to select the rearview mirror you would like to adjust.
2
Use the mirror adjustment control (2) to position the selected mirror up, down, left or right.
3
After adjustment, put the button into neutral (center) position to prevent inadvertent adjustment.
CAUTION

  • The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.

  • Do not attempt to adjust the outside rearview mirror by hand. Doing so may damage the parts.

Folding the outside rearview mirror

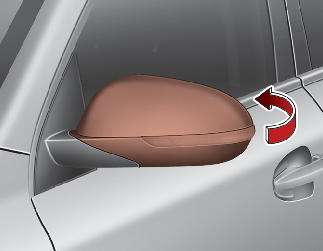

Manual type

1
To fold the outside rearview mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.

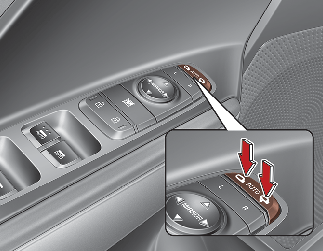

Electric type

1
The outside rearview mirror can be folded or unfolded by pressing the switch when the POWER button is in the ON position as below.

  • Left: The mirror will unfold.

  • Right: The mirror will fold.

  • Center (AUTO)

The mirror will fold or unfold automatically as follows:

  • The mirror will fold or unfold when the door is locked or unlocked by the smart key.

  • The mirror will fold or unfold when the door is locked or unlocked by the button on the outside door handle.

  • The mirror will unfold when you approach the vehicle (all doors closed and locked) with a smart key in possession. (if equipped)

CAUTION

The electric type outside rearview mirror operates even though the POWER button is in OFF position. However, to prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the POWER button is ON.

Do not fold an electric type outside rearview mirror by hand as this could cause motor failure.

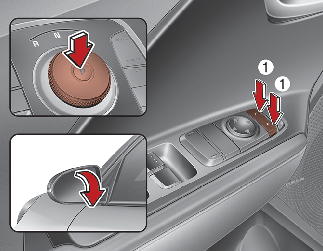

Reverse parking aid function (if equipped)

When you shift the reduction gear to the R (Reverse) position, the outside rearview mirror(s) will move downward to aid reverse parking.

According to the position of the outside rearview mirror switch (1), the outside rearview mirror(s) will operate as follows:

  • Left or Right : When the remote control outside rearview mirror switch is in the left or right position, both outside rearview mirrors will move downward.

  • Neutral : When neither switch is selected, the outside rearview mirrors will not move.

NOTICE

The outside rearview mirrors will automatically revert to their original positions under the following conditions:

  1. ENGINE START/STOP button is changed to the ACC or OFF position.

  2. Reduction gear is moved to any position except R.

  3. Remote control outside rearview mirror switch is placed in the middle position.

CAUTION

If outside rearview mirror is positioned at the outermost (left/right/bottom), the automatic mirror control function may not properly work while vehicle move backward.
