LCD display modes

The LCD display provides 5 modes. You can switch modes by pressing the Mode button.

	Mode
	Trip Computer	Turn By Turn (TBT)*	Driving Assist	User Settings	Master warning
Up/Down	Fuel Economy	Route Guidance	SCC*/ Lane Safety	Head-up display	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Accumulated Info	Destination Info	Driver Attention Warning*	Driver Assistance
	Drive Info		AWD*	Door
	Drive Info		AWD*	Lights
	Transmission Temperature		TPMS	Convenience
				Service Interval
				Other features
				Language
				Reset

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

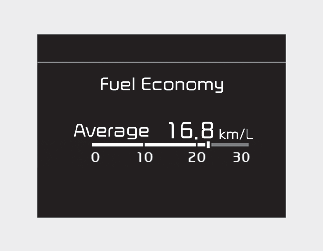

Trip computer mode

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information and vehicle speed.

* For more details, refer to More Details.

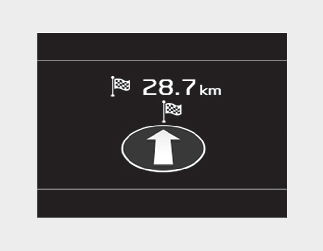

Turn By Turn (TBT) mode

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

Smart Cruise Control (if equipped)
Lane Safety system (if equipped)
Driver Attention Warning (if equipped)
AWD (if equipped)
Tire pressure

* For more details, refer to each system information in More Details.

Tire pressure status

* For more details, refer to More Details.

Master warning mode

This warning light informs the driver the following situations.

Forward Collision-Avoidance Assist malfunction (if equipped)
LED headlamp malfunction (if equipped)
Lamp malfunction
High Beam Assist malfunction (if equipped)

At this time, a Master Warning icon () will appear beside the User Settings icon (), on the LCD display. If the warning situation is solved, the master warning light will be turned off and the Master Warning icon will disappear.

Transmission temperature gauge (for dual clutch transmission)

This mode displays the transmission temperature.

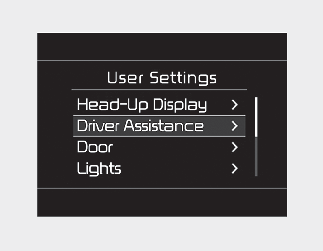

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lamps, etc.

Head-up display
Driver Assistance
Door
Lights
Sound
Convenience
Service Interval
Other features
Language
Reset

The information provided may differ depending on which functions are applicable to your vehicle.

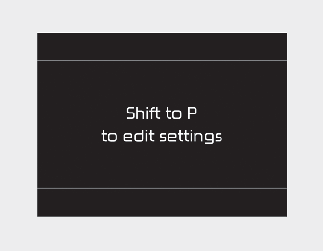

Shift to P to edit settings/Engage parking brake to edit settings

This warning message appears if you try to adjust the User Settings while driving.

Automatic transmission/Dual clutch Transmission/Intelligent variable transmission

For your safety, change the User Settings after parking the vehicle, applying the parking brake and moving the shift lever to P (Park).

Manual transmission

For your safety, change the User Settings after engaging the parking brake.

1. Head-Up Display (if equipped)

Items	Explanation
Display Height	Adjust the height (1~20) of the HUD image on the HUD screen.
Rotation	Adjust the degree (-5~+5) of the HUD rotation.
Brightness	Adjust the intensity (1~20) of the HUD brightness.
Speed Size	Small/Medium/Large
Speed Color	White/Orange/Green

2. Driver Assistance (if equipped)

Items	Explanation
Warning Timing	Normal/Late To select the Warning time
Warning Volume	High/Medium/ Low To select the Warning volume
Driver Attention Warning	Leading vehicle departure alert Driver Attention Warning To select the function. * For more details, refer to the More Details.
Forward Safety	To adjust Forward Collision-Avoidance Assist function. Active Assist / Warning Only / Off To select the functions.
Lane Safety	To adjust Lane Keeping Assist function. Lane Keeping Assist / Lane Departure Warning / Off To select the functions.
Blind-Spot Safety	To activate or deactivate Safe Exit Warning. Safe Exit Assist To adjust Blind-Spot Collision-Avoidance Assist. Active Assist / Warning Only / Off
Parking safety	To Activate or deactivate Rear Cross-Traffic Collision-Avoidance Assist. Rear Cross-Traffic Safety To select the functions.

* The information provided may differ depending on which functions are applicable to your vehicle.

3. Door

Items	Explanation
Auto Lock	Off: The auto door unlock operation will be canceled. Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph) Enable on shift (if equipped with Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with the engine ON, it is activated.).
Auto Unlock	Off: The auto door unlock operation will be canceled. Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position. On shift to P (if equipped with Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with the engine ON, it is activated.).

Items

Explanation

Auto Lock

Off: The auto door unlock operation will be canceled.
Enable on speed: All doors will be automatically locked when the vehicle speed exceeds 15 km/h (9.3 mph)
Enable on shift (if equipped with Automatic transmission): All doors will be automatically locked if the vehicle is shifted from the P (Park) position to the R (Reverse), N (Neutral), or D (Drive) position (with the engine ON, it is activated.).

Auto Unlock

Off: The auto door unlock operation will be canceled.
Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the ignition key is removed from the ignition switch or the ENGINE START/STOP button is set to the OFF position.
On shift to P (if equipped with Automatic transmission): All doors will be automatically unlocked if the gear is shifted to the P (Park) position (with the engine ON, it is activated.).

* The information provided may differ depending on which functions are applicable to your vehicle.

4. Lights

Items	Explanation
One Touch Turn Signal	Off: The one touch turn signal function will be deactivated. 3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly. * For more details, refer to More Details.
Headlight Delay	If this item is checked, the head lamp delay function will be activated.
High Beam Assist	If this item is checked, High Beam Assist will be activated.

Items

Explanation

One Touch Turn Signal

Off: The one touch turn signal function will be deactivated.
3, 5, 7 flashes: The turn signal indicator will blink 3, 5, or 7 times when the turn signal lever is moved slightly.

* For more details, refer to More Details.

Headlight Delay

If this item is checked, the head lamp delay function will be activated.

High Beam Assist

If this item is checked, High Beam Assist will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

5. Convenience

Items	Explanation
Welcome Mirror	On door unlock / On driver approach To select the welcome mirror function.
Wireless Charging System	If this item is checked, the wireless charging function will be activated.
Wiper/Lights Display	If this item is checked, the wiper/lights display will be activated.
Auto Rear Wiper (in R)	If this item is checked, the auto rear wiper will be activated.
Gear Position Pop-up	If this item is checked, gear position pops up on the lower left corner of the LCD on changing the gear.
Icy Road Warning	If this item is checked, the icy road warning will be activated.

* The information provided may differ depending on which functions are applicable to your vehicle.

6. Service interval

Items	Explanation
Enable Service Interval	If this item is checked, the Service Interval function will be activated.
Adjust Interval	If the service interval menu is activated, you may adjust the time and distance.
Reset	To reset the service interval function.

If the service interval is activated and the time and distance is adjusted, messages are displayed in the following situations each time the vehicle is turned on.

Service in: Displayed to inform the driver the remaining mileage and days to service.
Service required: Displayed when the mileage and days to service has been reached or passed.

If any of the following conditions occur, the mileage and number of days to service may be incorrect.

The battery cable is disconnected.
The battery is discharged.

7. Other features

Items	Explanation
Fuel Economy Auto Reset	Off: The average fuel economy will not reset. After ignition / After refueling: The average fuel economy will reset automatically after ignition/refueling.
Speedometer Unit	km/h or mphTo select the Speedometer unit.
Fuel Economy Unit	Km/L, L/100Km To select the Fuel economy unit. For more details, refer to More Details.
Temperature Unit	°C/°F To select the Temperature unit.
Torque Unit	N·m, lbf·ft To select the Torque Unit
Turbo Boost Pressure Unit	psi, kPa, barTo select the Turbo Boost Pressure Unit
Tire Pressure Unit	psi, kPa, bar To select the Tire Pressure Unit

* The information provided may differ depending on which functions are applicable to your vehicle.

8. Reset

Items	Explanation
Reset	You can reset the menus in the User Settings mode. All menus in the User Settings mode are reset to factory settings, except language and service interval.

9. Language

Items	Explanation
Language	To select language.
