Replacing engine compartment fuse

1
Turn the ignition switch and all other switches off.
2

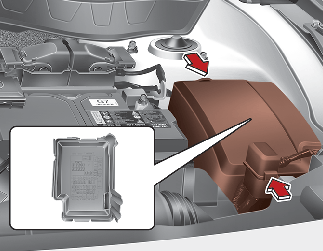

Remove the fuse panel cover by pressing the tab and pulling the cover up.
3
Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the engine compartment fuse panel.
4
Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, we recommend that you consult a professional workshop. Kia recommends to visit an authorized Kia dealer/service partner.
CAUTION

After checking the fuse panel in the engine compartment, securely install the fuse panel cover through the audible clicking sound.

If not, electrical failures may occur from water contact.

Main fuse (Multi fuse)

If the multi fuse is blown, it must be removed as follows:

1
Turn the ignition switch and all other switches off.
2
Disconnect the negative battery cable.
3
Remove the nuts shown in the picture above.
4
Replace the fuse with a new one of the same rating.
5
Reverse these steps to reinstall the multi fuse.
NOTICE

If the multi fuse is blown, consult a professional workshop. Kia recommends to consult an authorized Kia dealer/service partner.

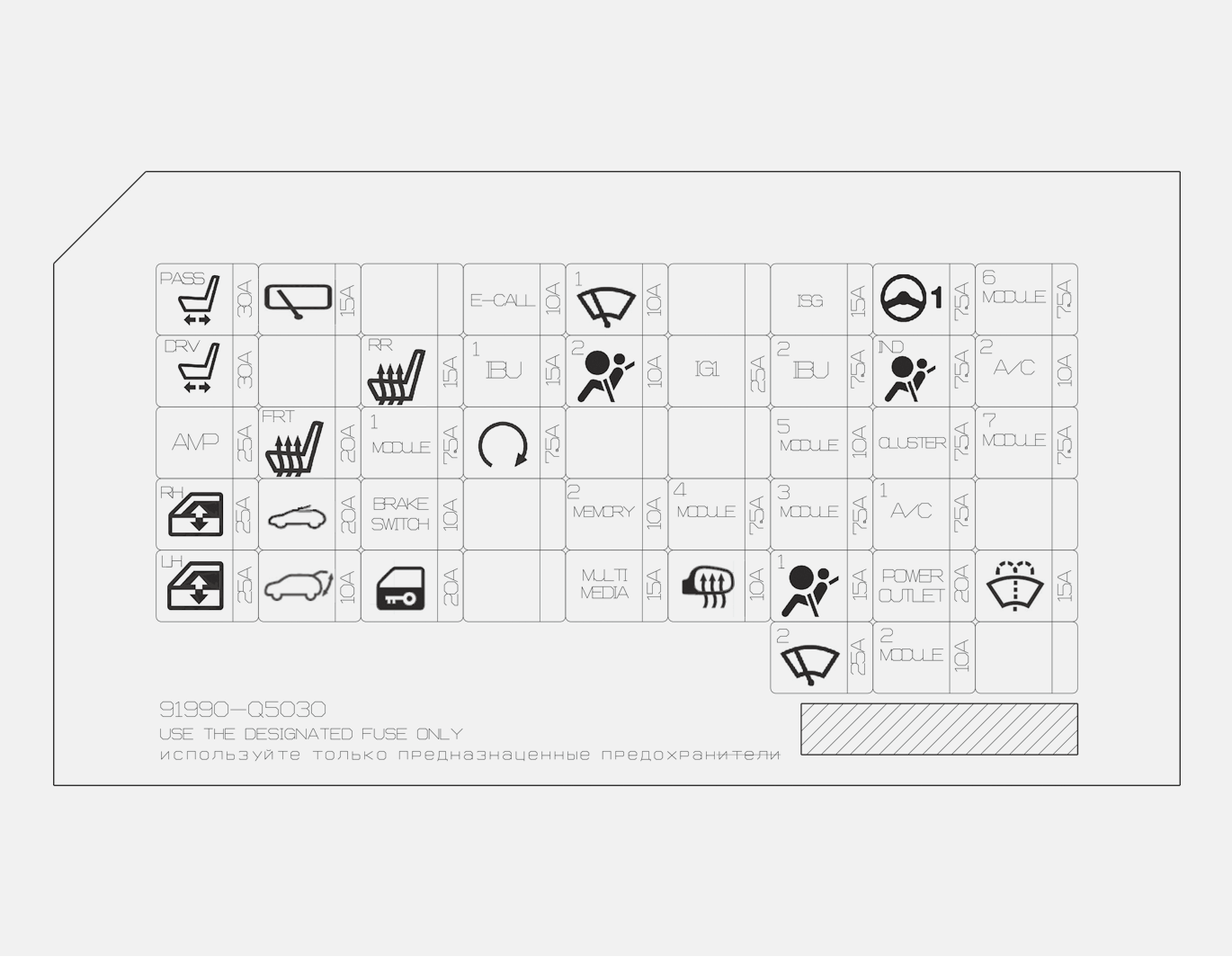

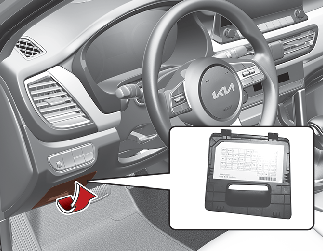

Driver's side fuse panel

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

ICU Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

P/SEAT (PASS)

30 A

Passenger Seat Manual Switch

P/SEAT (DRV)

30 A

Driver Seat Manual Switch

AMP

25 A

AMP (Amplifier)

P/WDW RH

25 A

Power Window RH Relay, Driver Safety Power Window Module

P/W‘DW LH

25 A

Power Window LH Relay, Driver Safety Power Window Module

WIPER RR

15 A

Rear Wiper Motor, ICM (Integrated Circuit Module) Relay Box (Rear Wiper Relay)

S/HEATER FRT

20 A

Front Air Ventilation Seat Module

Front Seat Warmer Module

SUNROOF

20 A

Sunroof Unit

TAIL GATE OPEN

10 A

Tail Gate Relay

S/HEATER RR

15 A

Rear Seat Warmer Module

MODULE 1

7.5 A

Hazard Switch, Data Link Connector, Passenger Power Window Switch, Power Window Main Switch, Crash Pad Switch, Key Solenoid

BRAKE SWITCH

10 A

Stop Lamp Switch, IBU (Integrated Body Control Unit)

DOOR LOCK

20 A

Door Lock Relay, Door Unlock Relay

E-CALL

10 A

E-Call Unit

IBU1

15 A

IBU (Integrated Body Control Unit)

START

7.5 A

[Manual Transmission & Without Smart Key] Ignition Lock & Clutch Switch

[With Burglar Alarm & Without Smart Key] ICM (Integrated Circuit Module) Relay Box (Burglar Alarm Relay)

[Automatic Transmission or DCT] Transmission Range Switch

[IVT] Position Switch

WIPER FRT1

10 A

IBU (Integrated Body Control Unit), ECM (Engine Control Module) / PCM (Power train Control Module)

AIR BAG 2

10 A

SRS (Supplemental Restraint System) Control Module

MEMORY 2

10 A

ICM (Integrated Circuit Module) Relay Box (Outside Mirror Folding/Unfolding Relay), Instrument Cluster, A/C Control Module, Head-Up Display

MULTIMEDIA

15 A

Audio, Audio/Video & Navigation Head Unit

IG1

25 A

PCB Block (Fuse Name - ECU5, ABS3, TCU2, SENSOR4)

MODULE 4

7.5 A

Forward Collision Avoidance Assist Unit, Clutch Sensor, IBU (Integrated Body Control Unit), Crash Pad Switch, 4WD ECM (Engine Control Module), Electronic Parking Brake Switch, Lane Keeping Assist-Line Unit

HAETED MIRROR

10 A

ECM (Engine Control Module), PCM (Power train Control Module), A/C Control Module, Driver/Passenger Power Outside Mirror

IBU2

7.5 A

IBU (Integrated Body Control Unit)

MODULE 5

10 A

Electro Chromic Mirror, Wireless Charger, Automatic Transmission Shift Lever Indicator, Console Switch LH, Audio, Audio/Video & Navigation Head Unit, A/C Control Module, Crash Pad Switch, AMP (Amplifier), Front Air Ventilation Seat Control Module, E-Call Unit, Head Lamp LH/RH, Rear Seat Warmer Module, Front Seat Warmer Module

MODULE 3

7.5 A

Stop Lamp Switch, Automatic Transmission Shift Lever

AIR BAG

15 A

SRS (Supplemental Restraint System) Control Module

FRT WIPER2

25 A

PCB Block (Front Wiper (Low) Relay), Front Wiper Motor

MDPS *1

7.5 A

MDPS (Motor Driven Power Steering) Unit

A/BAG IND

7.5 A

Overhead Console Lamp, Instrument Cluster

CLUSTER

7.5 A

Instrument Cluster, Head-Up Display

A/C1

7.5 A

Engine Room Junction Block (Blower Relay), A/C Control Module

POWER OUTLET

20 A

Front Power Outlet #2 (USB), Joint Connector (JM04)

MODULE 2

10 A

USB Charger, IBU (Integrated Body Control Unit), Audio, Audio/Video & Navigation Head Unit, Sound Mood Lamp, Front Power Outlet #2, AMP (Amplifier), Power Outside Mirror Switch, E-Call Unit, Driver/Passenger Door Mood Lamp, ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay)

MODULE 6

7.5 A

IBU (Integrated Body Control Unit)

A/C2

10 A

[Auto A/C] Blower Motor, Engine Room Junction Block (Blower Relay)

[Manual A/C] Blower Resistor, A/C Control Module

ISG

15 A

Sound Mood Lamp, Driver/Passenger Door Mood Lamp, Low DC-DC Converter, Blind-Spot Collision Warning Unit LH/RH, A/V & Navigation Head Unit, Audio, A/C Control Module, Head-Up display, Instrument Cluster

MODULE 7

7.5 A

Front Air Ventilation Seat Module/ Front Seat Warmer Module, Rear Seat Warmer Module, Front Deicer Box (Front Deicer LH/RH Relay)

WASHER

15 A

Multifunction Switch

*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

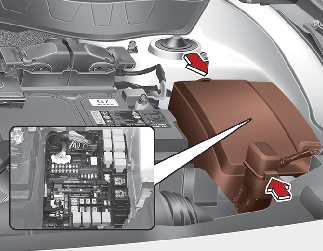

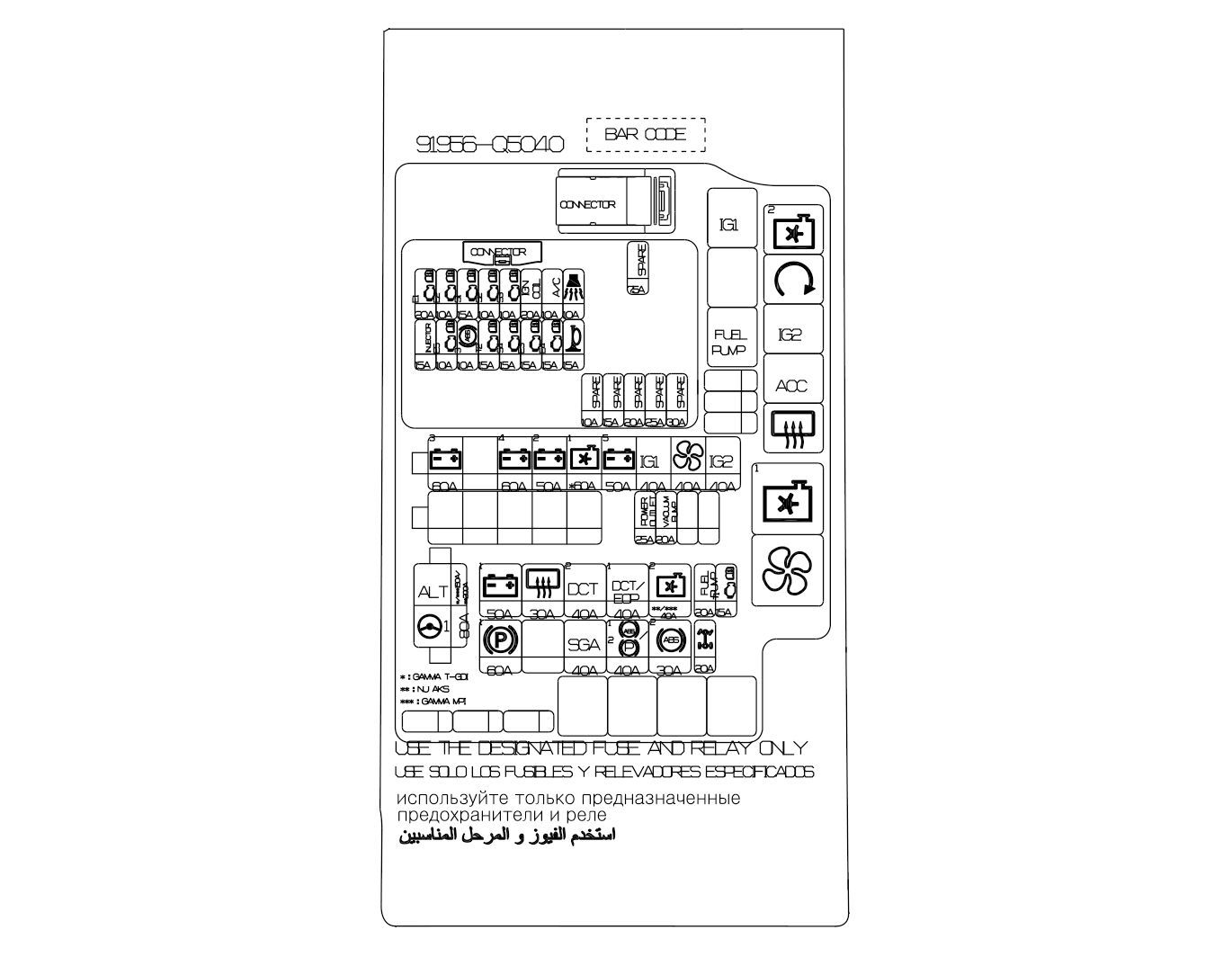

Engine compartment fuse panel

NOTICE

Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse panel in your vehicle, refer to the fuse panel label on the inside of the fuse cover. This diagram will provide you with the specific information for your vehicles.

Refer to the following table for a description of the fuse.

Engine Room Junction Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

ALT

150 A

Alternator, Engine Room Junction Block (Fuse Name - EPB, SGA, ABS1/EPB2, ABS2, 4WD)

200 A

MDPS *1

80 A

MDPS (Motor Driven Power Steering) Unit

B+3

60 A

ICU Junction Block (IPS1, IPS2, IPS3, IPS7, IPS10, IPS13, IPS15, IPS16, IPS18, IPS20)

B+4

60 A

ICU Junction Block (Fuse Name - P/SEAT (PASS), P/SEAT (DRV), AMP, P/WDW RH, P/WDW LH, S/HEATER FRT, SUNROOF, TAIL GATE OPEN)

B+2

50 A

ICU Junction Block (IPS4, IPS5, IPS6, IPS8, IPS9, IPS11, IPS12, IPS14, IPS17)

COOLING FAN1

60 A

Engine Room Junction Block (Cooling Fan 1 Relay)

B+5

50 A

PCB Block (Main Relay, Fuse Name - A/C, B/ALARM HORN, ECU3, ECU4, HORN)

IG1

40 A

[With Smart Key] Engine Room Junction Block (IG1 Relay, ACC Relay)

[Without Smart Key] Ignition Switch

BLOWER

40 A

Engine Room Junction Block (Blower Relay)

IG2

40 A

[With Smart Key] Engine Room Junction Block (Start Relay, IG2 Relay)

[Without Smart Key] Engine Room Junction Block (Start Relay), Ignition Switch

POWER OUTLET

25 A

ICM (Integrated Circuit Module) Relay Box (Power Outlet Relay)

VACUUM PUMP

20 A

[Gasoline engine] 1.6 T-GDi Vacuum Pump

B+1

30 A

ICU Junction Block(Long Term Load Auto Cut Relay,Fuse Name - S/HEATER RR, MODULE 1, BRAKE SWITCH, DOOR LOCK, IBU1, AIR BAG 2)

REAR HEATED

30 A

Engine Room Junction Block (Rear Defogger Relay)

DCT2

40 A

TCM (Transmission Control Module)

DCT1

40 A

TCM (Transmission Control Module)

COOLING FAN2

40 A

[(Gasoline engine) 1.6 MPI/2.0 MPI] Engine Room Junction Block (Cooling Fan 1 Relay)

FUEL PUMP

20 A

Engine Room Junction Block (Rear Defogger Relay, Cooling Fan 1 Relay), Ignition Switch

TCU1

15 A

ICU Junction Block (Long Term Load Auto Cut Relay, Fuse Name - MODULE 1, BRAKE SWITCH, IBU1)

EPB

60 A

ICU Junction Block (IPS4, IPS5, IPS6, IPS8, IPS9, IPS11, IPS12, IPS17)

SGA

40 A

ICU Junction Block (IPS1, IPS2, IPS3, IPS7, IPS10, IPS13, IPS16, IPS18, E61IPS20)

ABS1

40 A

[ABS] Anti-lock Brake System Control Module

[ESP] Electronic Stability Program Control Module

EPB2

ABS2

30 A

[ABS] Anti-lock Brake System Control Module

[ESP] Electronic Stability Program Control Module

4WD

20 A

4WD ECM (Engine Control Module)

*1: MDPS (Motor Driven Power Steering) is the same as EPS (Electric Power Steering).

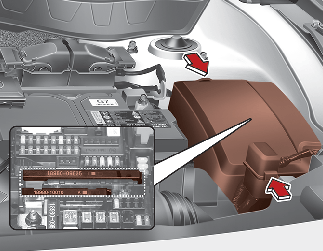

PCB Block

Fuse Name

Symbol

Fuse rating

Circuit Protected

ECU1

20 A

[(Gasoline engine) 1.6 MPI] PCM (Power train Control Module) / ECM (Engine Control Module) [(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)

ECU2

10 A

[(Gasoline engine) 1.6 MPI] PCM (Power train Control Module) / ECM (Engine Control Module) [(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)

SENSOR1

15 A

Oxygen Sensor (Up/Down)

SENSOR2

10 A

[All] Oil Control Valve #1, Oil Control Valve #2, Engine Room Junction Block (Cooling Fan 1 Relay), PCB Block (A/C Relay)

[Gasoline engine 1.6 MPI] Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Engine Room Junction Block (Cooling Fan 2 Relay)[Gasoline engine 1.6 T-GDi] Engine Coolant Temperature Sensor, RCV (Recirculation Valve Control) Control Solenoid Valve

[Gasoline engine 2.0 MPI] Variable Intake Solenoid Valve, Purge Control Solenoid Valve, Electronic Thermostat, Oil Control Valve #3, Engine Room Junction Block (Cooling Fan 2 Relay)

SENSOR3

10 A

Engine Room Junction Block (Fuel Pump Relay)

IGN COIL

20 A

Ignition Coil #1~#4

A/C

10 A

A/C Relay

B/ALARM HORN

10 A

Burglar Alarm Horn Relay

INJECTOR

15 A

[(Gasoline engine) 1.6 MPI/2.0 MPI] Injector #1~#4

ECU5

10 A

[(Gasoline engine) 1.6 MPI] PCM (Power train Control Module) /ECM (Engine Control Module) [(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)

ABS3

10 A

ABS (Anti-lock Brake System) / ESP (Electronic Stability Program) Control Module, Data Link Connector

TCU2

15 A

[(Gasoline engine) 1.6 MPI] Transmission Range Switch [(Gasoline engine) 1.6 T-GDi] Transmission Range Switch, TCM (Transmission Control Module) [(Gasoline engine) 2.0 MPI] Position Switch

SENSOR4

15 A

[Gamma 1.6 T-GDI] Vacuum Pump

ECU3

15 A

[(Gasoline engine) 1.6 MPI] PCM (Power train Control Module)/ ECM (Engine Control Module) [(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline engine) 2.0 MPI] PCM (Power train Control Module)

ECU4

15 A

[(Gasoline engine) 1.6 MPI / Auto Transmission] PCM (Power train Control Module) [(Gasoline engine) 1.6 T-GDi] ECM (Engine Control Module) [(Gasoline engine) 2.0 MPI] PCM (Power train Control Module

HORN

15 A

Horn Relay

Refer to the following table for the relay type.

Relay Name

Symbol

Type

Main Relay

MINI

IG1 Relay

MICRO

Fuel Pump Relay

MICRO

Cooling Fan 2 Relay

MICRO

Start Relay

MICRO

IG2 Relay

MICRO

ACC Relay

MICRO

Rear Defogger Relay

MICRO

Cooling Fan 1 Relay

MICRO

Blower Relay

MICRO
