Forward Collision-Avoidance Assist is designed to assist driver in highly dangerous driving situation and has not responsibility to all kind of situations.

Forward Collision-Avoidance Assist detects driving situations through radar signals and camera recognition and Forward Collision-Avoidance Assist may not operate normally in driving situation beyond radar signals and camera recognition performance. The driver must pay careful attention in the following situations where Forward Collision-Avoidance Assist operation may not be operated properly.

The sensor may be limited when:

• Starting engine or rebooting front camera function wouldn't operate for 15 seconds.

• The camera is blocked with a foreign object or debris.

• The camera lens is contaminated due to tinted, filmed or coated windshield, damaged glass, or stuck of foreign matter (sticker, bug, etc.) on the glass.

• Inclement weather such as heavy rain or snow obscures the field of view of the camera.

• There is interference by electromagnetic waves.

• The camera sensor recognition is limited.

• The vehicle in front is too small to be detected. (for example a motor cycle or bicycle etc.)

• The camera does not recognize the entire vehicle in front.

• The vehicle in front is an oversize vehicle or trailer that is too big to be detected by the camera recognition function. (for example a tractor trailer, etc.)

• The camera's field of view is not well illuminated. (either too dark or too much reflection or too much backlight that obscures the field of view.)

• The vehicle in front does not have their rear lights properly turned ON.

• The outside brightness changes suddenly. (for example when entering or exiting a tunnel.)

• When light coming from a street light or an oncoming vehicle is reflected on a wet road surface such as a puddle in the road.

• When backlight is projected in the direction of the vehicle. (including oposite vehicle headlights.)

• The field of view in front is obstructed by sun glare or head light of oncoming vehicle.

• The windshield glass is fogged up; a clear view of the road is obstructed.

• The vehicle in front is driving erratically The vehicle is on unpaved or uneven rough surfaces, or road with sudden gradient changes.

• In case of a vehicle in front is special vehicle, truck and trailer, etc. that contains a irregular form of luggage.

• The vehicle is severely shaken.

• In case of camera sensor recognition is in a marginal state.

• In case of be towed by a trailer or other vehicle.

• In case of interference caused by other electromagnetic waves.

• In case of a vehicle in front is driving erratically.

• In case of a vehicle in front has extremely high ground clearance.

• The vehicle drives inside a building, such as a basement parking lot.

• The camera is damaged.

• The brightness outside is too low such as when the headlamps are not on at night or the vehicle is going through a tunnel.

• The shadow is on the road by a median strip, trees, etc.

• The vehicle drives through a tollgate.

• The rear part of the vehicle in front is not normally visible. (the vehicle turns in other direction or the vehicle is overturned.)

• The adverse road conditions cause excessive vehicle vibrations While driving.

• The sensor recognition changes suddenly when passing over a speed bump.

• The vehicle in front is moving vertically to the driving direction.

• The vehicle in front is stopped vertically.

• The vehicle in front is driving towards your vehicle or reversing.

• You are on a roundabout and the vehicle in front circles.

The sensor may be limited when:

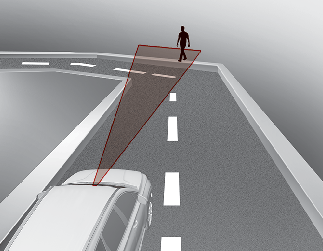

• The pedestrian is not fully detected by the camera recognition function, for example,

  if the pedestrian is leaning over or is not fully walking upright.

• The pedestrian is moving very quickly or appears abruptly in the camera detection area.

• The pedestrian is wearing clothing that easily blends into the background, making it difficult to be detected by the camera.

• The outside lighting is too bright (e.g. when driving in bright sunlight or in sun glare) or too dark. (e.g. when driving on a dark rural road at night)

• It is difficult to detect and distinguish the pedestrian from other objects in the surroundings, for example, when there is a group of pedestrians or a large crowd.

• There is an item similar to a person's body structure.

• The pedestrian is small.

• The pedestrian has impaired mobility.

• When the pedestrian suddenly interrupts in front of the vehicle

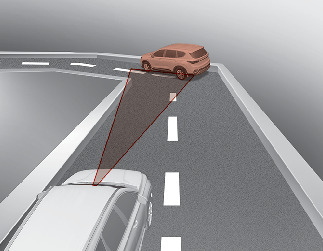

The performance of Forward Collision-Avoidance Assist may be limited when driving on a curved road.

On curved roads, the other vehicle on the same lane is not recognized and Forward Collision-Avoidance Assist's performance may be degraded. This may result in unnecessary alarm or braking or no alarm or braking when necessary.

Also, in certain instances the front view camera recognition function may not detect the vehicle traveling on a curved road.

In these cases, the driver must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Forward Collision-Avoidance Assist may recognize a vehicle in the next lane when driving on a curved road.

In this case, the function may unnecessarily alarm the driver and apply the brake.

Always pay attention to road and driving conditions, while driving. If necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

Also, when necessary depress the accelerator pedal to prevent the function from unnecessarily decelerating your vehicle.

Check to be sure that the road conditions permit safe operation of Forward Collision-Avoidance Assist.

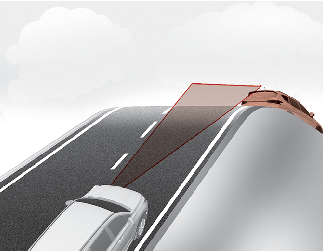

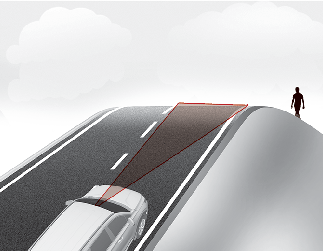

The performance of Forward Collision-Avoidance Assist decreases while driving upward or downward on a slope, not recognizing the vehicle in front in the same lane. It may unnecessarily produce the warning message and the warning alarm, or it may not produce the warning message and the warning alarm at all.

When Forward Collision-Avoidance Assist suddenly recognizes the vehicle in front while passing over a slope, you may experience sharp deceleration.

Always keep your eyes forward while driving upward or downward on a slope, and, if necessary, depress the brake pedal to reduce your driving speed in order to maintain distance.

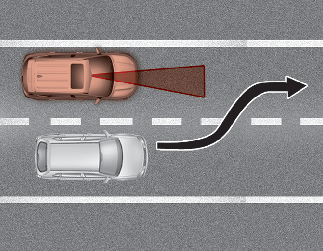

When a vehicle changes lanes in front of you, Forward Collision-Avoidance Assist may not immediately detect the vehicle, especially if the vehicle changes lanes abruptly. In this case, you must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

When driving in stop-and-go traffic, and a stopped vehicle in front of you merges out of the lane, Forward Collision-Avoidance Assist may not immediately detect the new vehicle that is now in front of you. In this case, you must maintain a safe braking distance, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain a safe distance.

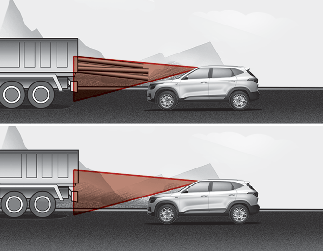

If the vehicle in front of you has cargo that extends rearward from the cab, or when the vehicle in front of you has higher ground clearance, additional special attention is required. Forward Collision-Avoidance Assist may not be able to detect the cargo extending from the vehicle. In these instances, you must maintain a safe braking distance from the rearmost object, and if necessary, depress the brake pedal to reduce your driving speed in order to maintain distance.
