Connecting AC charger
If you try to charge while the shift gear is not placed in P (Park), it will automatically move to P (Park).
However, charge the battery only when the shift gear is placed in P for safety reasons.

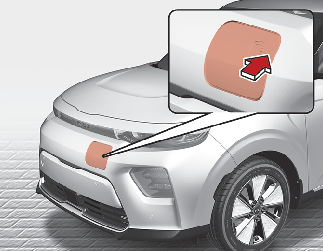

If you cannot open the charging door due to freezing weather, tap lightly or remove any ice near the charging door. Do not try to forcibly open the charging door. The charging door may be broken if it is forcibly opened.
The charging door will unlock when Driver's door is unlocked.
To unlock charging door:
-
Press the unlock button on your smart key
-
Press the Central Door unlock button on armrest trim of driver's door
-
Pull the driver's inside door handle outward
The charging door will lock when all doors are locked
To lock charging door:
-
Press the lock button on your smart key
-
Press the Central Door lock button on armrest trim of driver's door
* All doors will automatically lock after the vehicle speed exceeds 15 km/h (9.3 mph). Charging door is also locked when vehicle speed exceeds 15 km/h (9.3 mph).

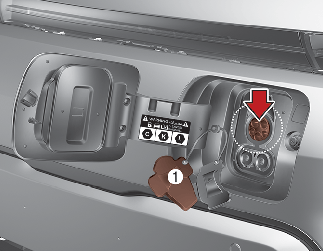

In order to connect the charging connector, release the door lock to unlatch the charging connector lock system.
If not, the charging connector and the vehicle's charging inlet may be damaged.

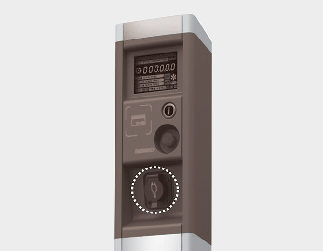

* For more information about how to charge and how to disconnect, please refer to the manual of each AC charger.
* The shape of the charging connector may be different for each manufacturer.
* Charging Connector Always / While charging / Do not lock Mode
When the charging connector and the charging inlet are connected, you can choose the mode at the USM. The charging connector will be locked at a different time depending on the selected mode.
-
Always Mode: When the charging connector is properly connected, the charging connector will be automatically locked.
-
While charging Mode: When the charging connector is properly connected and charging is initiated, the charging connector will be locked.
-
Do not lock Mode: he locking device for charging inlet is kept unlocked regardless of charging status.
For more information, refer to the More Details.

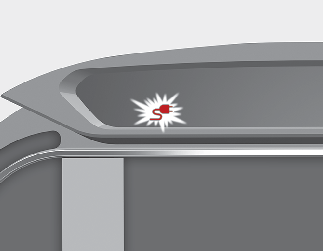

Charging does not occur when the charging indicator lamp is OFF.
When the charging connector and charging plug are not connected properly, reconnect the charging cable to charge.
-
You can start charging when the START/STOP button is in the OFF position and the shift gear is in P (Park). After charging has started, you can use electrical components such as the radio by pressing the START/STOP button to the ACC or ON position.
-
If you move the shift gear from P (Park) to R (Rear), N (Neutral), D (Drive), charging stops immediately. If you want to start charging again, place the shift gear to P (Park) and press the START/STOP button to the OFF position. Unplug and reconnect the charging cable to start charging again.
-
During charging, you cannot move the shift gear from P (parking) to other positions.

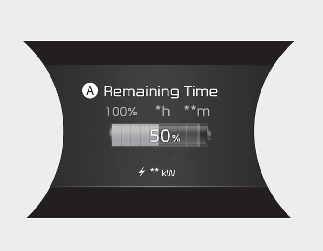

A: Remaining Time
* The remaining charging time in the LCD image may differ from actual charging time.
If you open the driver seat door while charging, the estimated charging time is also displayed on the instrument cluster for about 1 minute.
When reserved charging is set, the estimated charging time is displayed as "--".
If air conditioning / remote air conditioning control is set, the estimated time to charge is displayed as "-".
Depending on the condition and durability of the high voltage battery, charger specifications, and ambient temperature, the time required for charging the battery may vary.
In order to disconnect the charging connector, release the door lock to unlatch the charging connector lock, if the charge auto lock has not been activate.
If not, the charging connector and the vehicle's charging inlet may be damaged.
