Replacing turn signal lamp

1
Open the liftgate.
2

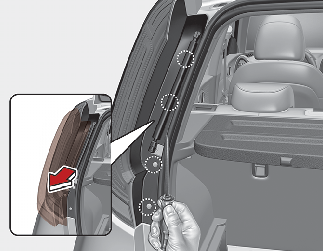

Loosen the lamp assembly retaining screws with a screwdriver.
3
Remove the rear combination lamp assembly from the body of the vehicle.
4

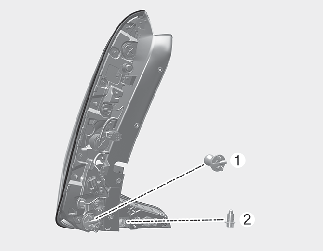

Remove the socket from the assembly by turning the socket counterclockwise until the tabs on the socket align with the slots on the assembly.
5
Remove the bulb from the socket by pressing it in and rotating it counterclockwise until the tabs on the bulb align with the slots in the socket.
6
Insert a new bulb by inserting it into the socket and rotating it until it locks into place.
7
Install the socket in the assembly by aligning the tabs on the socket with the slots in the assembly and turning the socket clockwise.
8
Reinstall the lamp assembly to the body of the vehicle.
