Inspecting and replacing climate control air filter
When you replace the climate control air filter, replace it performing the following procedure, and be careful to avoid damaging other components.
1
Open the glove box.
2

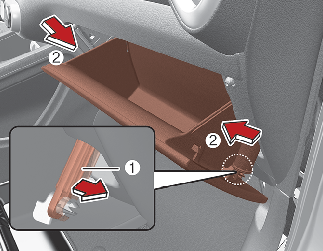

With the glove box open, pull the support strap (1).
3

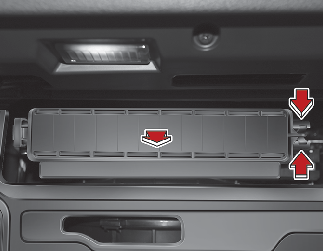

Remove the climate control air filter case by pulling out right side of the cover.
4

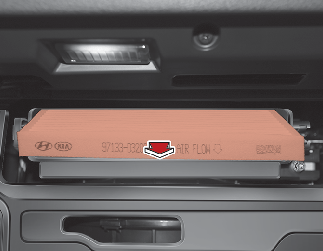

Replace the climate control air filter.
5
Reassemble in the reverse order of disassembly.
When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
