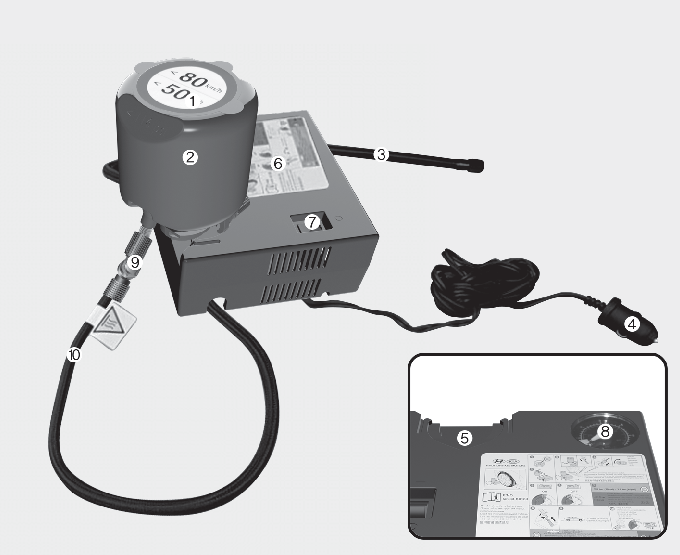

Components of the Tire Mobility Kit

Connectors, cable and connection hose are stored in the compressor housing.

  1. Speed restriction label

  2. Sealant bottle and label with speed restriction

  3. Filling hose from sealant bottle to wheel

  4. Connectors and cable for the power outlet direct connection

  5. Holder for the sealant bottle

  6. Compressor

  7. On/off switch

  8. Pressure gauge for displaying the tire inflation pressure

  9. Button for reducing tire inflation pressure

  10. Hose to connect compressor and sealant bottle or compressor and wheel

NOTICE

The sealant container and insert hose (3) cannot be reused.

CAUTION

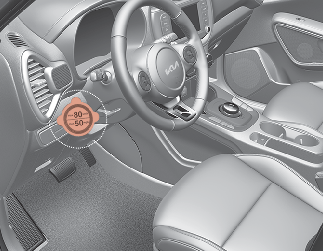

Before using the tire repair kit, please read carefully the instruction attached on the sealant bottle. Detach the speed limit label on the sealant case and put it on a highly visible place. Always drive within the speed limit. Be sure to check the expiration date on the sealant bottle.
