Checking the tire inflation pressure

After driving briefly so as to distribute the sealant throughout the inside of the tire, you should check the tire inflation pressure.
1
After driving approximately 7~10 km (4~6 miles or about 10 min), stop at a safe location.
2

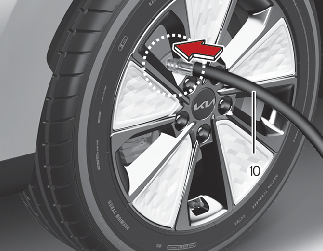

Connect connection hose (10) of the compressor directly to the tire valve.
3
Connect between compressor and the vehicle power outlet using the cable and connectors.
4
Adjust the tire inflation pressure to the cold tire recommended pressure as indicated on the vehicle's placard or tire inflation pressure label located on the driver's side center pillar outer panel. (In this owner's manual, refer to More Details)

  • To increase the inflation pressure, switch on the compressor, position I. To check the current inflation pressure setting, briefly switch off the compressor.

    NOTICE

    The pressure gauge may show higher than actual reading when the compressor is running. To get an accurate tire reading, the compressor needs to be turned off.

    CAUTION

    Do not let the compressor run for more than 10 minutes; otherwise, the device may overheat and be damaged.

  • To reduce the inflation pressure, press the button (9) on the compressor.

    CAUTION

    Tire pressure sensor

    When you use the Tire Mobility Kit including sealant not approved by Kia, the tire pressure sensors may be damaged by sealant. The sealant on the tire pressure sensor and wheel should be removed when you replace the tire with a new one and inspect the tire pressure sensors at an authorized dealer.
