Using the Tire Mobility Kit

Carefully follow below steps.

1

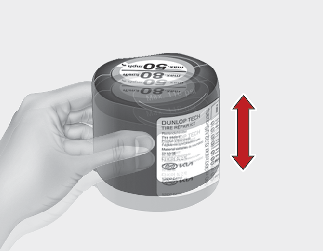

Shake the sealant bottle.
2

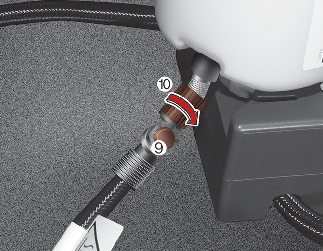

Screw connection hose (10) onto the connector of the sealant bottle.
3
Ensure that button (9) on the compressor is not pressed.
4

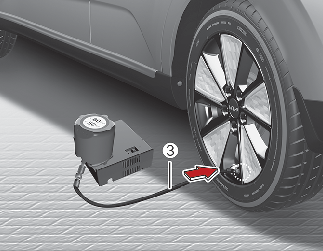

Unscrew the valve cap from the valve of the defective wheel and screw filling hose (3) of the sealant bottle onto the valve.
5

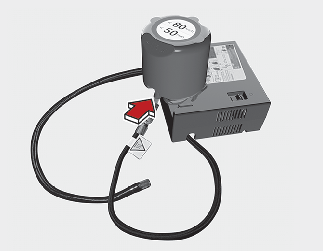

Insert the sealant bottle into the housing of the compressor (5) so that the bottle is upright.
NOTICE

If a visible foreign object has punctured the tire, do not remove it before using Tire Mobility Kit.

NOTICE

If the sealant is injected when the tire air pressure injection valve and sealant injection hose are not fully interlocked, the sealant may overflow and clog the valve.

6
Ensure that the compressor is switched off, position 0.
7

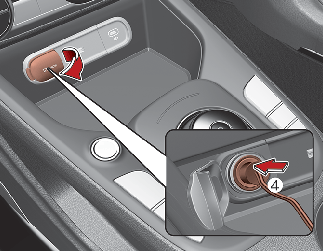

Connect the compressor to the vehicle power outlet (4) using the cable and connectors.
8
With the START/STOP button ON, switch on the compressor and let it run for approximately 5~7 minutes to fill the sealant up to cold tire recommended pressure. (refer to More Details). Be careful not to overinflate the tire and stay away from the tire when filling it.
WARNING

Tire pressure

Do not attempt to drive your vehicle if the tire pressure is below 200 kPa (29 psi). This could result in an accident due to sudden tire failure.

9
Switch off the compressor.
10

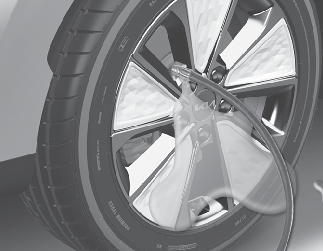

Detach the hoses from the sealant bottle connector and from the tire valve.
11
Return the Tire Mobility Kit to its storage location in the vehicle.
WARNING

Carbon monoxide

Carbon monoxide poisoning and suffocation is possible if the vehicle is left running in a poorly ventilated or unventilated location (such as inside a building).
