Head-Up Display (HUD) (if equipped)

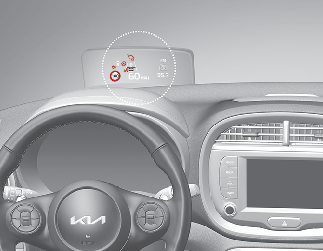

The Head-Up Display (HUD) is a transparent display which projects a shadow of some information of the instrument cluster and navigation on the HUD screen.

HUD screen operation

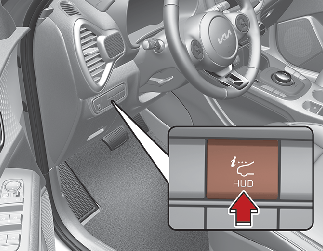

The hidden screen will go up when you press the screen operation switch on the left side of the lower part of crash pad and if you press the switch again, the screen will return to its original hidden position.

  • The Head-Up Display closes automatically when the door is locked with the smart key in the vehicle OFF state.

  • For smart key vehicles, the lock/unlock button on the outside handle of the front door automatically closes the Head-Up Display when the door is locked.

  • If you do not lock the door in the vehicle OFF state, the Head-Up Display closes automatically after about 5 minutes.

  • The head-Up Display image on the HUD screen may not be visible when:

    • Sitting posture is bad.

    • Wearing a polarized sunglasses.

    • There is an object on the cover of the HUD.

    • Driving on a wet road.

    • Lighting is turned on inside the vehicle.

    • Any light comes from the outside.

    • Wearing inadequate glasses for your eyesight.

  • If the HUD image is not shown well, adjust the height, rotation or illumination of the HUD in the cluster.

  • When the HUD needs inspection or repair, have your vehicle inspected or repaired by an authorized Kia dealer.

WARNING

Head-Up Display

For safety, be sure to adjust the settings when vehicle stopped.

CAUTION

  • Do not place any accessories on the Head-Up Display shutter. It might fall into Head-Up Display and can damage to Head-Up Display.

  • Do not attach stickers or accessories to the Head-Up Display and the crash pad.

  • Do not manually adjust the shutter and combiner. The images may not be visible due to fingerprints. Excessive external force during operation may cause damage.

  • Do not place any objects near the Head-Up Display. Interference with the object during operation may damage it.

  • Do not place any objects around the Head-Up Display. It might enter the narrow gap of the cover and affects operation.

  • Do not place any liquids around the Head-Up Display. Water or other liquids can break when it flows into the Head-Up Display.

  • Do not expose the combiner to strong light. The combiner may be deformed.

  • Do not use organic solvents, detergents or abrasive cloths to clean the Head-Up Display. Wipe it off with a soft cloth. Do not strongly wipe Head-Up Display shutter. it might be damage

  • For safety, be sure to adjust the settings when vehicle stopped.

  • When opening, closing and height adjusting the Head-Up Display, noise may be generated by the motor and gear

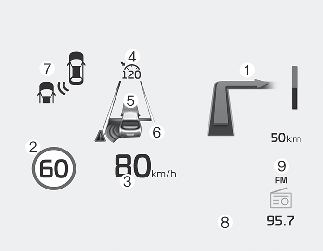

HUD Information

  1. Turn By Turn navigation information

  2. Road signs

  3. Speedometer

  4. SCC setting speed

  5. SCC Vehicle Distance information

  6. Lane Safety information

  7. Blind-Spot Safety information

  8. Warning lights (Low fuel)

  9. AV mode information

* Road Sings and Turn By Turn navigation information are available depending on the region.

HUD setting

On the LCD display, you can change the HUD settings as follows.

  1. Display height

  2. Rotation

  3. Brightness

  4. Content selection

* For more details, refer to More Details

WARNING

The Head-Up Display is a supplemental feature. Do not solely rely on this feature. Always pay attention to road and traffic conditions.
