Replacing motor compartment fuse

1
Turn the START/STOP button and all other switches off.
2

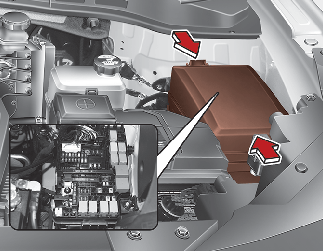

Remove the fuse panel cover by pressing the tab and pulling the cover up.
3
Check the removed fuse; replace it if it is blown. To remove or insert the fuse, use the fuse puller in the motor compartment fuse panel.
4
Push in a new fuse of the same rating, and make sure it fits tightly in the clips. If it fits loosely, consult an authorized Kia dealer.
CAUTION

Always securely install the fuse panel cover in the motor compartment to protect against electrical failure which may occur from water contact. Listen for the audible clicking sound to ensure fuse panel cover is securely fastened.

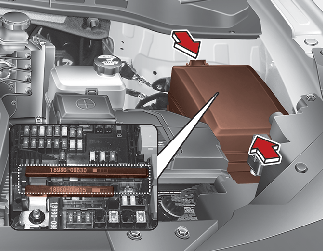

Multi fuse

If the multi fuse is blown, it must be removed as follows:

  1. Turn the ignition switch and all other switches off.

  2. Disconnect the negative battery cable.

  3. Remove the nuts shown in the picture above.

  4. Replace the fuse with a new one of the same rating.

  5. Reverse these steps to reinstall the multi fuse.

NOTICE

Do not disassemble nor assemble the multi fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an authorized Kia dealer

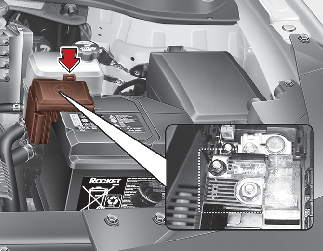

Main fuse

If the multi fuse is blown, it must be removed as follows:

  1. Turn the ignition switch and all other switches off.

  2. Disconnect the negative battery cable.

  3. Remove the nuts shown in the picture above.

  4. Replace the fuse with a new one of the same rating.

  5. Reverse these steps to reinstall the main fuse.

NOTICE

Do not disassemble nor assemble the main fuse when it is secured with nuts and bolts. Incorrect or partial assembly torque may cause a fire. Have the vehicle checked by an authorized Kia dealer

NOTICE

The electronic system may not function correctly even when the motor compartment and internal fuse box's individual fuses are not disconnected. In such case the cause of the problem may be disconnection of the main fuse (BFT type), which is located inside the positive battery terminal (+) cap.

Since the main fuse is designed more intricately than other parts, have the vehicle checked by an authorized Kia dealer.
