Parking/View button

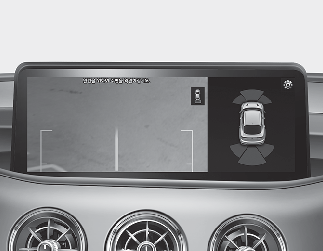

• Press the Parking/View button (1) to turn Rear View Monitor on or off.

Operating conditions

• If the gear is shifted to R (Reverse), whilst rear view is displayed on the screen.

Off conditions

• The rear view will not be turned off with the gear in R (Reverse).

• If pressing the Parking/View button (1) when the gear is in P (Parking) position with the video is displayed, the video will be turned off.

Operating conditions

Rear View Monitor will maintain when the following conditions are satisfied:

• Shifting the gear from R (Reverse) to N (Neutral) or D (Drive).

Off conditions

• The rear view will turn off when vehicle speed is above 10 km/h (6 mph).

• The rear view will turn off when the Parking/View button (1) is pressed.

• If the gear is shifted to p (park), Rear View Monitor is turned off.

Operating conditions

• The ENGINE START/STOP button is ON.

• The rear view monitor button (1) is pressed when gearshift status is D (Drive), N (Neutral).

Off conditions

• Driving view button is pressed again.

• One of the infotainment system button is pressed.

• If the gear is shifted to p (park), Rear View Monitor is turned off.

When operating

• If the gear is shifted to R (Reverse), whilst Driving Rear View is displayed on the screen, the screen will change to rear view.

• An icon () will be displayed in the upper right of the infotainment system screen to indicate Driving Rear View function is supported.
