Automatic climate control system

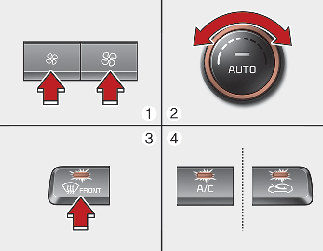

To defog inside windscreen

Set the fan speed to the desired position.
Select desired temperature.
Press the defroster button ().
The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.

If the air conditioning and outside (fresh) air position are not selected automatically, adjust the corresponding button manually. If the position is selected, lower fan speed is adjusted to a higher fan speed.

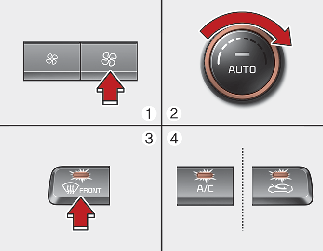

To defrost outside windscreen

Set the fan speed to the highest position.
Set the temperature to the extreme hot (HI) position.
Press the defroster button ().
The air conditioning will turn on according to the detected ambient temperature and outside (fresh) air position will be selected automatically.
