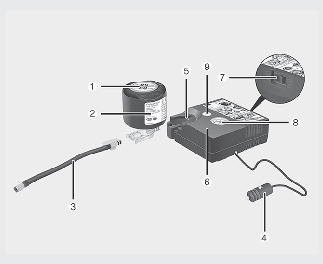

Components of the Tyre Mobility Kit (TMK)

  1. Speed restriction label

  2. Sealant bottle and label with speed restriction

  3. Filling hose from sealant bottle to wheel

  4. Connectors and cable for the power outlet direct connection

  5. Holder for the sealant bottle

  6. Compressor

  7. On/off switch

  8. Pressure gauge for displaying the tyre inflation pressure

  9. Button for reducing tyre inflation pressure

Connectors and cable are stored in the compressor housing.

WARNING

Expired sealant

Do not use the tyre sealant after the sealant has expired (i.e. pasted the expiration date on the sealant container). This can increase the risk of tyre failure.

WARNING

Sealant

  • Keep out of reach of children.

  • Avoid contact with eyes.

  • Do not swallow.

NOTICE

The sealant container and insert hose (3) cannot be reused. Purchase an extra after use.
