[Without ISG] Fuse - MULTI MEDIA 3, MULTI MEDIA 2 [With ISG] Low DC-DC Converter (Audio)

SRS (Supplemental Restraint System) Control Module

Overhead Console Lamp, Centre Room Lamp, Room Lamp, Vanity Lamp Switch Left Handle side/Right Handle side, Luggage Lamp Left Handle side/Right Handle side, Glove Box Lamp, Driver/Passenger/Door Mood Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp

IBU, Stop Lamp Switch

Instrument Cluster, Head-Up Display

Electronic Auto Transmission Shift Lever (IG1)

IBU (IG1)

[With ISG] Instrument Cluster, Head-Up Display, Air Conditioner Switch, Wireless Charger, [With ISG] Blind-Spot Collision Warning, [Without ISG] SVM (Surround View Monitor)

Audio

Air Conditioner Control Module, Air Conditioner Switch, Security Indicator, Head-Up Display [Without ISG] Instrument Cluster

IBU (B+)

Electronic Auto Transmission Shift Lever (B+)

Instrument Cluster, Passenger/Rear Seat Belt Reminder Indigator

IBU (B+)

Driver Door Module, Driver/Passenger Power Outside Mirror

MTS (Mozen Telematics System) E-Call Module

IBU (IG2)

Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch

Door Lock Relay, Door Unlock Relay, Dead Lock Relay

Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

Tail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch

IBU (B+ (ESCL)), Rain Sensor

Front Power Outlet

Cooling Fan Controller (BLDC Motor)

IBU, ECS Unit, AWD (All Wheel Drive) ECM (Electronic Control Module), Smart Cruise Control Module, Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), SVM (Surround View Monitor), Crash Pad Switch, Steering Angle Sensor, Steering Tilt & Telescopic Module, Lane Keeping Assist, Electronic Control Engine Mounting Module

Steering Tilt & Telescopic Module

Driver Air Lumbar Control Unit

Data Link Connector, Console Switch (Upper), Driver/Passenger/Door Mood Lamp

Air Conditioner Control Module, Air Conditioner Switch, Audio, Head Lamp Left Handle side/Right Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier), MTS (Mozen Telematics System) E-Call Module, Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, Wireless Charger

Sunroof Control Unit (Glass)

Passenger Power Window Module, Rear Power Window Module Right Handle side

Front/Rear USB Charger

Multifunction Switch

MDPS (Motor Driven Power Steering) Unit (R-MDPS (Motor Driven Power Steering))

Driver Integrated memory system Control Module, Driver Manual Switch

Passenger Manual Switch

Driver Power Window Module, Rear Power Window Module Left Handle side

IBU, Around View Monitor, Audio, AMP (Amplifier), MTS (Mozen Telematics System) ECall Module, Low DC-DC Converter (Audio/AMP (Amplifier)), Electronic Auto Transmission Shift Lever (SBW (Shift By Wire)), Engine Room Junction Block (Power Outlet Relay)

Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)

Head Lamp Left Handle side/Right Handle side, AFS Control Unit, Auto Head Lamp Levelling Device Module

Start Relay

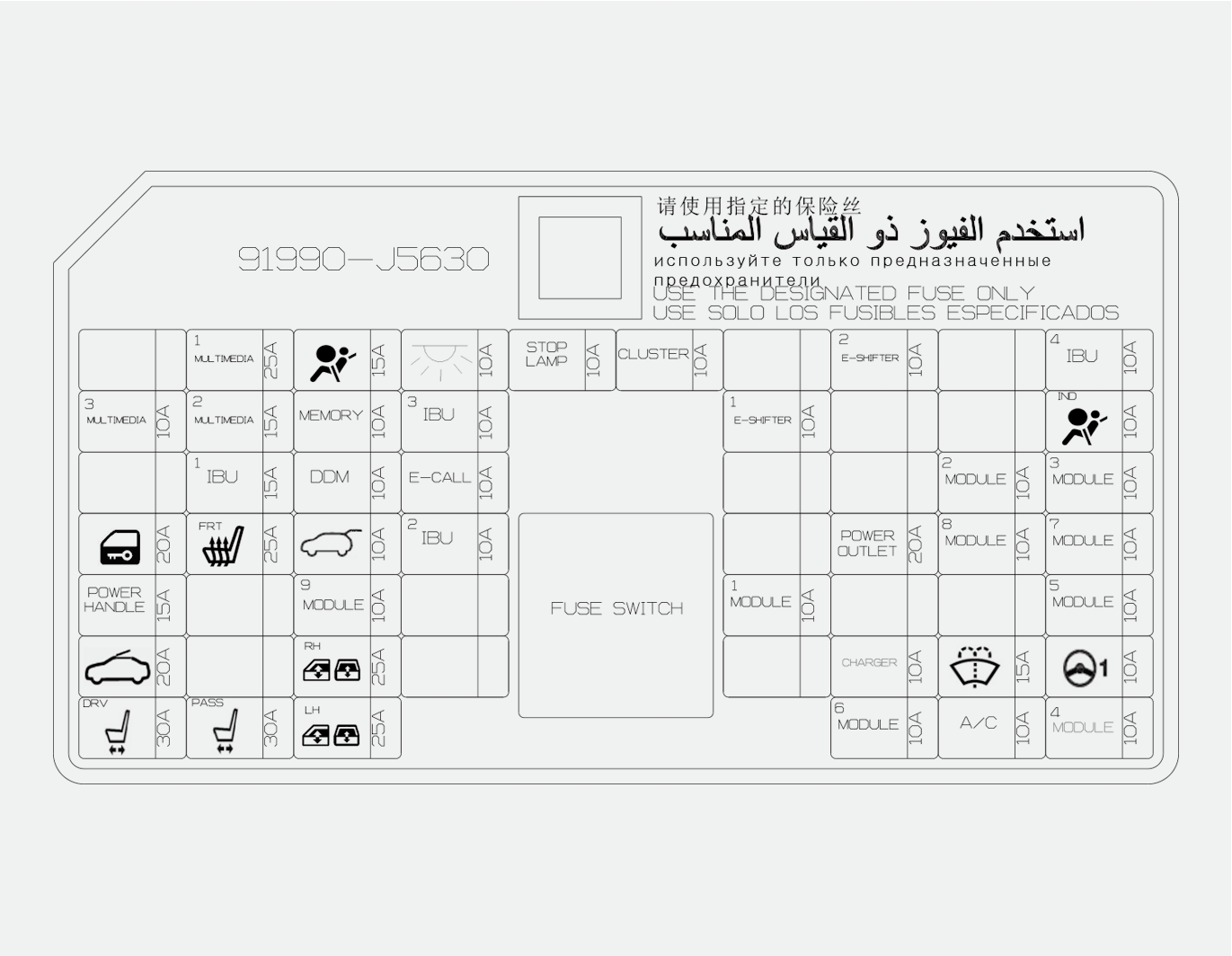

Instrument Panel Junction Block (Fuse - STOP LAMP, Leak Current Autocut Device Fuse – ROOM LAMP / MULTI MEDIA3 / MULTI MEDIA2 / MEMORY1 / IBU3 / DRIVER DOOR MODULE / E-CALL)

Instrument Panel Junction Block (Fuse - DOOR LOCK / POWER HANDLE / SUNROOF /DRIVER POWER SEAT / PASSENGER POWER SEAT)

Instrument Panel Junction Block (Fuse - SEAT HEATER / TAIL GATE / MODULE9 / PASSENGER POWER WINDOW / DRIVER POWER WINDOW)

[With ISG] Electric Oil Pump

ESC (Electronic Stability Control) Control Module

ESC (Electronic Stability Control) Control Module

Blower Relay

Power Tail Gate Module

MDPS (Motor Driven Power Steering) Unit

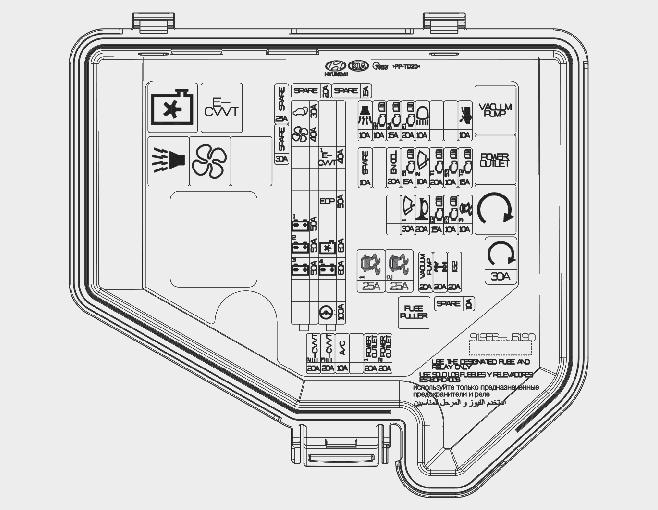

Engine Control Relay, Fuse - HORN / WIPER1 / H/BEAM H/LAMP / B/ALARM)

[DC (Direct Current) Motor] Cooling Fan Relay

[(Petrol) 2.0 FR T-GDi] E-CVVT Relay

Vacuum Pump Relay

AWD (All Wheel Drive) ECM (Electronic Control Module)

IG2 Relay

Rear Power Outlet

Front Power Outlet

Air Conditioner Control Module

[(Petrol) 2.0 FR T-GDi]

ECM (Engine Control Module)

[(Petrol) 2.0 FR T-GDi]

ECM (Engine Control Module)

ESC (Electronic Stability Control) Control Module, Multipurpose Check Connector

ECM (Engine Control Module)

ECM (Engine Control Module)

Horn Relay

Wiper Power Relay

TCM (Transmission Control Module), [With ISG] Engine Oil Pump

[(Petrol) 2.0 FR T-GDi, (Petrol) 3.3 T-GDi] Oxygen Sensor (UP/DOWN)

TCM (Transmission Control Module)

Wiper Power Relay

[(Petrol) 2.0 FR T-GDi] Ignition Coil #1/#2/#3/#4[(Petrol) 3.3 T-GDi] Ignition Coil #1/#2/#3/#4/#5/#6

Active Bonnet Lift Control Module

Head Lamp (High) Relay

ECM (Engine Control Module)

[(Petrol) 2.0 FR T-GDi, (Petrol) 3.3 T-GDi] VACUUM PUMP RELAY, VACCUM SW

[(Petrol) 2.0 FR T-GDi, (Petrol) 3.3 T-GDi] Cooling Fan Relay , Oil Control Valve, Purge Control Solenoid Valve, RCV (Recirculation Valve Control), Electric Thermostat

[(Petrol) 3.3 T-GDi] Oil Pressure Solenoid Valve, ACTIVE VARIABLE EXHAUST VALVE

Burglar Alarm Horn Relay

ECS (Electronic Control Suspension) Unit

Rear Seat Warmer Control Module

Air Conditioner Switch, Driver/Passenger Power Outside Mirror

Fuel Pump Relay

Rear Door Lock Actuator Left Handle side/Right Handle side (RHD)

Rear Heated Relay

AMP (Amplifier) (MOBIS/PREMIUM)

[Without ISG] Fuse - AMP2[With ISG] Low DC-DC Converter (AMP (Amplifier))

IG1 Relay

ACC Relay

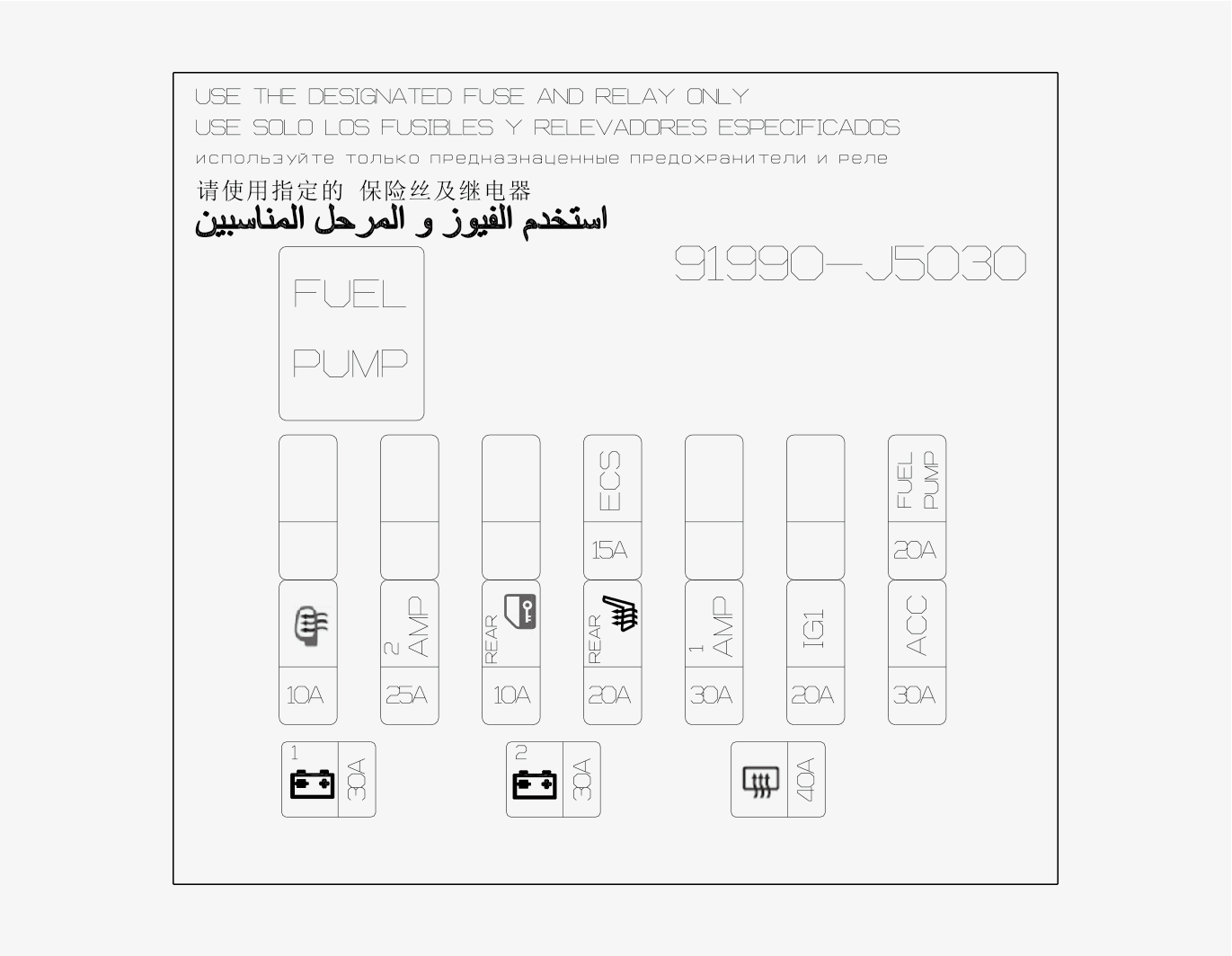

Rear Sub Junction Block (Fuse - FUEL PUMP / REAR HEATED/ AMP1)

Rear Sub Junction Block (DCU Relay, Fuse - ECS1 / REAR S/HEAT / IG1)

Engine Room Junction Block (Power Outlet Relay), Fuse -START / ECU2 / TCU1)

Battery Sensor
