Power windows
The ENGINE START/STOP button must be in the ON position for power windows to operate.
Each door has a power window switch that controls the door's window. The driver has a power window lock button which can block the operation of rear passenger windows. The power windows can be operated for approximately 30 seconds after the ENGINE START/STOP button turned to the ACC or OFF position. However, if the front doors are opened, the power windows cannot be operated even within the 30 second period.
The driver’s door has a master power window switch that controls all the windows in the vehicle.
If the window cannot be close because it is blocked by objects, remove the objects and close the window.
Whilst driving with the rear windows down or with the sunroof (if equipped) in an open (or partially open position), your vehicle may demonstrate a wind buffeting or pulsation noise. This noise is a normal occurrence and can be reduced or eliminated by taking the following actions. If the noise occurs with one or both of the rear windows down, partially lower both front windows approximately 3 cm (1 inch). If you experience the noise with the sunroof open, slightly reduce the size of the sunroof opening.
Do not install any accessories in the area of windows. It may impact jam protection.
Window opening and closing

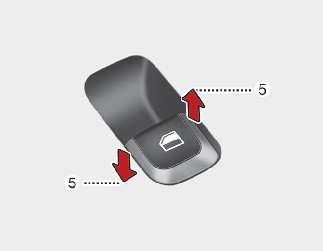

Type A
To open or close a window, press down or pull up the front portion of the corresponding switch to the first detent position (5).

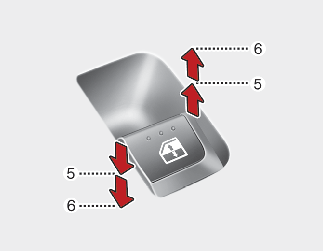

Type B - Auto up/down window (if equipped)
Pressing or pulling up the power window switch momentarily to the second detent position (6) completely lowers or raises the window even when the switch is released. To stop the window at the desired position whilst the window is in operation, pull up or press down and release the switch.
If the power window does not operate normally, the automatic power window system must be reset as follows:
-
Place the ENGINE START/STOP button to the ON position.
-
Close the window and continue pulling up the power window witch for at least 1 second after the window is completely closed.

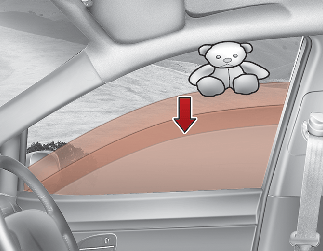

If the upward movement of the window is blocked by an object or part of the body, the window will detect the resistance and will stop upward movement. The window will then lower approximately 30 cm (11.8 in) to allow the object to be cleared.
If the window detects the resistancewhilst the power window switch ispulled up continuously, the windowwill stop upward movement then lower approximately 2.5 cm (1 in).
And if the power window switch is pulled up continuously again within 5 seconds after the window is lowered by the automatic window reversal feature, the automatic window reversal will not operate.
The automatic reverse feature for the window is only active when the “auto up” feature is used by fully pulling up the switch. The automatic reverse feature will not operate if the window is raised using the halfway position on the power window switch.
Always check for obstructions before raising any window to avoid injuries or vehicle damage. If an object less than 4 mm (0.16 in) in diameter is caught between the window glass and the upper window channel, the automatic reverse window may not detect the resistance and will not stop and reverse direction.
The automatic reverse feature doesn’t active whilst resetting power window system.
Make sure body parts or other objects are safely out of the way before closing the windows to avoid injuries or vehicle damage.

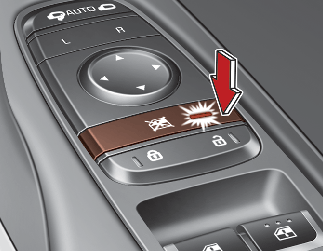

Power window lock button
The driver can disable the power window switches on the rear passengers’ doors by pressing the power window lock button to the lock position (pressed).
When the power window lock button is pressed:
-
The driver’s master control can operate all passenger`s power windows.
-
The front passenger’s control can operate the front passenger’s power window.
-
The rear passengers’ control cannot operate the rear passenger’s power window.
-
To prevent possible damage to the power window system, do not open or close two windows or more at the same time. This will also ensure the longevity of the fuse.
-
Never try to operate the main switch on the driver's door and the individual door window switch in opposite directions at the same time. If this is done, the window will stop and cannot be opened or closed.
Remote window closing/opening system (if equipped)
You can still control the windows movement with the engine turned off.
-

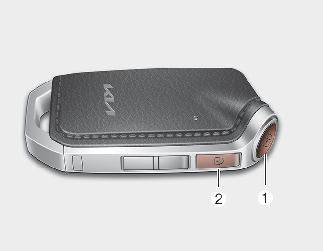

Press the door lock button (1) for more than 3 seconds. The window moves up after the doors are locked, as long as you press the door lock button (1).
The window movement stops, when you release the door lock button (1).
-
Press the door unlock button (2) for more than 3 seconds. The window moves down after the doors are unlocked, as long as you press the door unlock button (2).
The window movement stops, when you release the door unlock button (2).
-
The remote window closing/opening function may abruptly stop, when you move away from your vehicle during operation. Stay in close proximity from your vehicle, whilst monitoring the window movement.
-
One of the windows may stop operating, when the window is interrupted by certain force. However, the other windows will keep operating.
Thus, you should make sure that all windows are closed.
-
Be careful when using the remote window opening function, as the doors will be unlocked.
Windows
-
NEVER leave the keys in your vehicle with unsupervised children, when the engine is running.
-
NEVER leave any child and animal unattended in the vehicle. Even very young children may inadvertently cause the vehicle to move, entangle themselves in the windows, or otherwise injure themselves or others.
-
Always double check to make sure all arms, hands, head and other obstructions are safely out of the way before closing a window.
-
Do not allow children play with the power windows. Keep the driver’s door power window lock button in the LOCK position (pressed). Serious injury can result from unintentional window operation by the child.
-
Do not extend heads or any limbs outside the window whilst the vehicle is in motion.
